Ruijie RG-E130GE Dubai

The Ruijie RG-E130GE Dubai Power Injector provides excellent short circuit protection and enables intelligent automated PD recognition. The Power Injector detects if the connected device is a PD to eliminate all the possible harms a PSE appliance would cause to a non-PoE device.

Ask for Quote & Get Low Price

Description

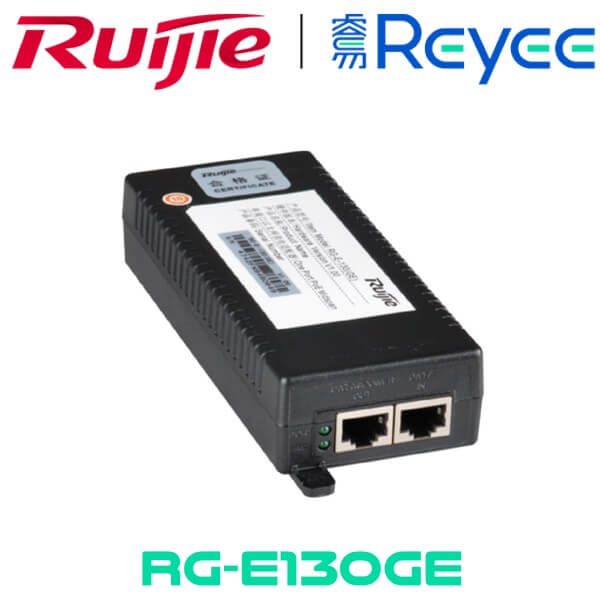

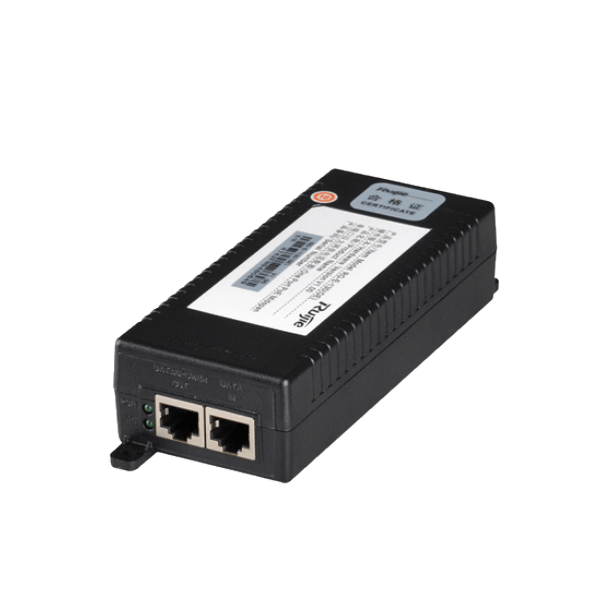

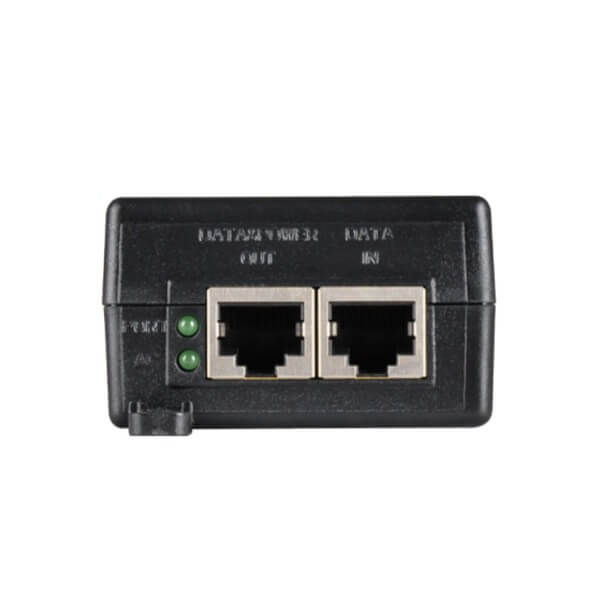

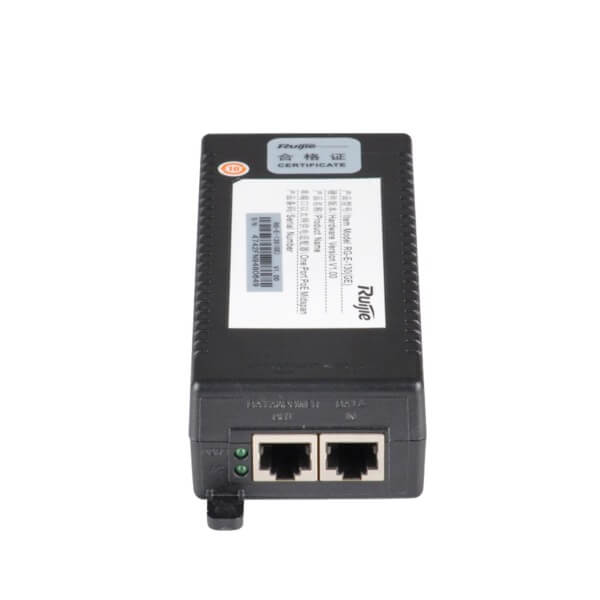

Ruijie RG-E130GE Power Injector Dubai

The Ruijie RG-E130GE Dubai Power Injector is designed to power remote management products such as wireless access points, SOHO switches, IP phones, webcams and so on. The Power Injector, compliants with IEEE 802.3at standard, are PSE adapters supporting such products with PoE (Power over Ethernet) power supply. All the RJ45 ports on the Power Injector support auto MDI/MDIX cable recognition and the power injectors sustain power transmission via cable for up to 100m, enabling flexible deployment of powered devices (PDs). The Ruijie RG-E130GE Dubai Power Injector provides excellent short circuit protection and enables intelligent automated PD recognition. The Power Injector detects if the connected device is a PD to eliminate all the possible harms a PSE appliance would cause to a non-PoE device. The modern and exquisite Ruijie Power Injector offers maximized investment cost savings and are an ideal for an extensive range of network settings such as large-scale campus, enterprise, public hotspots, sports stadium, etc.

Features

  • Up to 30W of Power
  • IEEE 802.3at Compliant with 2-event Classification
  • Compatible with all IEEE 802.3af standards
  • Safe: Low Power Devices Receive Only the Power They Need
  • Safe and Reliable Power to WLAN Access Points
  • Automatic Detection and Protection of Non–standard Ethernet Terminals
  • Supports 10/100/1000Base-T Applications
  • Compact Design Fits Easily in WLAN Access Point Installations

Technical Specs

Model

RG-E-130 (GE)

Ports

  • 10/100/1000 Mbps Copper port (RJ-45)
  • 10/100/1000 Mbps PoE Copper port (RJ-45)

Power

  • Output Power Voltage : 53V DC
  • Output Port Power : 30W

Dimensions
(W x H x L) (mm)

87.9 x 51.3 x166

Weight

350g

Temperature

  • Operating Temperature : 0°C to 45°C
  • Storage Temperature : -30°C to 85°C

Humidity

Operating Humidity : 5% to 90% (non-condensing)

Storage Humidity : 5% to 95% (non-condensing)

Altitude

Operating Altitude : 0 to 3048m

Regulatory Compliance

IEEE 802.3at, IEEE 802.3af
RoHS Compliant, WEEE Compliant, CE

MTBF

>100,000 hours @25°C

Electromagnetic Emission & Immunity Safety Approval

FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
