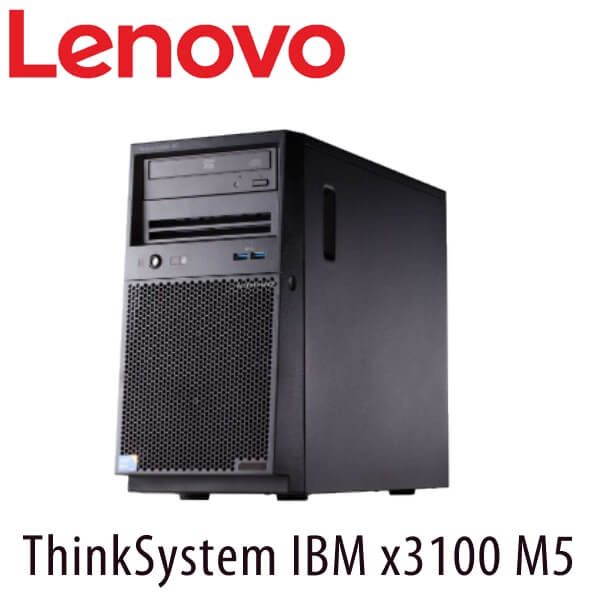

Lenovo IBM System x3100 M5 Server Dubai

IBM System x3100 M5 Server Dubai legacy tower server details for UAE businesses

You may still have an IBM System x3100 M5 sitting in a back office, clinic server room, school admin block, warehouse IT corner or small branch cabinet. It may still be running Active Directory, file shares, a billing application, a local database or CCTV utility software. Nobody looks at it until users cannot log in, shared folders stop opening, or the accounts team says the application is down.

That is the real buying moment for this model in Dubai. Not a fresh greenfield project. Not a new data centre rack. Usually, somebody has searched “IBM x3100 M5 Dubai” because the machine is already there, already old, and now needs parts, service, inspection, storage work, memory checks or a clean migration plan.

The IBM System x3100 M5 is a single-socket tower server from the IBM System x era. It was built for small business workloads where a rack server was too much and a desktop PC was not enough. It gave offices a proper server chassis, ECC memory support, Xeon E3 processor options, RAID capability and IBM remote management options in a tower format that could sit under a desk or in a small IT room.

What the IBM x3100 M5 was built to run

This was never a dense virtualisation host. It was never meant to run 60 virtual machines in a Dubai data centre rack. The x3100 M5 was built for the practical workloads that small UAE businesses run every day: file sharing, domain services, print services, accounting software, light database use, branch applications and local backup jobs.

In a Deira trading office, that might be shared folders, Tally data, user logins and printer control. In a JAFZA warehouse, it may be an inventory application and local file storage. In a clinic, it may be a small medical records application with daily backup to USB or NAS. In a school, it may be Active Directory, exam files and admin software. These are not heavy workloads, but they still need stable hardware.

The problem is age. A tower server that was sensible ten years ago becomes risky when disks are old, fans are noisy, CMOS batteries fail, firmware is dated and operating system support has moved on. Many x3100 M5 units in Dubai are still running Windows Server 2012 R2, older Linux builds or application stacks that nobody has patched for years. That is where the risk sits.

IBM System x3100 M5 specifications

Specification	Detail
Brand / Family	IBM System x
Model	IBM System x3100 M5
Generation	IBM System x era legacy server
Form Factor	Tower server
Processor Socket	Single socket
Processor Family	Intel Xeon E3-1200 v3 family, with selected Intel Core i3, Pentium and Celeron options depending on machine type
Memory Type	DDR3 ECC UDIMM, 1600 MHz class
Memory Slots	4 DIMM slots
Maximum Memory	Up to 32GB DDR3 ECC UDIMM
Storage Bays	Configurations varied by chassis: 3.5-inch simple-swap SATA, 3.5-inch hot-swap, and selected 2.5-inch hot-swap options depending on model build
Internal Storage Type	SATA and selected SAS options with compatible controller
RAID	Onboard SATA RAID for basic RAID levels; optional ServeRAID adapters depending on configuration
Remote Management	IBM Integrated Management Module II, commonly known as IMM2
Power Supply	Fixed or redundant power supply options depending on exact machine type and chassis build
Operating System Era	Commonly deployed with Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 and Linux distributions from the same period

Processor and memory details

The x3100 M5 was a single-socket Intel server. Common business configurations used Intel Xeon E3-1200 v3 processors. Some lower-cost builds used Intel Core i3, Pentium or Celeron processors. The Xeon E3 configurations are the ones most businesses wanted because they supported ECC memory and gave better server-class behaviour than desktop-class chips.

Memory is DDR3, not DDR4 and not DDR5. This matters. DDR3 ECC UDIMM stock is not the same memory used in current Lenovo ThinkSystem ST50 V3 servers. The x3100 M5 has 4 DIMM slots and supports up to 32GB. For a small file server or domain controller, 16GB to 32GB was enough in its time. For current workloads, 32GB becomes tight very quickly once backup software, antivirus, database services and remote access tools are added.

This is why many x3100 M5 units in Dubai feel slow even after disk clean-up. It is not always a single failed part. It can be the platform ceiling. One socket. DDR3 memory. 32GB maximum. Older SATA disks. Older RAID firmware. A server can be technically working and still be the wrong machine for the workload it is now carrying.

Storage and RAID details

Storage is where most x3100 M5 support calls start. One disk has an amber light. A backup job is failing. Windows reports bad blocks. The application vendor says the database is slow. In many older Dubai office servers, the original SATA drives are still inside the machine. Some have been running through summer heat, dust, power cuts and office relocation work for years.

The x3100 M5 was available with different storage builds, including simple-swap 3.5-inch SATA configurations and hot-swap options depending on the chassis. Basic onboard SATA RAID covered smaller deployments. Some units were configured with IBM ServeRAID adapters for better RAID capability and hot-swap storage designs.

For UAE support work, the first step is not guessing the disk. It is checking the server machine type, RAID controller, drive backplane and existing RAID level. A RAID 1 mirror with two drives is handled differently from a RAID 5 array with three or four drives. A failed disk in a degraded RAID set is serious. A second disk failure during rebuild can take the data with it. For business data, verified backup comes before any rebuild attempt.

Management: IBM IMM2, not Lenovo XClarity Controller

Current Lenovo ThinkSystem servers use XClarity Controller. The IBM System x3100 M5 belongs to the earlier IBM management generation and uses Integrated Management Module II, usually called IMM2. This is an important difference when planning support, firmware checks and remote access.

IMM2 gives hardware monitoring and management functions for the platform. Depending on licence and configuration, it can support remote presence features. In many small business deployments, IMM2 was never configured properly. The server was installed, connected to the office network, and then left alone for years. No dedicated management IP. No saved credentials. No firmware record. No alerting.

When Vector Digital Systems inspects an IBM x3100 M5 in Dubai, we check the management access, firmware level, storage health, memory status, fan readings and event logs where available. For businesses using Etisalat Business or du Enterprise circuits across branch offices, remote management matters. It saves a site visit when the issue is firmware, temperature, storage warning or power event. But only if it was configured before the failure.

Where this tower server still makes sense

There are still cases where an IBM x3100 M5 can be kept running for a while. A non-critical file archive. A lab machine. A small offline application. A temporary system waiting for data export. A branch server where the main workload has already moved to cloud or a central data centre.

But it should not be treated like a new production server. Not for a company that depends on it every day. Not for an accounts application that stops invoicing. Not for a clinic where appointments and billing depend on the local database. Not for a warehouse where dispatch stops when inventory software goes down.

In Dubai, many older tower servers live in poor conditions. Under desks in Business Bay offices. Beside printers in Karama shops. Inside small wall cabinets in warehouses. Near pantry areas. Sometimes with no UPS. Sometimes with AC switched off after office hours. The x3100 M5 was built as server hardware, but age plus heat plus dust changes the risk profile.

What changes when you move from x3100 M5 era hardware

The biggest change is not only speed. It is supportability. With IBM x3100 M5, every service call begins with questions: which machine type, which RAID controller, which drive tray, which firmware, which OS, which old application version. With a current Lenovo ThinkSystem tower, parts, warranty, firmware and operating system support are easier to plan.

Memory also changes. The x3100 M5 uses DDR3 ECC UDIMM with a 32GB ceiling. Current Lenovo ST50 V3 platforms use DDR5. That means more bandwidth, newer modules, cleaner stock availability and a better fit for current Windows Server builds, backup agents, endpoint protection and business applications.

Storage planning changes too. Old SATA disks can keep a small server alive, but they do not give the same reliability planning as current SSD and enterprise HDD configurations. With a new build, the operating system, data, backup target and RAID level can be designed properly from day one instead of patched around whatever was installed ten years ago.

For Dubai businesses, the clean way forward is simple: inspect the existing x3100 M5, confirm what it runs, verify backup, document users and applications, then decide whether to service it temporarily or move the workload to a current Lenovo platform. Vector Digital Systems handles both the hardware side and the on-site work across all 7 UAE emirates.

Power, cooling and office placement in Dubai

The IBM System x3100 M5 is a tower server, so most UAE businesses did not place it in a rack. They placed it where space was available. Under a desk. Beside a switch. Inside a small IT closet. Sometimes in a warehouse office where the AC goes off after 6PM. That matters more than people think.

A tower server needs clean airflow from front to back and enough room around the chassis for heat to leave. When the rear of the server is pushed against a wall, hot air cycles back into the system. When it sits near paper boxes, dust blocks the intake. When it runs on a weak UPS, every power dip from the building supply becomes a storage and filesystem risk.

Dubai operating conditions are not kind to old hardware. Summer ambient temperature, dust, AC shutdowns, office relocation work, overloaded extension blocks and ageing UPS batteries all show up in the event logs. If the server is in JAFZA, Al Quoz, Ras Al Khor, DIP or a warehouse mezzanine, cooling checks should not be skipped. A fan warning on a ten-year-old tower is not a small issue. It is the server telling you it is running outside the condition it was built for.

Grey market warning for IBM System x parts

Old IBM System x parts are widely traded. Some are clean pulls from working systems. Some are refurbished. Some are untested. Some have been sitting in storage for years. With a legacy tower server, the low price of a part can look attractive until the server comes back with the same fault two weeks later.

Be careful with hard drives, trays, RAID controllers, power supplies and memory modules sold without proper testing. A drive may fit physically but still be the wrong type for the controller. A memory module may be DDR3 but not the right ECC UDIMM type. A RAID card may need the right cable, battery or firmware level. This is why the machine type matters.

What Vector Digital Systems provides

Vector Digital Systems supports IBM and Lenovo server environments in Dubai, UAE. We do not treat an old tower server as just a box of parts. We check what it runs, how users connect to it, what data is stored on it and what happens to the business if it stops.

For IBM System x3100 M5, the usual service scope includes server inspection, health check, disk and RAID review, memory check, fan and thermal check, event log review, backup status review, operating system assessment and upgrade planning where needed. If parts are available, we quote based on the exact machine type. If the server is too old for safe daily use, we explain the current Lenovo tower path clearly.

Installation is standard VDS service. For tower systems, that means physical placement, UPS check, network patching, basic cable dressing, OS installation support, driver and firmware planning, storage configuration and handover. For rack systems, we handle rack deployment as part of the project scope. We work across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain.

For current Lenovo ThinkSystem servers, Lenovo Premier Support is available. It is the right warranty level for production workloads where downtime costs real money. Essential Support may be fine for non-critical systems. For a business server running accounts, inventory, ERP, clinic software or file access, Premier Support with next-business-day onsite coverage is usually the safer option.

When to keep it, and when to move the workload

Keep the IBM x3100 M5 only when the workload is low risk. File archive. Temporary application access. Lab use. Offline data extraction. A backup system that is not the only copy of business data. In these cases, a health check and limited parts support may be enough to buy time.

Move the workload when the server is tied to daily revenue. Accounts. Invoicing. Stock movement. Clinic appointments. School administration. Warehouse dispatch. Active Directory for the full office. Any system where downtime sends staff to WhatsApp groups asking when the server will be back.

The current tower path is Lenovo ThinkSystem ST50 V3. It is the right class of machine for many x3100 M5 environments because it keeps the tower format but moves the business to current Lenovo hardware, DDR5 memory and active warranty choices. For larger workloads, a rack server may make more sense. That decision depends on users, applications, storage size, backup design and growth.

FAQ — IBM System x3100 M5 Dubai

What generation is the IBM System x3100 M5?

It is from the IBM System x era. It is not a Lenovo ThinkSystem V1, V2, V3 or V4 server. It is a legacy tower server commonly used by small businesses and branch offices before the current Lenovo ThinkSystem tower range.

What processors does the IBM x3100 M5 support?

Common server-class builds used the Intel Xeon E3-1200 v3 family. Some lower-cost configurations used selected Intel Core i3, Pentium or Celeron processors depending on machine type. For parts or service, the exact CPU should be checked from the machine type and current system configuration.

Does IBM x3100 M5 use DDR3, DDR4 or DDR5 memory?

IBM x3100 M5 uses DDR3 ECC UDIMM memory. It does not use DDR4 or DDR5. The platform supports up to 32GB across 4 DIMM slots. Current Lenovo ThinkSystem tower servers use newer memory platforms, so memory cannot be moved across generations.

Can Vector Digital Systems supply IBM x3100 M5 parts in Dubai?

Parts are subject to availability because this is a legacy IBM System x model. Send the machine type, serial number, RAID controller details and photos of the drive bays. We check availability before quoting disks, trays, memory, power supplies or controller parts.

What is the current Lenovo tower option after IBM x3100 M5?

The tower lineage is IBM x3100 M5 to Lenovo ST50, then ST50 V2, then Lenovo ThinkSystem ST50 V3. For many small office workloads, ST50 V3 is the current Lenovo tower platform to review. For heavier workloads, SR250 V3 or SR650 V3 may be better depending on storage, users and applications.

Is Lenovo Premier Support available for IBM x3100 M5?

No. IBM x3100 M5 is a legacy platform and current Lenovo Premier Support is for supported Lenovo systems. For current Lenovo ThinkSystem servers supplied by Vector Digital Systems, Premier Support options are available in the UAE, including next-business-day onsite coverage for production workloads.

Comparable Lenovo server options

If you are checking an IBM System x3100 M5 because the server is ageing, these are the Lenovo systems usually reviewed with it. For the closest tower class, see Lenovo ThinkSystem ST50 V3 Dubai. For a slightly larger tower environment, review Lenovo ThinkSystem ST250 V3 Dubai. If the workload should move into a rack, the entry point is Lenovo ThinkSystem SR250 V3 Dubai.

For businesses standardising on Lenovo servers across multiple UAE sites, start from the Lenovo Server Dubai hub. It covers tower, rack, channel stock and legacy IBM System x paths.

Africa, GCC and MEA export

Vector Digital Systems supports UAE and export requests for Lenovo server projects from Dubai. For IBM System x3100 M5 environments in Africa, GCC and South Asia, we can help identify whether the better route is legacy parts support or a current Lenovo tower supply. FOB Dubai pricing is available for resellers, branch rollouts and business owners shipping to their home country. Export documentation can be arranged for supported orders.

Typical export requests include branch office tower servers, small accounting servers, warehouse application servers and domain controller refresh projects. Share the country, quantity, required warranty level and whether the server needs disks, memory, operating system support or only bare hardware.
