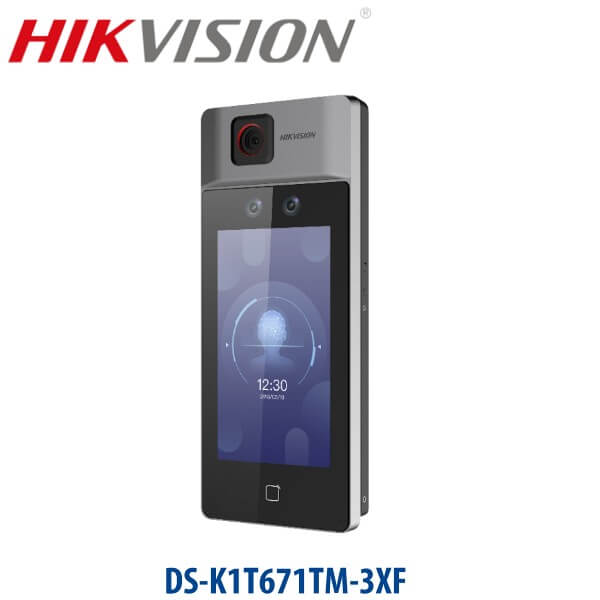

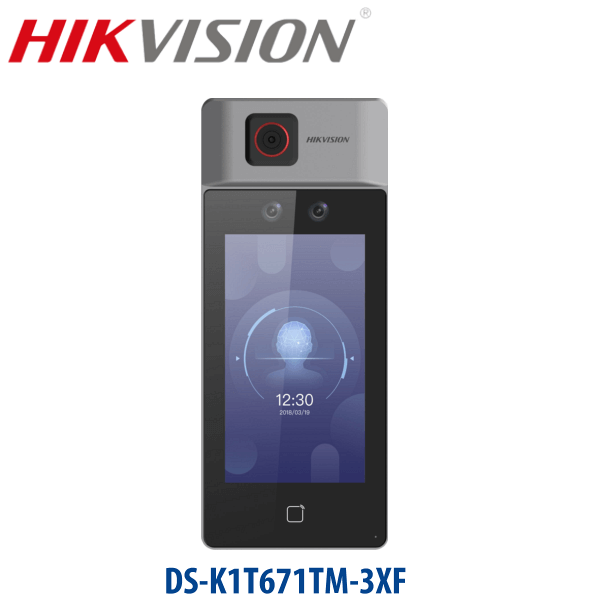

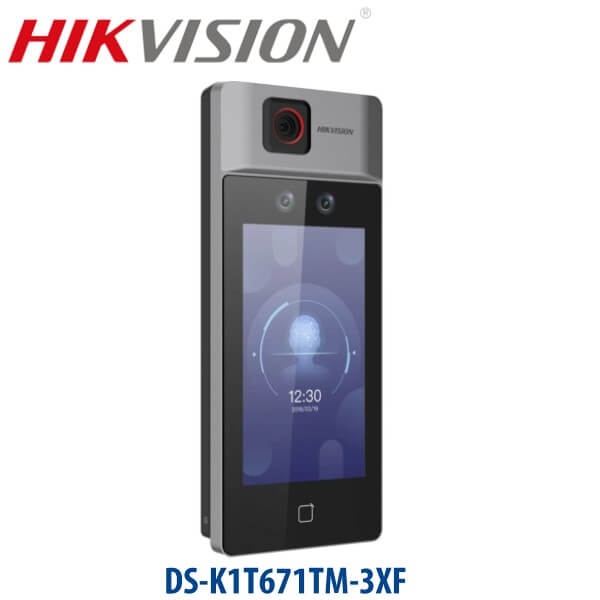

HikVision DS-K1T671TM-3XF Temperature Screening Terminal Dubai

The terminal incorporates a number of important interfaces like RS-485, 1000M Ethernet, Wiegand, two USB ports, lock, door contact, and exit buttons, a tamper function, one alarm output, and two alarm inputs. The HikVision DS-K1T671TM-3XF Temperature Screening Terminal is suitable for office blocks, transportation hubs, retail centers, and education institutions. For more accurate temperature readings, it is designed to work in indoor environments away from wind disruptions. The manufacturer advises that after powering on, the device should be left for 90 minutes to warm up in order to give higher accuracy with temperature.

HikVision DS-K1T671TM-3XF Features

• Supports Vanadium Oxide uncooled sensor to measure target’s temperature
• It has a temperature measuring range of 30 °C to 45 °C (86 °F to 113 °F), and accuracy levels of ± 0.5 °C
• The recognition distance: 0.5 to 1.5 m
• It is supplied with a 7 inch touchscreen and an M1 card reader.
• It onboards fast temperature measurement mode by detecting face and taking temperature without identity authentication
• There exist multiple authentication modes; from card and temperature, face and temperature, card and face and temperature, among others.
• It has a face mask wearing alert: the device is able to recognize that a face is not wearing a mask and prompt a voice reminder. Furthermore, authentication fails to go through.
• It also displays temperature measurement results on the authentication page
• It triggers a voice prompt whenever the abnormal temperature is detected
• The door status can be configured to open or close when the abnormal temperature is detected.
• The device can save as well as transmit online and offline temperature data to the client’s software through TCP/IP communication.
• The face recognition duration is ＜2 s per user; with a face recognition accuracy rate of ≥ 99%
• It has a memory that can hold up to 50,000 face capacity, 50,000 card capacity, and 100,000 event capacity
• Supports up to 6 attendance status including check in, check out, break in, break out, overtime in, and overtime out
• Connects to external access controller or Wiegand card reader via Wiegand protocol
• Connects to secure door control unit via an RS-485 protocol to avoid the door opening in the event the terminal is destroyed
• Watchdog design and tamper function
• NTP, manual time and auto synchronization
• Audio prompt for authentication results
• It can import and export data to the device from the client’s software
• Suggested height for face recognition is between 1.4 meters and 1.9 meters

HikVision DS-K1T671TM-3XF SPECIFICATIONS
