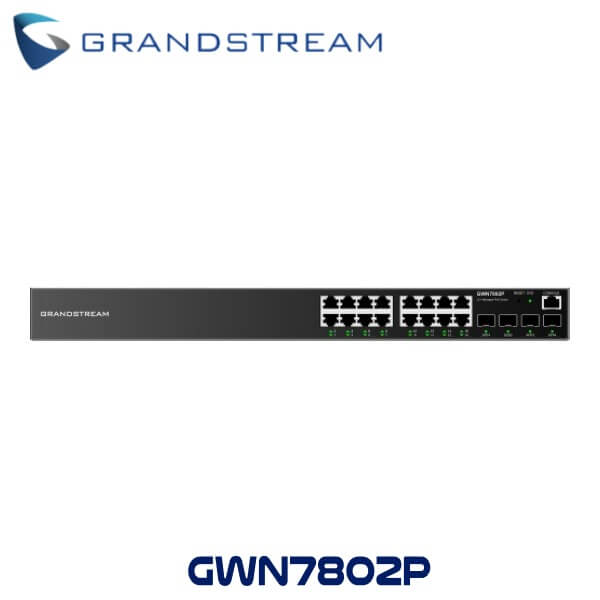

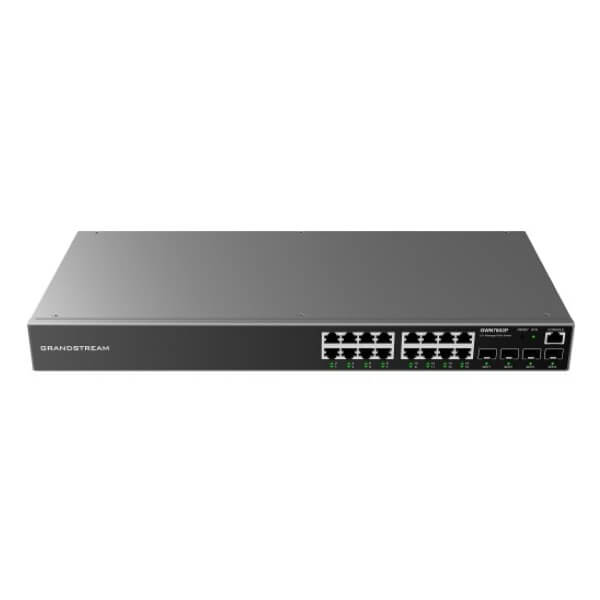

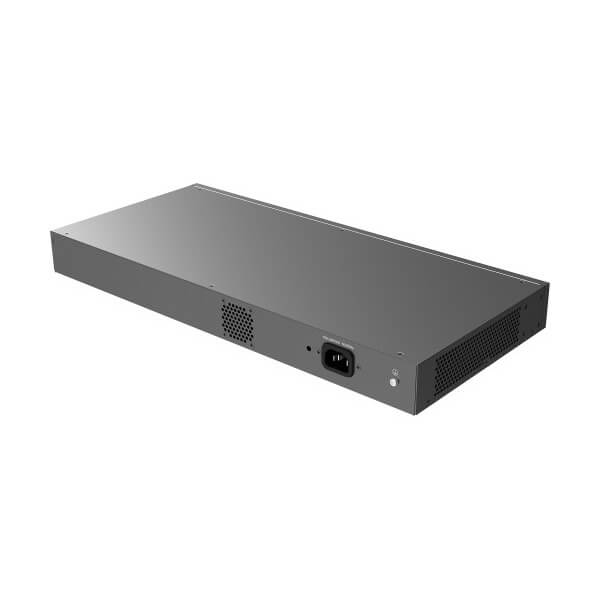

Grandstream GWN7802P Dubai


Grandstream GWN7802P Dubai

The enterprise-class Grandstream GWN7802P Dubai is a managed network switch ideal for small and medium-sized businesses.

Ask for Quote & Get Low Price


Grandstream GWN7802P Network Switch Dubai

The Grandstream GWN7802P Dubai is a Layer 2 managed network switch that enables small and medium-sized businesses to build fully manageable, intelligent, secure and high-performance business networks. It supports advanced VLANs for flexible and sophisticated traffic segmentation, advanced QoS to prioritize network traffic, IGMP snooping to improve network performance, and comprehensive security features against potential attacks. PoE models provide intelligent dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The Grandstream GWN7802P Dubai can be managed in a number of ways, including a local web-based user interface for GWN7800 series switches. This series also supports Grandstream’s cloud and on-premises Wi-Fi management platforms, GWN.Cloud and GWN Manager. The enterprise-class Grandstream GWN7802P Dubai is a managed network switch ideal for small and medium-sized businesses.

Key Features & Benefits of Grandstream GWN7802P :

  • 16x Gigabit Ethernet Ports with PoE/PoE+ support (IEEE 802.3af/at), 4x Gigabit SFP Ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port
  • Max. PoE Power Budget 240W
  • Max Output Power per PoE Port 30W
  • Total non-blocking throughput 20Gbps
  • Switching Capability 40Gbps
  • Forwarding Rate 29.76M packets per second
  • Packet Buffer 4.1MB
  • Forwarding Mode: store-and-forward
  • Integrated Power Supply 270W
  • Multicast: IGMP Snooping, MLD Snooping, MVR
  • DHCP server, DHCP relay, Option 82, 60,160 and 43
  • 1x Console Port
  • 1x tri-color LED for device tracking and status indication,
  • 20x green LEDs for data ports
  • 16x yellow-color LEDs for PoE ports
  • Desktop, wall-mount, or rack-mount (rack-mount brackets included)
  • Operating temperature 0°Cto 45°C, humidity 10-90% RH (Non-condensing)
  • Storage temperature -10°C to 60°C, humidity: 5% to 95% (Non-condensing)
  • 3 Year Warranty


  • 8K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP (pending)
  • 8 link aggregation groups
  • Spanning tree, 64 instances for STP/RTSP/MSTP


  • Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
  • Port priority
  • Priority mapping
  • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
  • Traffic shaping
  • Rate limit
  • 1.5K ACL for Ethernet, IPv4 and IPv6


  • CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test


  • User hierarchical management and password protection, HTTPS, SSH, Telnet
  • 802.1X authentication
  • AAA authentication including RADIUS, TACACS+
  • Storm control
  • Port isolation, port security, sticky MAC
  • Filtering MAC address
  • IP source guard, DoS attack prevention, ARP inspection
  • DHCP Snooping
  • Loop protection including BPDU protection, root protection and loopback protection
  • Kensington Security Slot (Kensington Lock) support


Manufacturer Grandstream
Product Type POE Switch
Modular No
Switching Capacity 40Gbps
Downlink Ports 16
Uplink Ports 4
Network Speed Gigabit
SFP Ports Yes
Management Smart Managed
PoE Power Budget 240W
CCTV Mode Yes
Fast Ring No
Fanless No
Mounting Rack Mount
Warranty 3 Years

Package Contents:

  • GWN7802P Switch
  • 1x 1.2m(10A) AC Cable
  • Rack-mounting Standard Brackets
  • 1x Ground Cable
  • 4x Rubber Feet
  • 2x Lug Ear
