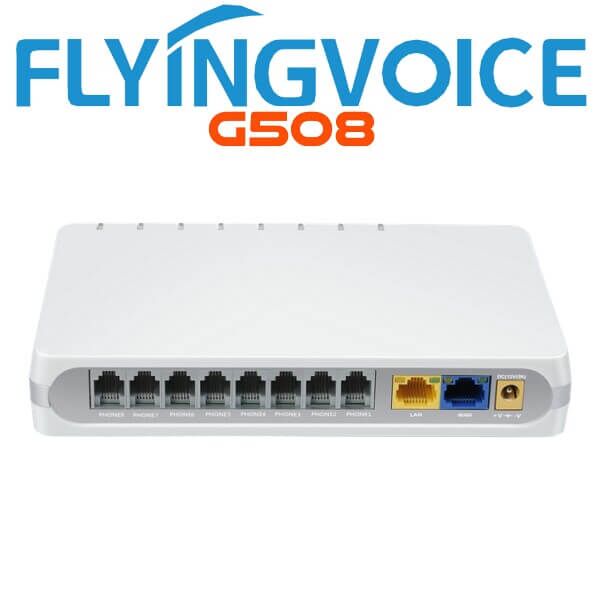

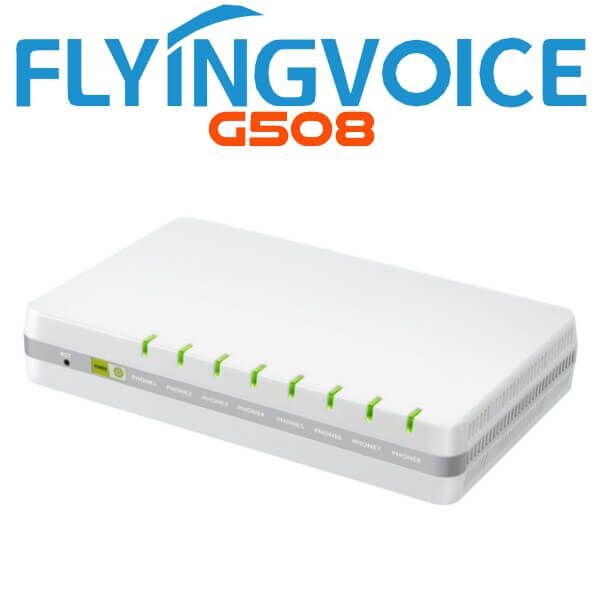

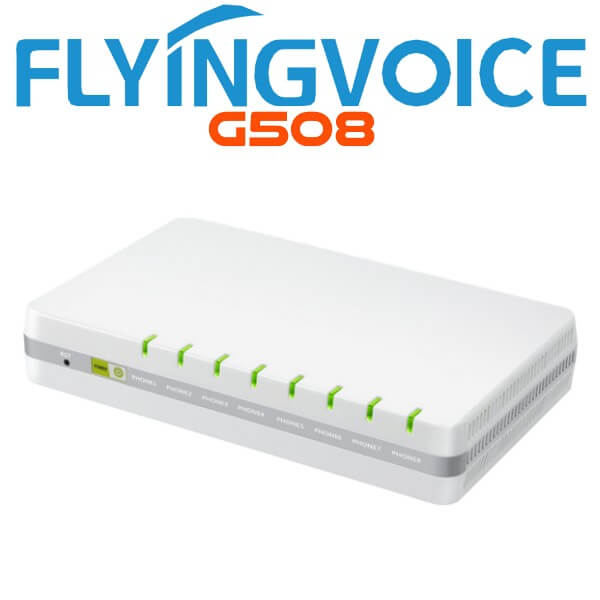

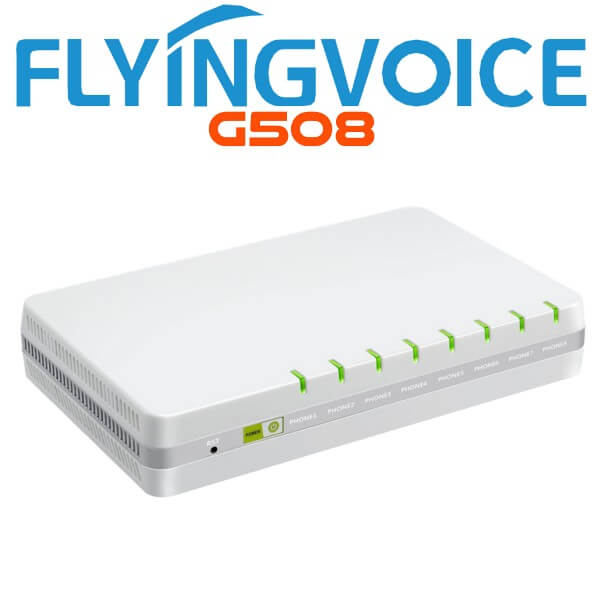

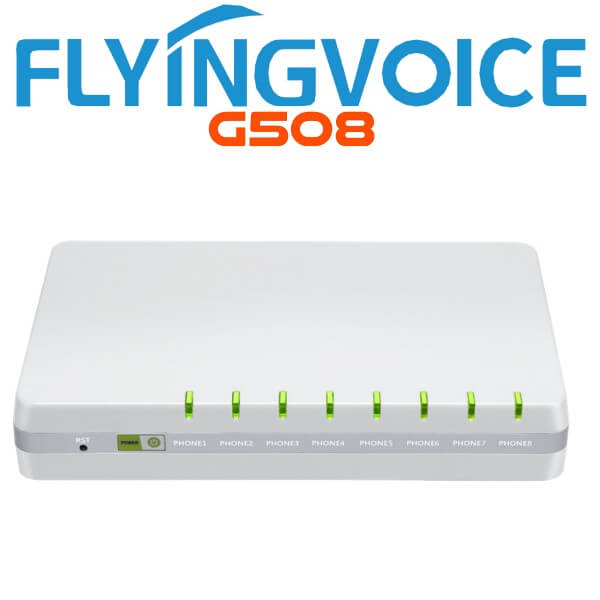

Flyingvoice G508 FXS VoIP Gateway Dubai

Flyingvoice G508 FXS VoIP Gateway Dubai, which has 8 FXS ports, one LAN port, and one WAN port, is one in all the foremost popular VoIP ATAs researched and produced by FlyingVoice. This product cannot only provide 8 SIP lines for users to create calls but also it’s a wire-speed NAT router, cause you to enjoy an easy network atmosphere. What’s more, Flyingvoice G508 FXS VoIP Gateway support T.38 real-time FAX and T.30 FAX with G.711.G508 may be a stand-alone device, which needs no PC to create Internet calls. This Flyingvoice G508 ATA guarantees clear and reliable voice quality on the Internet, which is fully compatible with the SIP industry standard and able to interoperate with many other SIP devices and software on the market. Their compact size, excellent voice quality, packed feature functionality and best-in-class price-performance point enable consumers to maximize the facility of IP voice and data connectivity. G508 relies on the SIP V2.0 standard and compatibility with most service providers.

Flyingvoice G508 FXS VoIP Gateway Features :

• 8 FXS Ports
• T.38 And T.30 FAX
• TR069, SNMP
• 10/100/1000Mbps Ethernet

Flyingvoice G508 FXS VoIP Gateway Specifications :

Flash

• 16MB Flash

RAM

• 256MB SDRAM

Power

• AC/DC Adapter
• AC Input: 100~240V, 50~60Hz
• DC Output: 12V, 3A

Operating System

• Linux 2.6.36

I/O Interfaces

• 2 RJ-45 for 10/100/1000Ethernet Ports
• 8 RJ-11 for FXS Ports

Environmental

• Operation Temperature: 0~50 Degree C
• Storage Temperature: -25~ 85 Degree C
• Relative Humidity: 10%~90% No Condensing

Audio Codec

• G.711(A/u),PAMS>4.3
• G.729A/AB,PAMS>4.0
• T.30 FAX with G.711
• Real time FAX over IP via T.38(Phone 2 port only)
• Adaptive Jitter Buffer
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation

Management

• Firmware Upgradeable
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi User Level
• SNMPv2
• TR069

Protocols

• SIP V2 (RFC 3261)
• Backward Compatible with RFC2543
• Session Timer (RFC4028)
• SDP (RFC2327)
• RTP/RTCP (RFC1889 and RFC1890)
• NAPTR for SIP URI Lookup (RFC2915)
• STUN (RFC 3489)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• PPTP/L2TP VPN
• HTTP Server for Web Management
• TFTP/HTTP/HTTPS for Auto Provisioning
• DNS/DNS SRV (RFC1706 and RFC 2782)

Applications

• NAT/NAPT Router function
• MAC Address Cloning
• DHCP Server
• PPTP/L2TP VPN
• PPPoE
• SIP proxy redundancy
• Dynamic via DNS SRV, A records
• NAT Traversal by STUN
• DMZ
• QoS with Layer 3
• DHCP Client and DHCP Server
• IP conflict detectionv

Call Features

• 3-way Conference
• Music on hold
• DTMF mode: In-band, RFC2833 and SIP INFO
• Call Hold
• Call Forwarding
• Call Mute
• Call Transfer
• Call Waiting
• Speed Dial
• Caller ID and CWCID
• Hotline
• Real time fax over IP via T.38
• T.30 FAX with G.711
• Dial Plan
• Black List
• Call Log

SIZE And Weight

• 180mm(L)x110mm(W)x30mm(H)
• 295g(N.W)
