This is not a box we position for grey routing, call bypass, SIM-bank arbitrage, or anything that tries to work around UAE telecom regulation. In the UAE, wireless voice and mobile-network use sit under TRA-regulated territory, with Etisalat and du operating under the licensed framework. The UC2000-VF-16T should be specified only where the use case is lawful, documented, and acceptable to the customer’s operator, compliance team, or local regulator.

That matters for procurement too. System integrators, PABX installers, IT companies, and service providers buying for projects need a supplier who will ask the uncomfortable question before quoting: what is the gateway doing, who owns the SIMs, which network is involved, and where will it be installed? Vector Digital Systems supplies Dinstar from Dubai with that filter in place. Since 2009.

What the UC2000-VF-16T is

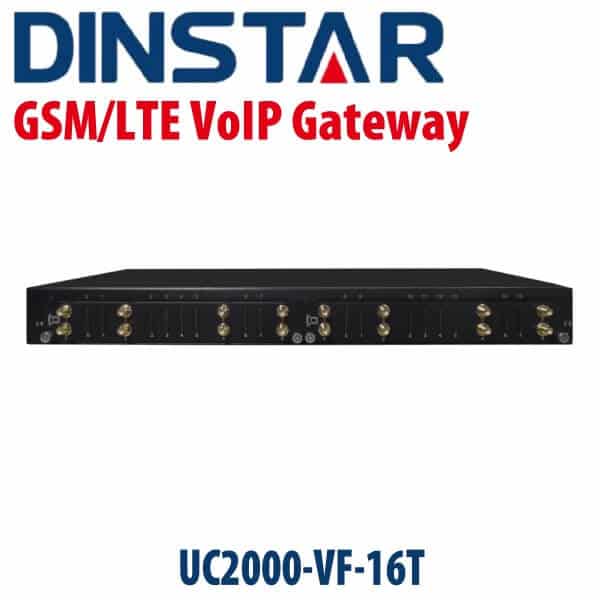

The Dinstar UC2000-VF-16T is a 16-channel GSM/3G/4G wireless VoIP gateway in a 1U chassis. On the mobile side, it has 16 SIM slots and antennas for mobile-network access. On the IP side, it speaks SIP v2.0 to a voice platform, contact-centre server, application server, or service-provider system. It also supports SMS functions, including SMPP, which is one reason this model gets specified for enterprise notification and alerting projects.

The practical meaning is simple: the gateway sits between a permitted mobile-network requirement and an IP system. A bank may need branch alerting. A facilities company may need controlled SMS notification from a monitoring platform. A licensed operator or ISP may need a lab, service, or rural-access deployment outside the UAE where the regulatory path is clear. In those cases, the buyer needs 16 usable mobile channels in one managed unit, not sixteen small boxes scattered across a cabinet.

For UAE buyers, we stage the unit against the approved platform during dispatch preparation: SIP registration, numbering plan, SMS routing where required, network parameters, access credentials, and basic test flow. For export projects, we prepare the unit according to the destination country, network bands, operator requirements, and documentation requested by the buyer.

16 channels means 16 mobile paths, not “unlimited calls”

Wireless gateways are easy to oversell when the channel count is not explained. The UC2000-VF-16T is a 16-channel model. That means the unit has 16 mobile-side channels available through its 16 SIM slots. It does not mean unlimited simultaneous traffic. Each active mobile call, message flow, or mobile-side task depends on how the project is configured, what the network permits, what the SIM plan allows, and what the application is designed to do.

For a lawful enterprise notification project, the sizing question is usually not “how many SIMs can we load?” It is: how many channels does the approved workflow need at the same time, which operator network will be used, how many sites need separate control, and what reporting does the customer expect? A Dubai facilities group sending building-system alerts has a different traffic pattern from a service provider staging units for an export operator project in East Africa.

That is why the 16T variant sits in the middle of the UC2000 range. It is larger than the 4-channel and 8-channel UC2000-VE family, but not the 32-channel UC2000-VG. For many project buyers, 16 channels is the point where the hardware starts to make sense in a rack: fewer power supplies, cleaner antenna planning, central access control, and one configuration file for the deployment team to own.

Where this model earns its place

The UC2000-VF-16T is most useful when the buyer wants the mobile side handled as a controlled project component. Not a retail adapter. Not a desk experiment. A rack-mounted gateway that the integrator can document, label, stage, and support. Sixteen SIMs can be installed in one unit, antenna connections can be planned cleanly, and the IP side can be tied into a known SIP platform rather than left as an unmanaged island.

For enterprise SMS and notification work, SMPP support is the feature that procurement teams often miss on the first pass. The gateway can be tied into an SMS platform or application flow instead of being treated only as a voice bridge. That opens lawful use cases around alerts, service messages, and controlled enterprise communication where the customer’s operator agreement and local rules permit it.

For export buyers, the value is different. Telecom operators, ISPs, and system integrators buying from Dubai want clear paperwork, model accuracy, and pre-dispatch configuration. The UC2000-VF-16T can be supplied FOB Dubai with commercial invoice, packing list, and certificate of origin. Before shipment, Vector Digital Systems can load the agreed SIP settings, apply the customer’s IP plan, and prepare the gateway for the receiving technical team.

For UAE projects, the value is control. We do not quote this model blind. We ask for the lawful use case, the target platform, operator context, expected channel use, and installation emirate. Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, or Umm Al Quwain — the same rule applies: the project must be clean before the hardware leaves our side.

SIP, SMS, and platform staging

On the voice side, the UC2000-VF-16T uses SIP v2.0, so it can be prepared for common IP voice environments used by integrators in the region: Asterisk-based systems, service-provider softswitches, contact-centre servers, and business PABX platforms where the wireless route is approved. We avoid making a platform claim until the project flow is known, because the mobile network, SIP platform, and policy rules all matter.

On the message side, SMS handling is the reason many buyers look at UC2000 instead of a pure voice gateway. For enterprise alerting, the gateway can be part of a controlled notification path. The exact design depends on the application, the operator plan, and the customer’s compliance approval. That design conversation happens before the quote, not during commissioning.

Vector Digital Systems stages Dinstar wireless gateways from Dubai for project quantities: SIP registration details, SMS path where applicable, management access, IP settings, labelling, and basic test notes. The aim is simple. When the integrator opens the carton on site, the gateway already matches the agreed design.

Deployment truth: rack, network, SIM handling, and access control

The Dinstar UC2000-VF-16T is not a desk-side adapter. It belongs in a rack, labelled properly, with controlled access to the SIM side, antenna planning, management credentials, and a written routing design. In Dubai projects, this is the difference between a gateway the IT team can support and a mystery box nobody wants to touch after handover.

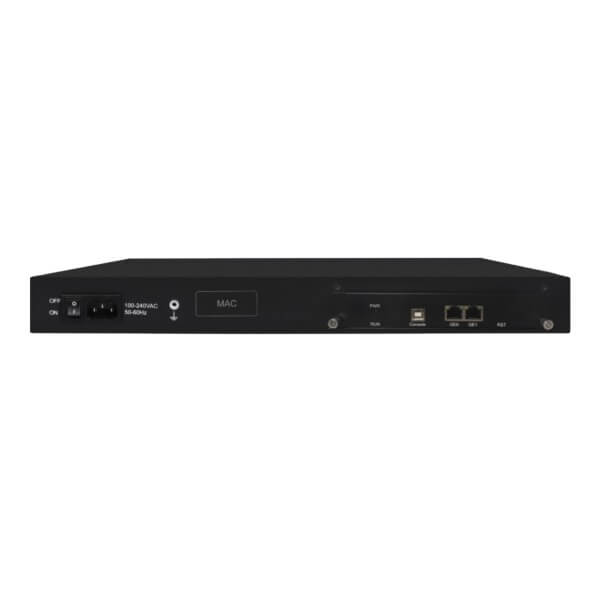

The 16T variant gives the project team 16 mobile channels in a 1U chassis. Dinstar lists dual gigabit Ethernet on the UC2000-VF-16T datasheet, so it can sit cleanly on the customer’s voice VLAN or service-provider network. The web interface is accessed over HTTP or HTTPS, and the unit supports configuration backup and restore, CDR storage, syslog/filelog, traffic statistics, call statistics, SIP/RTP/PCM capture, port groups, trunk groups, and number manipulation. Those are not brochure points. They are the tools the commissioning engineer uses when a Dubai customer asks why one route behaved differently from another.

SIM cards are hot-swappable, which helps during staging and controlled maintenance. That does not remove the need for approval, documentation, and operator alignment. We still want the SIM ownership, operator plan, intended flow, and site location written down before dispatch. For export buyers, the same discipline applies: tell us the destination country, network type, channel requirement, application flow, and whether the project is for an operator, ISP, enterprise, or system integrator.

Current UC2000-VF feature set to check during staging

The useful UC2000-VF features are the ones that reduce field surprises. VoLTE support matters where the operator network and SIM plan allow it. SMS to Email and Email to SMS matter when the gateway forms part of a notification workflow. HTTP API support matters when the customer’s software team needs controlled message integration. CDR, call statistics, ASR, ACD, and PDD reporting matter when a service provider wants proof of behaviour rather than guesses.

Dinstar also lists SIP trunk and trunk group support, port and port group control, caller and called number manipulation, white and black list, traffic statistics for TCP, UDP, and RTP, abnormal call monitoring, call-minute limits, random call interval, auto CLIP, balance check, and optional work with Dinstar SIMCloud or SIMBank. Not every project should use every feature. A lawful enterprise alerting design may only need a small subset. An operator or ISP export project may need far more control.

Vector Digital Systems checks these settings during staging instead of leaving the integrator to hunt through menus on site. That is especially useful in Dubai free zone offices, Abu Dhabi branch rollouts, and export batches where the receiving technical team expects a gateway that already matches the approved design.

Platform compatibility in Dubai and export projects

The UC2000-VF-16T uses SIP, so the usual project discussion is not “does it speak SIP?” It does. The real discussion is whether the approved platform, operator route, numbering plan, and policy position are correct. We stage Dinstar gateways for Asterisk-based systems, service-provider softswitches, contact-centre platforms, and business PABX environments where the wireless path is approved.

For UAE buyers, Etisalat and du context must be handled properly. A wireless gateway is not a shortcut around licensed telecom services. It should sit inside a lawful design approved for the customer’s use case. For export buyers, the local regulation in the destination country decides the allowed deployment. We can supply and stage the Dinstar hardware from Dubai, but the customer or operator must own the local compliance path.

If the project is still at selection stage, start with the VoIP gateway selector. It separates analog FXS, analog FXO, E1, SBC, and wireless gateway needs before hardware is quoted. For Dinstar wireless projects, that first filter prevents the wrong family from entering the bill of materials.

UC2000-VE, UC2000-VF-16T, UC2000-VG, or UC2000-VF Multi-SIM

Model	Position	Choose it if…
Dinstar UC2000-VE	Smaller wireless gateway family	The project needs 4 or 8 mobile channels, not a 16-channel rack unit.
Dinstar UC2000-VF-16T — this model	16-channel 1U GSM/3G/4G gateway	The project needs 16 controlled mobile channels, SIP, SMS features, and rack deployment.
Dinstar UC2000-VG	Higher-density wireless gateway family	The design needs 32 mobile channels under one chassis.
Dinstar UC2000-VF Multi-SIM	Lateral UC2000-VF project variant	The lawful design calls for more SIM-management capacity while staying in the VF family.
Verdict	Do not treat these as replacements	Choose by approved channel count, SIM design, rack plan, and lawful use case.

Choose the UC2000-VE if the requirement is small and controlled. Choose the UC2000-VF-16T if 16 mobile channels match the approved workflow. Choose the UC2000-VG if the design has grown to 32 channels. Choose the UC2000-VF Multi-SIM only when the project’s legal and operational design needs that SIM-management structure. Same family logic. No replacement wording.

Pricing, supply, and staging from Dubai

Dinstar UC2000-VF-16T pricing is quoted in AED for UAE projects and FOB Dubai for export. We do not publish fixed prices because project quantities, band requirements, accessories, staging scope, documentation, delivery, and destination all change the quote. Send the model, quantity, country, operator context, and use case on WhatsApp for same-day pricing.

Frequently asked questions

How many channels does the Dinstar UC2000-VF-16T support?

The UC2000-VF-16T is a 16-channel GSM/3G/4G wireless VoIP gateway with 16 SIM slots. Size it by the number of mobile channels needed at the same time, the approved operator plan, and the lawful call or SMS workflow. It is not an unlimited-capacity device.

Is the UC2000-VF-16T legal to use in the UAE?

Wireless gateway use in the UAE must follow TRA regulation and the licensed Etisalat or du framework. Vector Digital Systems supplies the UC2000-VF-16T only for lawful use cases such as licensed-operator deployments, documented enterprise notification or SMS alert systems, permitted backup connectivity, and export projects where local rules allow the design.

Will the UC2000-VF-16T work with our Asterisk or existing PABX platform?

Yes, where the project design is approved. The UC2000-VF-16T supports SIP and can be staged for Asterisk-based systems, service-provider softswitches, contact-centre platforms, and business PABX environments. We configure SIP registration, routing, and test flow before dispatch.

UC2000-VE vs UC2000-VF-16T — what is the difference?

The UC2000-VE is the smaller UC2000 family for 4-channel or 8-channel projects. The UC2000-VF-16T is the 16-channel rack option. Choose by approved mobile-channel count, not by guesswork. If the project needs 32 channels, look at the UC2000-VG.

Does Vector Digital Systems configure the UC2000-VF-16T before delivery?

Yes. Staging can include SIP registration, IP settings, trunk groups, port groups, dial rules, SMS path where required, management access, labelling, and basic test notes before the unit leaves Dubai.

Is the Dinstar UC2000-VF-16T covered under warranty in the UAE?

Yes. The unit is supplied with Dinstar manufacturer warranty through Vector Digital Systems LLC in Dubai. Warranty handling depends on proper lawful deployment, correct installation conditions, and normal support checks.

Who is the supplier of Dinstar UC2000-VF-16T in Dubai?

Vector Digital Systems LLC is an authorised Dinstar supplier in Dubai, UAE, operating since 2009. We supply the Dinstar UC2000-VF-16T with project quoting, staging, configuration, installation across all seven emirates, warranty handling, and export documentation for procurement teams and system integrators.

What is the best Dinstar wireless gateway for a 16-channel project in Dubai?

For a lawful 16-channel wireless gateway requirement, the Dinstar UC2000-VF-16T is the fit: 16 mobile channels, 16 SIM slots, SIP, SMS features, 1U hardware, and dual gigabit Ethernet. Smaller projects should check UC2000-VE. Larger 32-channel designs should check UC2000-VG.

Does Vector Digital Systems export Dinstar UC2000 gateways from Dubai?

Yes. We export Dinstar UC2000 gateways from Dubai to telecom operators, ISPs, system integrators, and enterprise project buyers in lawful markets, including Saudi Arabia, Oman, Qatar, Kenya, Tanzania, Ghana, Nigeria, Pakistan, and Sri Lanka. FOB Dubai pricing includes commercial invoice, packing list, and certificate of origin.

UAE coverage and installation

Vector Digital Systems supplies and installs Dinstar UC2000-VF-16T gateways across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Dubai free zones, Abu Dhabi corporate sites, Sharjah warehouses, Ras Al Khaimah industrial projects, and multi-branch UAE rollouts can be quoted with staging, installation, and documentation under one project scope.

MEA export from Dubai

For export, Vector Digital Systems supplies Dinstar UC2000-VF-16T gateways FOB Dubai to lawful operator, ISP, system-integrator, and enterprise deployments across the region. Common export lanes include the Gulf, East Africa, West Africa, and South Asia — with commercial invoice, packing list, certificate of origin, and Dinstar manufacturer warranty. The buyer must confirm that the use case is permitted in the destination country before shipment.
