That framing matters because the hardware itself is useful. Eight mobile channels in a compact UC2000-VE chassis. SIP on the IP side. GSM, WCDMA, and LTE options on the radio side, depending on the module and country band plan. SMS, USSD, API integration, SMPP, number rules, trunk groups, CDR records, and remote management options. For project buyers, that means the same unit can sit behind an enterprise alerting platform, an operator test bench, a regulated mobile-to-SIP environment, or an export telecom project — provided the legal side is correct before purchase.

Vector Digital Systems supplies and stages Dinstar wireless gateways from Dubai for system integrators, PABX installers, service providers, IT companies, and export buyers. We check the channel count, SIM plan, antenna layout, SIP registration, SMS requirement, and regulatory fit before quoting. That is especially important on UC2000 projects, where the wrong language can create the wrong expectation.

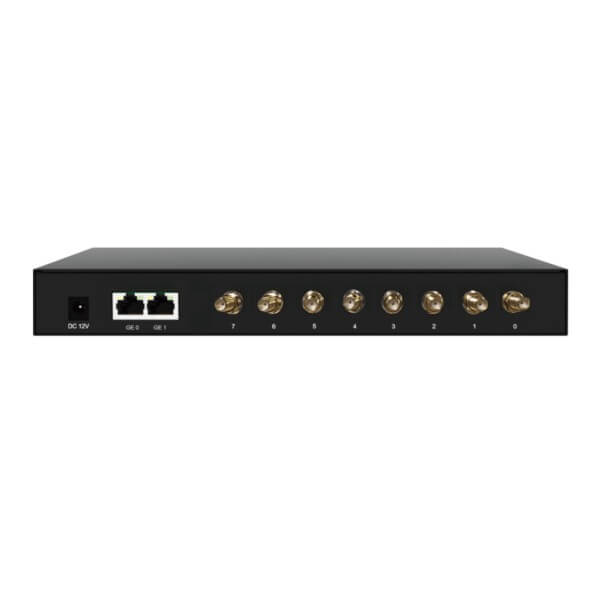

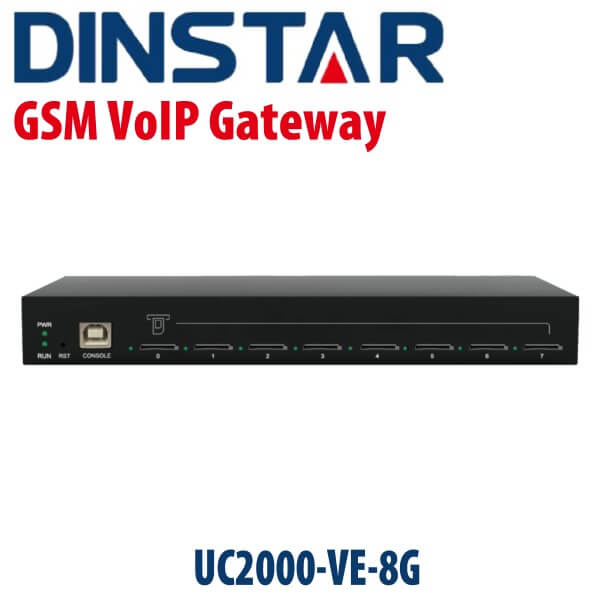

What the UC2000-VE-8G is

The Dinstar UC2000-VE-8G is the 8-channel version of the UC2000-VE wireless VoIP gateway family. It connects mobile network channels to an IP telephony environment using SIP. Dinstar lists the UC2000-VE family as a 4 or 8 channel GSM/3G/4G VoIP gateway in a compact field-proven hardware design, used for voice and SMS between mobile and VoIP networks.

On the mobile side, the platform supports GSM, WCDMA, and LTE options, with country-specific frequency choices. On the IP side, it supports SIP v2.0, SIP trunk and trunk group, port and port group, caller and called number manipulation, SIP codes mapping, hotline settings, IVR customisation, and DTMF through RFC2833 or SIP Info. For SMS projects, it supports SMS/USSD, HTTP API for SMS, SMPP, SMS to email, and email to SMS.

The short version for a project buyer: this is not a single-desk device. It is a small wireless gateway for planned deployments where eight mobile channels are enough, where the SIP platform is known, and where the legal use case has already been checked. If the channel count needs to grow, the same Dinstar range steps up to higher UC2000 models, but the UC2000-VE-8G remains the correct compact 8-channel choice when the requirement fits.

The eight-channel question: what does 8G mean in a real project?

In the UC2000-VE-8G name, the useful number is eight. Eight mobile channels. Eight SIM slots. Eight antenna connections. That does not mean every project should start at eight; it means the gateway can be planned around eight separate mobile network interfaces. In a lawful enterprise SMS project, those channels may be used for approved notification traffic. In a licensed operator or service-provider environment, they may be part of a controlled mobile-to-SIP setup. In an export project, the same hardware may be used where local telecom rules permit that deployment.

This is the sizing mistake we see in Dubai quotes: buyers ask for “a GSM gateway” without naming the channel count, the radio type, or the use case. That is not enough. A 4-channel unit, an 8-channel unit, a 16-channel unit, and a 32-channel unit solve different problems. The UC2000-VE-8G is for compact eight-channel requirements, not for a high-density operator rack and not for a desktop experiment.

Lawful use cases we will quote

The first lawful lane is enterprise notification. A bank, clinic group, logistics company, hotel operator, or facility-management company may need controlled SMS alerts for approved internal or customer communication. The UC2000-VE-8G supports SMS/USSD, HTTP API, SMPP, SMS to email, and email to SMS, so the gateway can be tied to the buyer’s application layer where the message flow is permitted and documented.

The second lane is licensed operator or service-provider work. This may include testing, interconnect staging, rural coverage projects, or regulated mobile-to-SIP network designs. In those cases the buyer normally has a licence, an operator agreement, or a country-specific approval path. We can supply the unit from Dubai, stage the SIP side, label the channels, and prepare export documents, but the buyer owns the local telecom approval in the destination market.

The third lane is backup connectivity where regulations permit it. Some sites need a mobile-path fallback for specific communications. That has to be designed carefully, especially in the UAE. The UC2000-VE-8G can sit in the design only after the operator, SIM plan, SIP platform, and permitted call or message flow are clear.

The lane we do not quote: anything described as route bypass, grey traffic, SIM-bank arbitrage, or low-cost calling tricks. That language is not a project. It is a risk. For UAE deployments, we keep the discussion around Etisalat, du, TRA rules, enterprise notification, approved operator work, and documented business systems.

SMS and API work: the part buyers miss

Many UC2000-VE-8G enquiries begin as voice enquiries, then become SMS projects after the technical meeting. That is where this model earns its place. Dinstar lists HTTP API for SMS application integration, SMPP for SMS, SMS/USSD, SMS to email, and email to SMS. For enterprise systems in Dubai — appointment reminders, internal alerts, dispatch notices, facilities messages, or approved customer notifications — those features matter more than the voice side.

During staging, we ask how the application will hand messages to the gateway. HTTP API? SMPP? Manual SMS from the web interface? Email-to-SMS flow? The answer changes the setup. It also changes the acceptance test. A gateway that passes SIP registration but has not been tested against the customer’s SMS workflow is not ready for dispatch.

For multi-site buyers, the detail goes one step further: channel labels, SIM references, message logs, CDR storage, and remote support access. Dinstar lists local CDR storage, syslog/filelog, traffic statistics, call statistics, abnormal call monitor, and backup/restore tools. We use those during staging so the integrator is not troubleshooting blind after installation.

UC2000-VE-8G in the Dinstar wireless range

Keep the naming clear. The UC2000-VE-8G is part of the UC2000-VE family. It is not written as a replacement for another model, and we do not present the UC2000-VF or UC2000-VG as replacement products. They are capacity steps inside the Dinstar wireless gateway range.

Choose the UC2000-VE-8G when the project needs eight mobile channels in a compact gateway. Move to the Dinstar UC2000-VF when the legal design needs up to sixteen channels. Move to UC2000-VG when the legal design needs thirty-two channels. Same range logic. Different scale. No replacement claim.

Deployment truth: radio, SIP, SMS, and management

A UC2000-VE-8G project is not finished when the gateway powers on. The real work is in the radio plan, the SIM references, the SIP side, the message flow, and the support access. Eight mobile channels need eight antennas placed with care, eight SIM slots labelled properly, and a clear test plan for each channel. That matters in Dubai comms rooms, where the gateway may sit behind a PABX, an enterprise alerting platform, or a service-provider test environment.

The IP side uses SIP v2.0 and supports SIP trunk and trunk group settings, port and port group logic, caller and called number manipulation, SIP code mapping, DTMF through RFC2833 or SIP Info, and web configuration over HTTP or HTTPS. For a Dubai installer, that means the gateway can be staged against the customer’s platform before it leaves our office. We register the SIP side, name the channels, set the route rules, and document what has been tested.

The SMS side needs its own plan. UC2000-VE supports SMS/USSD, HTTP API for SMS, SMPP, SMS to email, and email to SMS. If the buyer is building approved enterprise notifications, the test is not only “can it send a message?” It is “can the buyer’s application hand messages to the gateway in the agreed method, can the logs be checked, and can the integrator support it after handover?” That is what we stage.

Current capability notes from Dinstar public material

Dinstar’s UC2000-VE material lists VoLTE, hot-swappable SIM cards, SMS sending and receiving, SMS API, SMPP for SMS, optional built-in antenna combiner, optional SIMCloud and SIMBank support, backup and restore, debug tools, CDR storage, syslog/filelog, traffic statistics, call statistics, abnormal call monitor, PIN management, balance check, Auto CLIP, white and black list, and call minutes limitation.

Those details matter because UC2000-VE-8G is usually bought by project teams, not retail buyers. A system integrator wants to know whether the unit can be supported after installation. A service provider wants channel records. An enterprise IT team wants SMS flow testing. An export buyer wants labelled channels and paperwork. The gateway has the management hooks to support that kind of job, as long as the design is legal and the staging is done before shipment.

Vector Digital Systems supplies the Dinstar UC2000-VE-8G from Dubai with configuration notes for the customer’s platform. We can also quote antennas, SIM layout notes, and project quantities under one offer, instead of treating the gateway as a loose box.

Platform compatibility in Dubai projects

The UC2000-VE-8G uses SIP, so it can be planned with common SIP platforms used by Dubai integrators, including 3CX, Grandstream UCM, Yeastar, Asterisk, Cisco, and existing PABX environments with a SIP interface. The platform side is only half the job. The telecom side must still be legal for the country and operator involved.

For UAE work, we keep the design inside the lawful operator and enterprise lanes. Etisalat and du context is checked during the sales discussion. For export, we prepare the hardware and documentation from Dubai, while the buyer confirms local telecom permission in the destination country. This is the clean way to handle UC2000 projects: no grey claims, no hidden use case, no risky wording in the quotation.

During staging, we can configure SIP registration, trunk groups, port groups, number rules, channel labels, basic call testing, SMS API or SMPP handover notes, and management access. For mixed gateway projects, the VoIP gateway selector helps decide whether the requirement is wireless, FXS, FXO, hybrid, or E1. For office telephony work, add the Vector Digital Systems telephony hub link once the live URL is locked by the team.

UC2000-VE-4G, UC2000-VE-8G, UC2000-VF, or UC2000-VG?

The important point: UC2000-VF and UC2000-VG are capacity choices, not replacement wording for the UC2000-VE-8G. If the buyer asks for the same model, quote the same model. If the buyer’s channel count changes, then the range comparison helps them select the next size.

Pricing, supply, and staging from Dubai

Vector Digital Systems supplies the Dinstar UC2000-VE-8G from Dubai with same-day AED quotation on WhatsApp. We quote project quantities, accessory needs, staging, VAT breakdown, delivery, and export packing where needed. Fixed AED prices are not shown because the final offer depends on quantity, radio build, accessories, staging scope, and destination.

Frequently asked questions

How many channels does the Dinstar UC2000-VE-8G support?

The UC2000-VE-8G is the 8-channel UC2000-VE model, planned with 8 SIM slots and 8 antenna connections. It is for compact lawful wireless gateway projects where eight mobile channels are enough.

Is the UC2000-VE-8G legal to use in the UAE?

Wireless gateways are regulated in the UAE under TRA rules and licensed operator controls. Vector Digital Systems quotes the UC2000-VE-8G only for lawful operator, enterprise notification, SMS, approved backup-connectivity, and export deployments where the buyer’s local regulations allow the use case. We do not support bypass, grey routing, or SIM-bank arbitrage.

Will the UC2000-VE-8G work with our 3CX, Grandstream UCM, Yeastar, or existing PABX?

Yes, where the platform supports SIP and the telecom use case is legal. The gateway supports SIP v2.0, SIP trunks, trunk groups, port groups, and number rules. We stage the SIP registration and routing before dispatch.

Can we use the UC2000-VE-8G for enterprise SMS alerts?

Yes, for approved enterprise notification flows. UC2000-VE supports SMS/USSD, HTTP API for SMS, SMPP, SMS to email, and email to SMS. We test the agreed SMS method during staging when the customer provides the application details.

UC2000-VE-8G vs UC2000-VF — what is the difference?

UC2000-VE-8G is the compact 8-channel model. UC2000-VF is the higher-capacity step when the legal design needs a 16-channel class gateway. UC2000-VF is not written as a replacement for UC2000-VE-8G; it is a bigger option in the Dinstar wireless range.

Does Vector Digital Systems configure the UC2000-VE-8G before delivery?

Yes. Staging can include SIP registration, trunk and port groups, number rules, channel labelling, SMS API or SMPP notes, basic voice and SMS testing, and management access documentation before dispatch.

Is the UC2000-VE-8G covered under Dinstar warranty in the UAE?

Yes. The unit is supplied with Dinstar manufacturer warranty, handled by Vector Digital Systems from Dubai for supported deployments and documented project purchases.

Who is the supplier of Dinstar UC2000-VE-8G in Dubai?

Vector Digital Systems LLC is an authorised Dinstar supplier in Dubai, UAE, operating since 2009. We supply Dinstar UC2000 wireless gateways with staging, configuration, installation support, warranty handling, and official supplier documentation for project buyers.

What is the best Dinstar wireless gateway for an 8-channel project in Dubai?

For a lawful 8-channel wireless gateway project, the Dinstar UC2000-VE-8G is the right compact fit: 8 mobile channels, 8 SIM slots, SIP, SMS API, SMPP, and optional SIMCloud or SIMBank support. Step up to UC2000-VF only if the approved design needs more channels.

Does Vector Digital Systems export Dinstar UC2000 wireless gateways from Dubai?

Yes. We export Dinstar UC2000 wireless gateways from Dubai for lawful operator, enterprise, and integrator deployments across Oman, Qatar, Bahrain, Saudi Arabia, Kenya, Tanzania, Uganda, Ghana, Pakistan, and Sri Lanka. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Dinstar manufacturer warranty. The buyer must confirm local telecom approval in the destination country.

Supply and installation across all seven emirates

Vector Digital Systems supplies and installs Dinstar UC2000-VE-8G wireless gateways across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Dubai free zone buyers in DMCC, JAFZA, Dubai Internet City, DIFC, and Dubai South can request project quotations with VAT details, staging scope, delivery, and warranty handling included.

MEA export from Dubai

For export buyers, the UC2000-VE-8G is quoted only for lawful operator, enterprise, and integrator deployments under the destination country’s telecom rules. We regularly support Dinstar gateway enquiries from the Gulf, East Africa, West Africa, and South Asia — including Oman, Qatar, Bahrain, Saudi Arabia, Kenya, Tanzania, Uganda, Ghana, Pakistan, and Sri Lanka. Export offers can be prepared on FOB Dubai terms with commercial invoice, packing list, certificate of origin, and Dinstar manufacturer warranty.
