Cisco SX550X-12F Dubai

Cisco SX550X-12F Dubai switches break the barrier of 10 Gigabit Ethernet adoption by providing affordable and flexible configurations customized for the demanding network requirements of small and medium businesses.

Ask for Quote & Get Low Price

Description

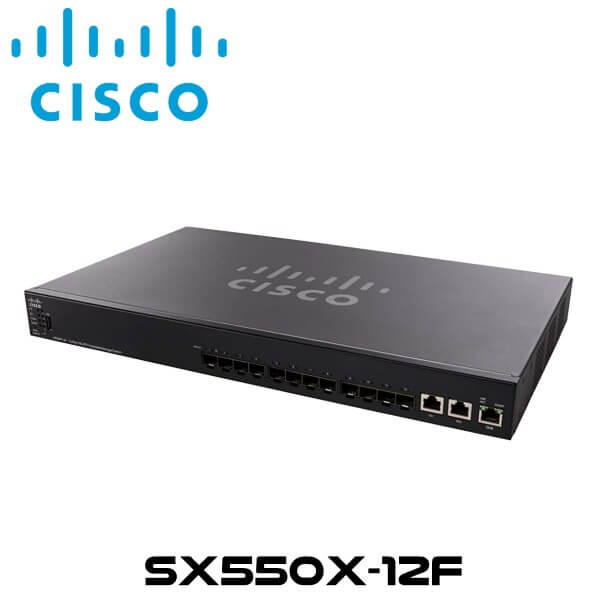

Cisco SX550X-12F Network Switch Dubai

The Cisco SX550X-12F Dubai Switch is a next-generation managed switch that offers excellent performance, rich features, and ease of use. With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future.

The Cisco 550X Series are the next-generation stackable managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment. These switches incorporate fan and power hardware redundancy, increasing overall network availability.

Features:

High-performance 10 Gigabit Ethernet

Cisco SX550X-12F Dubai switches break the barrier of 10 Gigabit Ethernet adoption by providing affordable and flexible configurations customized for the demanding network requirements of small and medium businesses.

With 10G copper ports on the Cisco SX550X-12F Dubai switches, you can easily and cost-effectively enable 10G connections to servers and network storage devices with standard RJ-45 Ethernet cable. You can also connect your SG550X access switches to the SX550X aggregation with 10G SFP+ fiber, building a high-performance backbone to speed up the overall operation of your network.

High reliability and resiliency

In a growing business in which availability 24 hours a day, 7 days a week is critical, you need to assure that employees and customers can always access the data and resources whenever they need. In these environments, stackable switches can play an important role in minimizing downtime and improving network resiliency. For example, if the master switch within a Cisco 550X Series stack fails, another switch takes over, keeping your network up and running. You can also replace individual devices in the stack without taking your whole network offline or affecting employee productivity.

The Cisco SX550X-12F Dubai is designed to deliver hardware redundancy at the lowest incremental cost. Power redundancy is delivered with the Cisco RPS2300 external RPS system. If power to the switch is lost (through loss of AC power or power supply failure), the switch will automatically, and instantaneously, obtain its power from the RPS. This switchover occurs so quickly that there is no loss in traffic or reboot of the device. A Cisco RPS2300 system can be connected to up to six 550X Series switches to provide redundancy. Cooling fan redundancy is delivered through preinstalled N+1 configuration. A switch can fully support all its capabilities for the life of the product with only N fans. If one of the fans fails, the spare fan automatically takes over, without causing any downtime.

The Cisco 550X Series provides an additional layer of resiliency with support for the Virtual Router Redundancy Protocol (VRRP). VRRP lets you extend the same resiliency that stacking provides for individual switches to complete network domains. By running VRRP between two stacks, you can instantly cut over from one stack to another in the event of a problem and continue operating even after a failure.

The Cisco SX550X-12F Dubai also supports dual images, allowing you to perform software upgrades without having to worry about the network going down during the upgrade.

Power over Ethernet Plus (PoE+) and 60W PoE

Cisco SX550X-12F Dubai switches support the Power over Ethernet Plus (PoE+) standard (IEEE 802.3at), providing up to 30 watts per port. The switches also support 60W PoE on selected ports to power compact switches, high-power wireless access points, or connected lighting. The power is managed in a smart fashion such that only the amount of power the endpoint needs is delivered to it and not wasted. As a result, the switches can support devices that require more power, such as 802.11ac wireless access points, video-based IP phones, surveillance cameras, and more.

Technical Specs

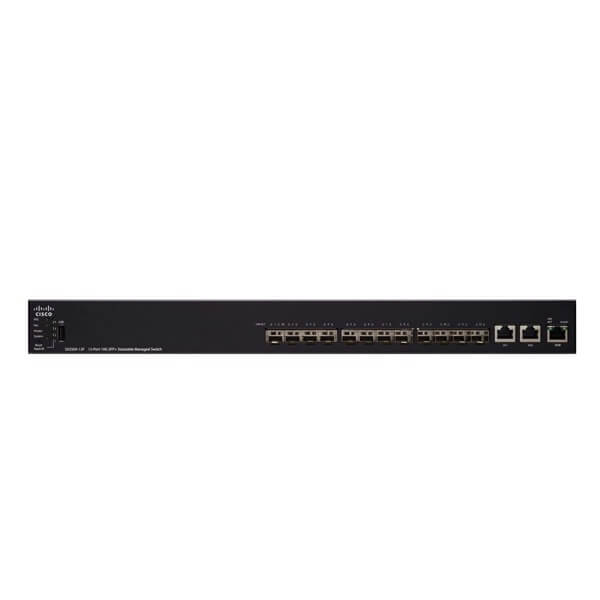

Product Name Cisco SX550X-12F 12-Port 10G SFP+
Manufacturer Part Number SX550X-12F-K9-UK
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology 10 Gigabit Ethernet
Number of Total Expansion Slots 12
Product Family 550X
Stack Port Yes
Media Type Supported Optical Fiber
Total Number of Network Ports 12
Expansion Slot Type SFP+
Layer Supported 2
Number of SFP+ Slots 12
Modular Yes
Port / Expansion Slot Details 12 x 10 Gigabit Ethernet Expansion Slot
Product Series 550X
Product Model SX550X-12F
Network Technology 10GBase-X
