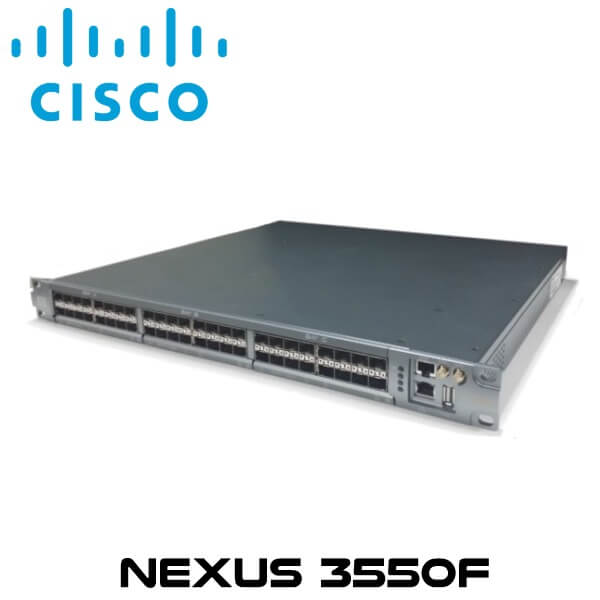

Cisco Nexus3550F Network Switch Dubai
The Cisco Nexus3550F Dubai Series provides programmable platform capabilities, fast layer 2 and 3 switching, high-speed multiplexing, precision timestamping and high-density layer 1 switching to power your ultra-low latency network applications.
The Cisco Nexus3550F Dubai Fusion is a compact, yet powerful networking platform designed specifically for low latency applications. The device features up to 48 ports of 10G Ethernet connectivity in a single rack unit form factor.
Features :
Ultra-low latency networking
Cisco Nexus3550F Dubai platforms and switches are designed and optimized for ultra-low latency applications.
Software-Defined Hardware
The Nexus 3550-T platform provides the performance characteristics of hardware plus FPGA agility and programmability of software.
Modular switch architecture
The Nexus 3550-F modular architecture provides the flexibility to scale connectivity options and implement FPGA device upgrades and functionality features.
High density layer 1 switching
The Nexus 3550-H are high-density layer 1 switches for date monitoring and distribution
Ease of use and manageability
The Cisco Nexus3550F Dubai products use a custom operating system and Command Line Interface (CLI), designed specifically to address the needs of layer 1 switching and low latency FPGA configuration. Every command available on the CLI is also available via a remote JSON RPC API making this device easy to operate and manage at scale.
Technical Specs
Latency
- L1 Tap/Patch : 3ns minimum – 5ns maximum
- FastMux : 39ns minimum – 48ns maximum
- Mux : 92ns minimum – 107ns maximum
- Mux (switch) : 86ns minimum – 102ns maximum
Statistics
- Packet counters (RX, TX, dropped etic)
- Per port status LEDs
- Live packet dump
- SFP diagnostics (light levels, temps, etc.)
- SNMP, local and remote syslog
- Time series logging to InfluxDB
Connectivity
- 3x 16 SFP+ line cards, up to 48 ports
- 3x 4QSFP line cards, up to 12 ports (48x10G)
- SFP+ Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 1000BASE-SX, 1000BASE-LX)
- SFP+ Copper Direct Attach
- SMA for PPS in/out
- SMA for GPS in
- RJ45 management port
- RJ45 Industry standard serial port
- USB (for firmware upgrades)
Management
- CLI via serial, SSH, and telnet
- JSON RPC API for all CLI commands
- Automatic configuration via DHCP
- TACACS+ and multiuser support
- ACLs on management interface
- FW updates via SFTP, TFTP, HTTP, and USB
- Onboard BASH and Python scripts
- Onboard Cron jobs
- Time sync via PPS, GPS, PTP, and NTP
General
- 19” 1RU, rack mount
- Weight : 11kg (24lbs)
- Dual, hot-swappable supplies
- Standard : AC 90-264V, 47-64 Hz, included IEC C13-C14 cables
- Optional : DC 40-72V
- Maximum consumption : 150W
- Dual hot-swappable fan modules
- Optional airflow direction
- Operating temperature : -5 °C to 45 °C
- Storage temperature : -40 °C to 70 °C
- Operating Relative Humidity : 5% to 90% (non-condensing)
- Storage Relative Humidity : 5% to 95% (non-condensing)
