Cisco CBS250-8PPE2G Dubai

Reviews

Cisco CBS250-8PPE2G Dubai

The Cisco CBS250-8PPE2G Dubai  is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 20 Gb/s switching capacity and 14.88 Mbps forwarding rate.

Ask for Quote & Get Low Price

Description

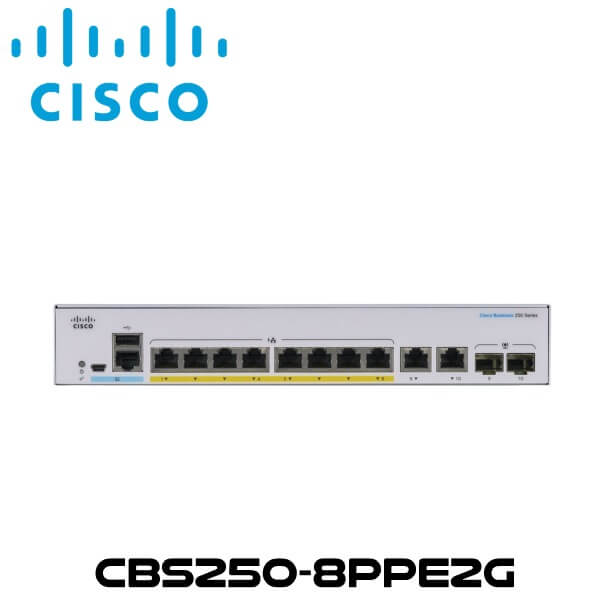

Cisco CBS250-8PPE2G Network Switch Dubai

Cisco CBS250-8PPE2G Dubai enables you to expand your business’s network capacity so as to support a variety of devices. The Cisco CBS250-8PPE2G Dubai is a managed rackmount switch that features 8 PoE+ compliant Gigabit Ethernet ports with a 45W budget to operate compatible devices such as IP security cameras, wireless access points, and VoIP phones. There are also two 1GbE fiber SFP / copper RJ45 combo ports available for high-speed uplink connections. Its extensive Layer 2 and Layer 3 features include link aggregation to create for multi-Gig connections to compatible devices. Its 20 Gb/s switching capacity and 14.88 Mbps forwarding rate help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS250-8PPE2G and its connected devices. The fanless design also helps to reduce power consumption while allowing the switch to operate silently in the background.

Features:

Performance

The Cisco CBS250-8PPE2G Dubai  is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 20 Gb/s switching capacity and 14.88 Mbps forwarding rate.

Power Over Ethernet

The 8 PoE+ compliant Gigabit Ethernet ports support up to 30W of power each, with a total budget of 45W to operate advanced surveillance cameras, videophones, thin client devices, and more.

Layer 3 Static Routing

Segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

Compact Design

With a sleek and compact, 1 RU design, the Cisco CBS250-8PPE2G Dubai can fit into wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Cisco CBS250-8PPE2G Dubai has support for the Energy Efficient Ethernet (IEEE 802.3az) standard which helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications

Interfaces
Ports
  • 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
  • 2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP)
  • 1 x USB Type-A (Console)
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols
  • Head-of-Line (HOL) Blocking
  • IGMP Snooping
  • IPv4
  • IPv6
  • Link Aggregation
  • MAC Filtering
  • Port Mirroring
  • RADIUS
  • SNMPv1
  • SNMPv2c
  • SNMPv3
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 8K
Multicast Groups 255
VLAN IDs 255
Security
Security Features
  • DoS Attack Prevention
  • RADIUS Authentication
  • Storm Control
Access Control List 512
IP Interfaces 16
Static Routes 32
SNMP Support 1, 2c, 3
Standards
RFC RFC 4330
Supported IEEE Standards 802.1d, 802.1q, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ad, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 14.88 Mpps
Switching Bandwidth 20 Gb/s
Priority Queues 8
Packet Buffer 1.5 MB
Computer
Flash Memory 256 MB
Processor 800 MHz ARM
Memory 512 MB
Electrical
Power Draw 66.02 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 45 W
PoE per Port 30 W
Power Supply Type Internal
Environmental
Operating Temperature 23 to 122°F / -5 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -13 to 158°F / -25 to 70°C
Storage Humidity 10 to 90%
General
Cooling System Passive
Mean Time Between Failures (MTBF) 1,706,649 Hours
Indicator Lights Link/Activity, PoE, Speed, System
Rack Form Factor 1 RU
Dimensions 10.6 x 7.3 x 1.7″ / 268 x 185 x 44 mm
Weight 3.37 lb / 1.53 kg
