Cisco CBS250-24FP4G Dubai

With a sleek and compact 1 RU design, the Cisco CBS250-24FP4G Dubai can fit into wiring closets and other installations within retail stores, offices, and other businesses.

Ask for Quote & Get Low Price

Description

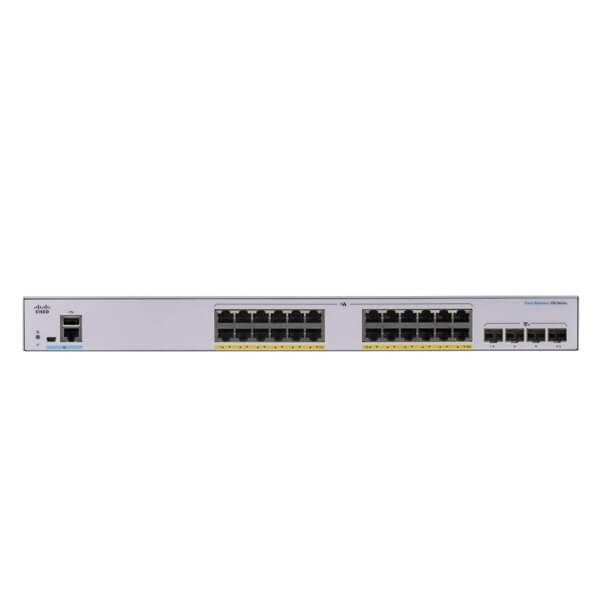

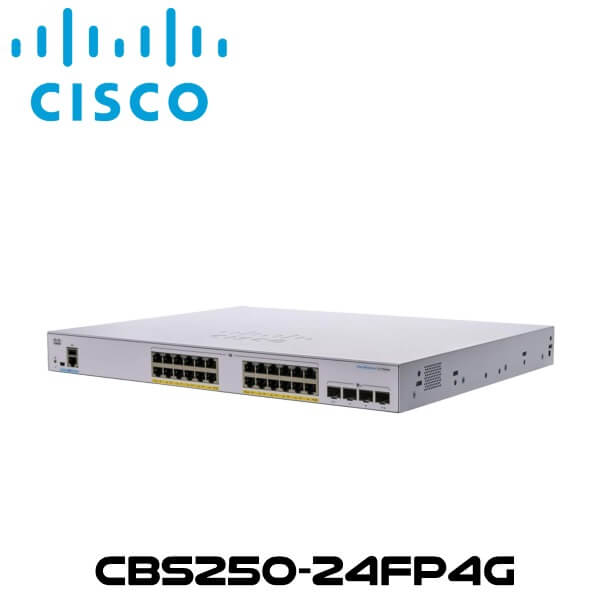

Cisco CBS250-24FP4G Network Switch Dubai

Cisco CBS250-24FP4G Dubai is a 24-port PoE+ – Compliant managed rackmount switch that offers high network performance to businesses that require a cost-effective network solution. It is equipped with 4 1GbE SFP ports that offer high-speed fiber connections, and is integrated with extensive Layer 2 and Layer 3 features which include link aggregation to create up to four groups of eight ports for multi-Gig connections to compatible devices.

Cisco CBS250-24FP4G Dubai comes with 56 Gb/s switching capacity and 41.66 Mbps forwarding rate which help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS250-24FP4G Dubai and its connected devices. The fanless design also helps to reduce power consumption while allowing the switch to operate silently in the background.

Features

Performance

The Cisco CBS250-24FP4G Dubai  is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 56 Gb/s switching capacity and 41.66 Mbps forwarding rate.

Power over Ethernet

The 24 PoE+ compliant Gigabit Ethernet ports support up to 30W of power each, with a total budget of 195W to operate advanced surveillance cameras, videophones, thin client devices, and more.

Layer 3 Static Routing

Segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

Compact Design

With a sleek and compact 1 RU design, the Cisco CBS250-24FP4G Dubai can fit into wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications

Interfaces
Ports
  • 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
  • 4 x 10/100/1000 Mb/s Gigabit SFP
  • 1 x USB Type-A (Console)
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols
  • Head-of-Line (HOL) Blocking
  • IGMP Snooping
  • IPv4
  • IPv6
  • Link Aggregation
  • MAC Filtering
  • Port Mirroring
  • RADIUS
  • SNMPv1
  • SNMPv2c
  • SNMPv3
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 8K
Multicast Groups 255
VLAN IDs 255
Security
Security Features
  • DoS Attack Prevention
  • RADIUS Authentication
  • Storm Control
Access Control List 512
IP Interfaces 16
Static Routes 32
SNMP Support 1, 2c, 3
Standards
RFC RFC 4330
Supported IEEE Standards 802.1d, 802.1q, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ad, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 41.66 Mpps
Switching Bandwidth 56 Gb/s
Priority Queues 8
Packet Buffer 1.5 MB
Computer
Flash Memory 256 MB
Processor 800 MHz ARM
Memory 512 MB
Electrical
Power Draw 449.7 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 370 W
PoE per Port 30 W
Power Supply Type Internal
Environmental
Operating Temperature 23 to 122°F / -5 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -13 to 158°F / -25 to 70°C
Storage Humidity 10 to 90%
Noise Level 34.8 dB
General
Cooling System Fan
Mean Time Between Failures (MTBF) 698,220 Hours
Indicator Lights Link/Activity, PoE, Speed, System
Rack Form Factor 1 RU
Dimensions 17.5 x 13.6 x 1.7″ / 445 x 345 x 44 mm
Weight 10.1 lb / 4.6 kg
Packaging Info
Package Weight 14.525 lb
Box Dimensions (LxWxH) 22.6 x 18.8 x 4.4″
