Description

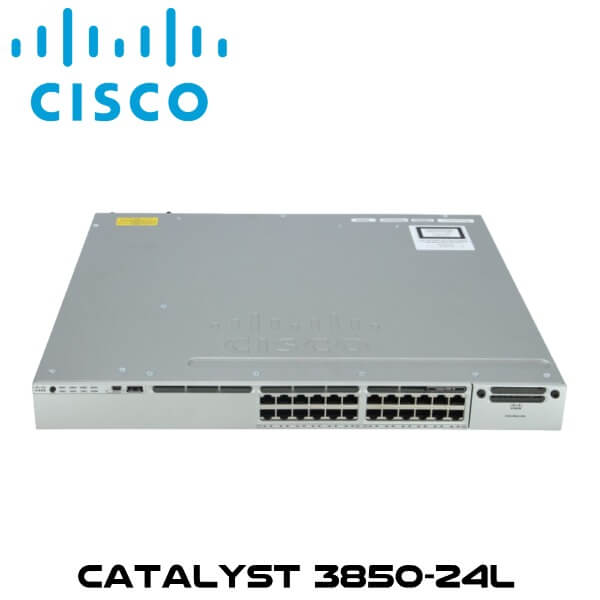

Cisco Catalyst3850-24L Network Switch Dubai

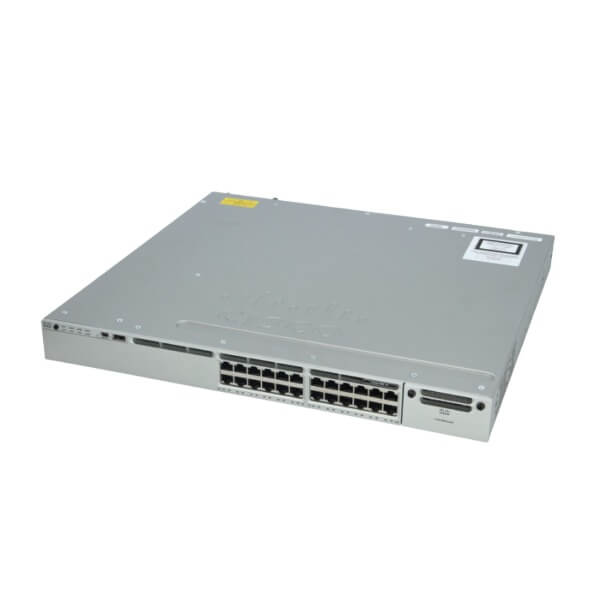

The Cisco Catalyst3850-24L Dubai is next generation stackable enterprise level switch and integrated with 24 Ethernet POE + ports with upgradeable LAN base IOS image. It is designed for access layer with 255 VLANs and IEEE802.3at POE+ standard supporting. The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) PoE and S-PWR (Stack Power). The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.
The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst3850-24L Dubai support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.
Features
QoS
The 3850 switch has advanced wired plus wireless QoS capabilities. It uses the Cisco modular QoS command line interface (MQC). The switch manages wireless bandwidth using unprecedented hierarchical bandwidth management starting at the per-access-point level and drilling further down to per-radio, per-service set identification (SSID), and per-user levels. This helps manage and prioritize available bandwidth between various radios and various SSIDs (enterprise, guest, and so on) within each radio on a percentage basis. The switch is also capable of automatically allocating equal bandwidth among the connected users within a given SSID. This makes sure that all users within a given SSID get a fair share of the available bandwidth while being connected to the network. The UADP ASIC enables the hierarchical bandwidth management and fair sharing of bandwidth, thereby providing hardware-based QoS for optimized performance at line-rate traffic.
In addition to these capabilities, the switch is able to do class of service (CoS) or differentiated services code point (DSCP) based queuing, policing, shaping, and marking of wired plus wireless traffic. This enables users to create common policies that can be used across wired plus wireless traffic. The 3850 also supports downloadable policy names from the Cisco Identity Services Engine (ISE) when a user successfully authenticates to the network using the ISE.
Security
The Cisco Catalyst 3850 provides a rich set of security features for wired plus wireless users. Features such as IEEE 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, IP Source Guard and control plane protection, wireless intrusion prevention systems (WIPSs), and so on enable protection against unauthorized users and attackers. With a variety of wired plus wireless users connecting to the network, the switch supports session-aware networking, in which each device connected to the network is identified as one session, and unique access control lists (ACLs) and/or QoS policies can be defined and applied using the ISE for each of these sessions, providing better control on the devices connecting to the network.
Resiliency
Cisco StackWise-480 Technology
Cisco StackWise-480 technology is built on the highly successful industry-leading StackWise® technology, which is a premium stacking architecture. StackWise-480 has a stack bandwidth of 480 Gbps. StackWise-480 uses Cisco IOS Software SSO for providing resiliency within the stack. The stack behaves as a single switching unit that is managed by an “active” switch elected by the member switches. The active switch automatically elects a standby switch within the stack. The active switch creates and updates all the switching/routing/wireless information and constantly synchronizes that information with the standby switch. If the active switch fails, the standby switch assumes the role of the active switch and continues to the keep the stack operational. Access points continue to remain connected during an active-to-standby switchover. A working stack can accept new members or delete old ones without service interruption. StackWise-480 creates a highly resilient single unified system of up to four switches, providing simplified management using a single IP address, single Telnet session, single CLI, auto-version checking, auto-upgrading, auto-configuration, and more. StackWise-480 also enables local switching in Cisco Catalyst 3850 Series Switches.
Cisco StackPower Technology

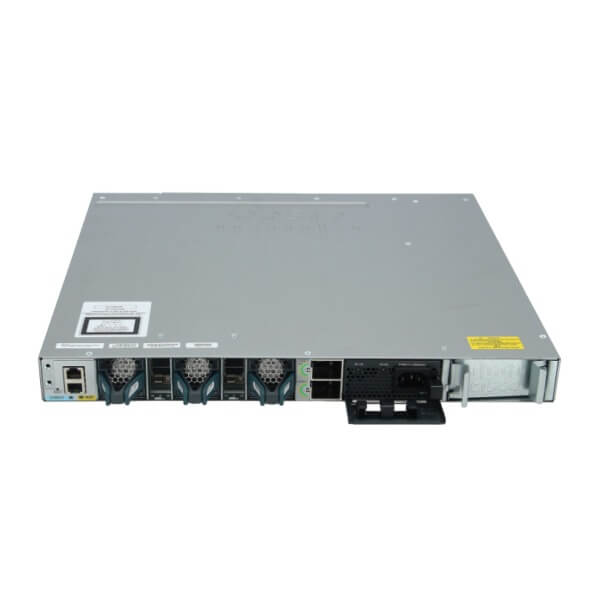

The Cisco Catalyst 3850 Series uses the Cisco StackPower technology present on the Cisco Catalyst 3850 Series. StackPower is an innovative power interconnect system that allows the power supplies in a stack to be shared as a common resource among all the switches. Cisco StackPower unifies the individual power supplies installed in the switches and creates a pool of power, directing that power where it is needed. Up to four switches can be configured in a StackPower stack with the special connector at the back of the switch using the StackPower cable, which is different than the StackWise-480 cables.
Technical Specs
WS-C3850-24P-L Specifications |
|
|
Model info : |
WS-C3850-24P-L |
|
Enclosure type |
Rack-mountable – 1U |
|
Ports |
24 x 10/100/1000 (POE+) |
|
Network management Interface |
|
|
Available PoE Power |
435W |
|
Switching Capacity |
92Gbps |
|
Maximum stacking number |
up to 9 switches with same IOS feature set in same series |
|
Stack Bandwidth |
480Gbps |
|
Forwarding Performance |
68.4Mpps |
|
FNF entries |
24,000 flows |
|
Maximum VLANs IDs |
1,000 |
|
MAC Address Table Size |
32K |
|
CPU |
Multicore CPU |
|
RAM |
4 G |
|
Flash Memory |
2 G |
| Wireless | |
|
Number of AP per switch/stack |
100 |
|
Number of wireless clients per switch/stack |
2000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
up to 20Gbps |
|
Supported Aironet AP series |
3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
1 network module slot and 1 power redundant slot |
|
Network Modules Selection |
|
|
Stacking cable |
|
|
Stack Power Cable (recommended) |
|
|
Power supply |
PWR-C1-715WAC |
|
Power Device |
Power supply – redundant – plug-in module |
|
Power Redundancy |
optional |
|
Voltage range (Auto) |
100V-240V |
|
Power Consumption of standalone (in Watts) |
88.32 (max) |
| Miscellaneous | |
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
17.7 Inches (44.5 Cm) |
|
Height |
1.75 Inches (4.45 cm) |
|
Weight |
16.3 Pounds (7.4Kg) |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
269,450 |
|
Compliant Standards |
|
| System software / license | |
|
System software |
IOS LAN Base (Upgradable) |
|
EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
Software license |
|
|
Access Point Licenses |
|
|
Features |
|
|
Advanced Network security |
|
|
Management |
|
|
Technical Support and Services |
|
|
Environmental Ranges |
|
|
With AC power supply Operating environment and altitude |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception up to 5000 feet (1500 m) |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
