Cisco Aironet1572EC Dubai

Reviews

Cisco Aironet1572EC Dubai

The Cisco Aironet1572EC Dubai provides higher throughput over a larger area with more pervasive coverage. The AP is also well suited to high-density environments where many users in close proximity generate RF interference that needs to be managed.

Ask for Quote & Get Low Price

Description

Cisco Aironet1572EC Access Point Dubai

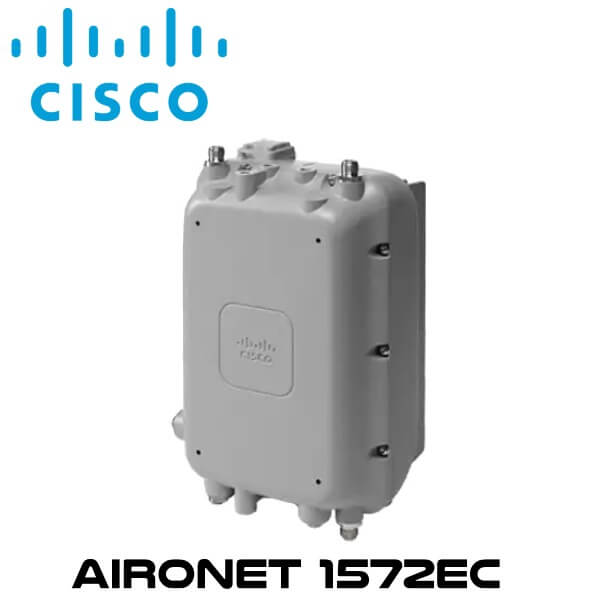

The Cisco Aironet1572EC Dubai outdoor access point is ideal for both enterprise and carrier-class network operators looking to extend Wi-Fi coverage outdoors. It’s the industry’s highest-performing outdoor AP and supports the latest Wi-Fi standard, 802.11ac, with data connection speeds up to 1.3 Gbps. The industrial-grade Cisco Aironet1572EC Dubai supports 4×4 Multiple-Input and Multiple-Output (MIMO) smart antenna technology and three spatial streams for optimum performance.

The Cisco Aironet1572EC Dubai provides higher throughput over a larger area with more pervasive coverage. The AP is also well suited to high-density environments where many users in close proximity generate RF interference that needs to be managed. Examples of environments that can benefit from the Aironet 1570 Series:

  • Outdoor university and school campuses
  • Public venues: stadiums, train stations, airports
  • Service provider networks: Wi-Fi offload for mobile, fixed-line, and cable operators
  • Mining operations
  • Manufacturing yards
  • Municipalities
  • Large metropolitan areas

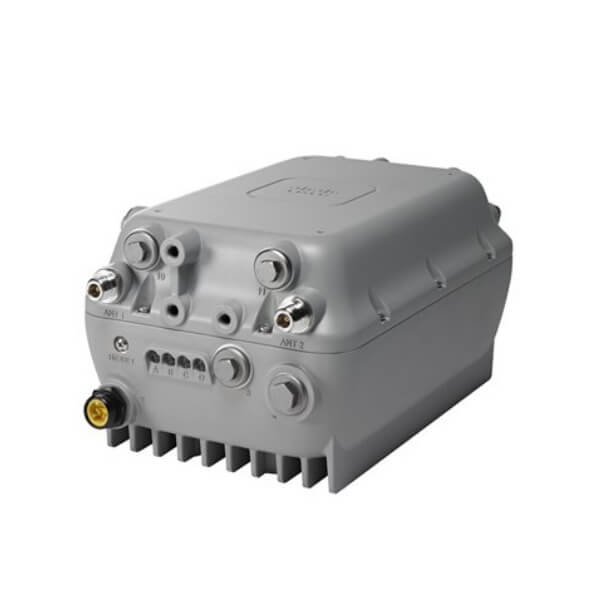

Cisco Aironet1572EC Dubai access points are equipped with four separate N-type female connectors that carry dual-band signals or, through software control, can be configured such that the bottom pair of connectors carry only 2.4-GHz signals and the top pair carry only 5-GHz signals. This gives users multiple configuration options.

Features:

802.11ac support with 4×4 MIMO, three spatial streams-Delivers higher data rates over a greater area with pervasive coverage than any competing AP. Provides a data rate of up to 1.3 Gbps, roughly triple the rates offered by today’s high-end 802.11n access points.

Maximum RF radiated power allowable on both 2.4 and 5 GHz radios- Lets you use the fewest number of APs to get the greatest possible area coverage and highest throughput rates.

Modular architecture design- The architecture of the Cisco Aironet1572EC Dubai models provides the flexibility for a potential add-on module for future proofing and investment protection. For example, you could add external modules with technology options such as a 4G LTE picocell or a sensor. Such a module could be field-upgradeable to an existing 1570 network.

GPS support- Keeps track of the location of all outdoor APs deployed. With a built -in GPS receiver, the coordinates of the AP can be located by your WLAN controller or management system.

Technical Specs:

Miscallaneous
Compliant Standards ANSI C62.41, ICES-003, FCC Part 15.247, OET 65 C, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, NEMA Type 4X, UL 60950-1 Second Edition, FCC Part 15.107, FCC Part 15.109, AS/NZS 4268, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, IP67, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 300 328, EN 301 489-1, EN 301 893, EN 301 489-17
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 1.3 Gbps
Line Coding Format CCK
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Spread Spectrum Method DSSS
Network / Transport Protocol L2TP, IPSec
Remote Management Protocol CLI
Frequency Band 2.4 GHz, 5 GHz
Status Indicators Status, uplink
Features Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, pole mountable, Maximum Ratio Combining (MRC), 4T4R MIMO technology, GPS sync compatible, ClientLink 3.0 technology, cyclic shift diversity (CSD), Cisco Flexible Antenna Port technology, power over cable (PoC), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, diplex filter split of 5-42 / 88-1000 MHz
Encryption Algorithm LEAP, AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2
Authentication Method X.509 certificates, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
Manufacturer Warranty
Service & Support Limited warranty – 1 year
Service & Support Details Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 149 °F
Communications
Protocols & Specifications NA-DOCSIS3.0
General
Device Type Wireless access point
Ruggedized Design Outdoor
Built-in Devices GPS
Width 7.9 in
Depth 6.3 in
Height 11.8 in
Weight 13.45 lbs
Localization Puerto Rico, United States
Expansion / Connectivity
Interfaces
  • 1 x 1000Base-T (PoE+) – RJ-45
  • 4 x antenna – N connector
  • 1 x – SFP (mini-GBIC)
  • 1 x console – RJ-45
  • 1 x antenna
  • 1 x modem
Power
Power Over Ethernet (PoE) Supported UPOE
Voltage Required DC 10 – 16 V
