Blackmagic AtemMini Pro Dubai

Reviews

Blackmagic Atem Mini Pro Dubai

The Blackmagic Atem Mini Pro Dubai supports direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. It also has a multi-view with 4 cameras, media, preview and program plus status of recording, streaming and audio.

Ask for Quote & Get Low Price

Description

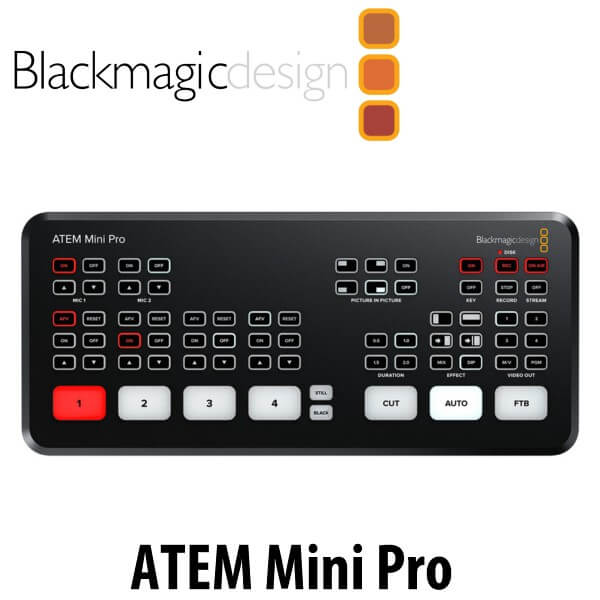

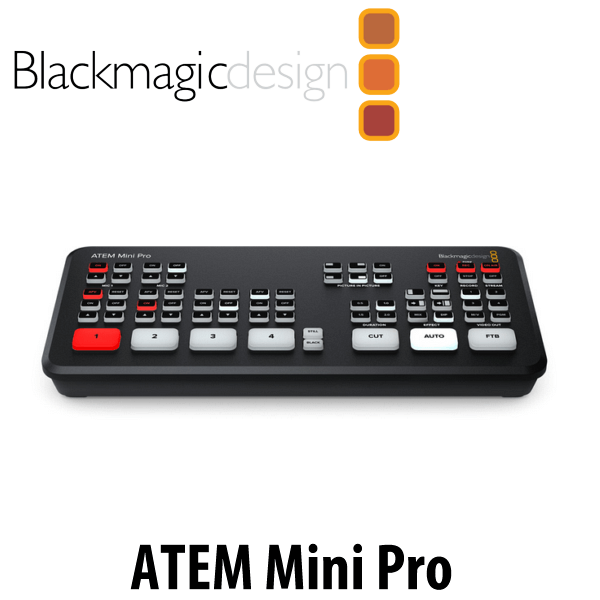

Blackmagic Atem Mini Pro HDMI Live Stream Switcher Dubai

The Blackmagic Atem Mini Pro Dubai is a fast and easy-to-use HDMI Live Stream Switcher that comes equipped with 4 standards converted HDMI inputs. It is also fitted with numerous features such as a USB webcam out, Fairlight audio mixer with EQ and dynamics, HDMI out, DVE for picture in picture, green screen chroma key, transition effects, 20 stills media pool for titles and free ATEM Software Control.

The Blackmagic AtemMini Pro Dubai supports direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more.Blackmagic AtemMini Pro also has a multi-view with 4 cameras, media, preview and program plus status of recording, streaming and audio.

Key Features

  • 4-Channel Live Stream HDMI Switcher
  • Program and 4 x Input ISO Recording
  • Generates DaVinci Resolve Project
  • Live Tally, Stream, and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer per Source
  • HDMI Output, Ethernet ATEM Control
  • Media Player, Computer Input Support
  • Upstream and Downstream Keyers
  • DVE Transition, Chroma/Luma Keyers

Technical Specifications

Upstream Keyers

1

Downstream Keyers

1

Advanced Chroma Keyers

1

Linear/Luma Keyers

2

Transition Keyer

DVE only.

Total Number of Layers

5

Pattern Generators

1

Color Generators

2

DVE with Borders and Drop Shadow

1

Interface

Minimum monitor resolution of 1366 x 768.

Audio

Audio Mixer

  • 6 input x 2 channel mixer.
  • Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
  • Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input

Unbalanced stereo

Analog Input Delay

Up to 8 frames

Input Impedance

1.8k

Max Input Level

+6dBV

Mic Plug In Power

Available on both 3.5mm mini jack connections.

Streaming

Direct Streaming

ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording

Direct Recording

1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.

Media Format

Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

Multi View Monitoring

1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard

HD

Media Player

Media Players

1

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

20 with fill and key.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel

Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.

Control Panel Compatibility

Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.

Control Panel Included

ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.

Software

Software Updates

Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Power Requirements

Power Supply

1 x External 12V power supply.

Power Usage

30W
