A desktop restarts during invoice posting. The router drops while the accounts team is uploading VAT files. The CCTV recorder loses power for ten minutes, then the shop manager finds a gap in the footage. Small power events look minor until they interrupt the one machine, network switch, or NVR that everyone depends on.

That is the buyer moment for this UPS. Not a data centre project. Not a rack server load. A Dubai office, warehouse, clinic, retail counter, reception desk, or small IT room that needs enough battery backup to ride through short outages and enough voltage correction to stop daily power noise from damaging equipment.

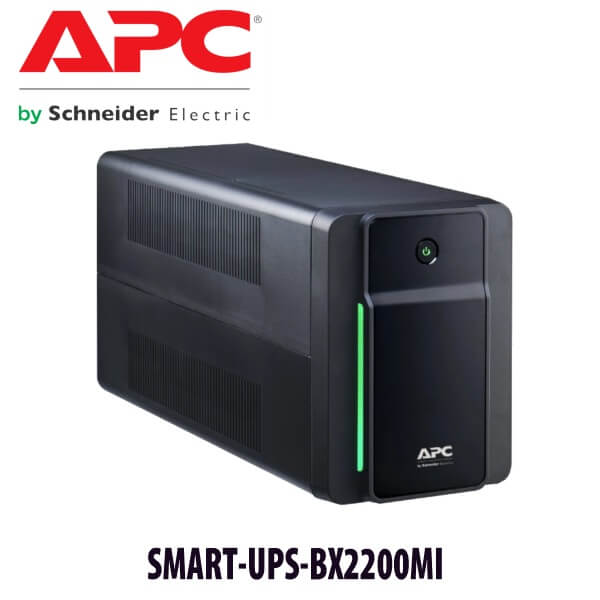

The APC Back-UPS BX2200MI is a 2200VA / 1200W tower UPS for office electronics and small network loads. It gives battery backup, surge protection, automatic voltage regulation, USB monitoring, and RJ45 Ethernet line protection in a floor-standing unit with 6 IEC C13 output sockets.

Vector Digital Systems supplies APC UPS systems across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We do not sell a UPS by VA rating alone. We ask what you are connecting, calculate the wattage, and tell you whether the BX2200MI is enough or whether the load needs a Smart-UPS instead.

What the APC BX2200MI is built for

The BX2200MI sits in the APC Back-UPS range. That means the target use is office and small business protection: PCs, monitors, routers, switches, modems, NAS boxes, CCTV/NVR systems, access control controllers, POS counters, and small network cabinets. It is not a rackmount online UPS. It is not built for large server rooms. It is a tower UPS for practical load protection where downtime is annoying, costly, or messy.

A common Dubai example: the main Etisalat or du internet router, one firewall, one 8-port or 24-port switch, a Wi-Fi controller, and a small NVR in a reception-side IT cabinet. The power cuts for a few minutes during electrical maintenance or DB work. Without a UPS, internet drops, CCTV stops, card machines fail, and the team starts using mobile hotspots. With the right UPS, the network stays up long enough for power to return or for the equipment to shut down cleanly.

Another example: an Al Quoz warehouse office running one desktop used for invoicing, a label printer, a router, and a small switch. The BX2200MI can protect the electronics that should not restart every time the voltage dips. It is also useful in JAFZA, DIP, DAFZA, Ras Al Khor, and Sharjah industrial offices where load changes, generators, and long electrical runs can create nuisance power events.

The right way to buy it is simple: list every device you plan to connect, check the wattage, then leave headroom. Do not fill a 1200W UPS to 1200W. A practical office load should sit lower than the rating so the UPS has room for startup behaviour, battery ageing, and future device changes.

APC BX2200MI specifications

What those specs mean in a real UAE office

2200VA / 1200W: The VA number tells you the apparent power rating. The watt number tells you the real connected load limit. Use 1200W when sizing. For mixed office equipment, we normally keep the connected load below the maximum rating, especially where battery age and summer heat may reduce runtime over time.

Line-interactive topology: The UPS sits between the wall supply and your equipment. During normal power, it passes utility power through while correcting voltage with AVR. During an outage, it transfers to battery. This is the right class for many office electronics, network devices, desktops, and small CCTV loads.

Automatic Voltage Regulation: AVR corrects low and high input voltage without switching to battery every time. In offices where voltage dips happen during AC compressor starts, lift activity, generator changeover, or weak DB circuits, AVR helps reduce unnecessary battery use and gives connected devices a cleaner supply.

6 IEC C13 outlets: The BX2200MI gives six battery-backed and surge-protected IEC C13 sockets. This fits many UAE IT setups because routers, switches, small NAS units, monitors, and desktop power cords often already use IEC cabling. If your devices use UAE 3-pin plugs, we check the cabling during quote so the delivered setup is usable on day one.

IEC C20 input: This model does not use a small C14 input. It uses IEC C20 input. That detail matters during installation because the input cable and wall-side connection must match the office power point. We confirm this before delivery for Dubai and UAE projects.

Stepped approximation to sine wave: This output type is common in Back-UPS units. It is suitable for many office devices, but not every load likes it. For production rack servers, medical equipment, high-end audio, or sensitive active PFC loads, ask us to size a sine wave Smart-UPS or online UPS.

0°C to 40°C operating range: This is important in Dubai. A UPS sitting in a closed cabinet beside an unventilated CCTV rack can run hot. Heat shortens battery life. For warehouses, retail back rooms, and small server closets, we check airflow and placement so the UPS is not trapped behind equipment with no ventilation.

USB monitoring and power management

The BX2200MI includes a USB interface for local monitoring. For a single PC, workstation, NAS, or small office machine, USB monitoring allows the connected system to detect UPS battery status and take action when mains power fails. That action may be a safe shutdown after a set time or a shutdown when the battery reaches a low level.

This matters because a UPS is not only about keeping equipment alive for a few minutes. It is also about stopping dirty shutdowns. File corruption, failed updates, damaged CCTV recordings, and broken accounting files usually come from the sudden loss of power, not from the outage itself.

For small offices, the practical setup is direct. Connect the device that needs shutdown control over USB. Configure the power software. Test one controlled shutdown. Label the cables. Then leave the UPS alone except for battery checks and alarm response. No mystery. No guessing when the beeping starts.

The front LED status display and audible alarm give local indication for normal power, battery operation, and low battery conditions. In a retail counter, clinic reception, or warehouse office, that local alarm is often enough. Someone hears it, checks power, and shuts down the connected workstation or NVR if the outage is not clearing.

RJ45 Ethernet surge protection

The BX2200MI includes RJ45 10/100/1000 Base-T Ethernet protection. This is useful where the network line runs near electrical cabling, through a small IT cabinet, or between office areas. It is not a replacement for proper earthing, surge protection at the DB, or correct network design. But it adds one more layer between network equipment and common line-side surge events.

For Etisalat and du internet setups, the most common load we see is modem or ONT, firewall, small switch, and Wi-Fi access point. Protecting only the desktop PC is a mistake if the internet equipment has no backup. The PC stays on, but nothing works because the router is dead. The better layout is to protect the small network core first, then add workstation backup where needed.

For CCTV, the same logic applies. If the NVR is backed up but the PoE switch is not, cameras may drop. If the PoE switch is backed up but the NVR is not, recording stops. We size the UPS around the full chain: cameras, PoE load, NVR, network switch, and router where remote viewing is required.

Where Vector Digital Systems normally deploys the BX2200MI

We normally quote the BX2200MI for small and mid-sized office points, not full server racks. Reception desks in clinics. Accounting PCs in trading companies. Router and switch backup in Business Bay offices. CCTV recorders in retail shops. POS systems in cafés. Small warehouse network corners in Al Quoz, DIP, Ras Al Khor, and JAFZA.

It also works well as a local UPS for branch equipment. A company with head office in Dubai and a branch in Sharjah or Abu Dhabi may not need a full rack UPS at the branch. It may only need stable backup for the internet router, firewall, switch, and one workstation. That is the sort of load where the BX2200MI makes sense.

The key is matching the UPS to the load. Too small, and runtime is poor. Too basic, and the output waveform may not suit the equipment. Too large, and the buyer wastes budget that should have gone into proper earthing, rack airflow, or battery replacement planning. We keep it practical: device list first, UPS model second.

Power, battery, and cooling behaviour

The BX2200MI uses a 24V lead-acid battery system with an 8-hour typical recharge time. That recharge time matters in UAE offices where power problems can happen more than once in the same day. After a long outage, the battery will not be back at full capacity immediately. If the UPS discharged heavily at 10AM, do not assume it has full runtime again by noon.

Battery life also depends on temperature. APC lists the operating temperature range as 0°C to 40°C. In Dubai, the UPS may sit inside a closed wooden cabinet, behind a reception desk, next to a CCTV recorder, or in a small IT room where the AC is switched off at night. That is how batteries age early. Heat does not need to destroy the UPS on day one. It slowly cuts battery runtime until the first real power cut exposes the problem.

For offices in Business Bay, Deira, JLT, DMCC, Al Quoz, DIP, JAFZA, DAFZA, and Sharjah industrial areas, we normally check three things before recommending placement: airflow around the UPS, load wattage, and whether the UPS will be reachable when the alarm sounds. A UPS buried under a counter with no ventilation and no access is not a good installation.

The unit is rated at 40 dBA noise at 1 metre. That is acceptable for most office corners, small IT rooms, CCTV cabinets, and retail back-office areas. Still, it is not a silent decorative device. Put it where it can breathe, where staff can hear the alarm, and where the input and output cables are not strained.

What not to connect to the BX2200MI

The BX2200MI is a practical office UPS, but it is not the answer for every load. The output waveform is a stepped approximation to a sine wave. That is fine for many PCs, network devices, routers, switches, NVRs, monitors, and basic office electronics. It is not what we choose for production rack servers, high-end storage, medical devices, lab equipment, large printers, copiers, motors, or heavy active PFC loads.

Printers and photocopiers are the common mistake. A laser printer may draw a heavy peak load during warm-up. Connect it to the wall, not the battery outlets. If the printer needs surge protection, we can quote the right protection device separately. Do not waste UPS capacity on a load that should not be there.

Another mistake is using the full 1200W rating on day one. A UPS sized at the edge will have poor runtime, more stress, and less room for battery ageing. If your device list comes close to 1200W, we quote a larger model. Not because it sounds better. Because the UPS has to work during the fault, not just look correct on paper.

Grey market and wrong-region UPS warning

UPS products look easy to buy online. Same model number. Same black tower. Same VA rating. But the wrong unit can create problems after delivery: wrong input cable, wrong outlet type, missing regional warranty, old battery stock, or a box that has been sitting in a warehouse long enough for the battery to age before the customer even opens it.

This matters more with UPS systems than many buyers realise. A UPS contains batteries. Battery age, storage temperature, and region-specific warranty support all affect the real value of the unit. A cheap listing is not cheap if the battery fails early or the replacement process becomes a fight.

For Dubai and UAE buyers, we check the exact model, socket format, input connection, warranty position, and battery condition before quoting. The BX2200MI uses 6 IEC C13 outlets and an IEC C20 input connector. If your office devices use UAE 3-pin plugs, we tell you what cables are needed. No surprise at installation.

Vector Digital Systems supplies business-grade UPS hardware with invoice, warranty support, and practical installation guidance. Not just a box dropped at reception.

What Vector Digital Systems provides with the APC BX2200MI

Load checking before quote: Send us the equipment list or a photo of the power adapters. We check the watts, cable type, and whether the BX2200MI is the right UPS. This is the step that prevents undersized UPS orders.

UPS supply across all 7 UAE emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Single-unit supply for offices and project quantities for IT teams, contractors, fit-out companies, clinics, retail groups, and warehouse sites.

Installation guidance: We help confirm placement, input power, output cabling, device priority, and whether the UPS should protect the network core, workstation, NVR, or all of them. For larger jobs, we can arrange site installation and cable organisation.

UPS replacement and upgrade planning: If you already have old APC Back-UPS units beeping, failing self-test, or shutting down too early, we can quote replacements or higher models. Sometimes the right answer is a new battery. Sometimes the whole UPS is no longer worth saving.

AMC and support: For offices with multiple UPS units, we can include UPS checks inside annual maintenance. Battery health, load review, alarm response, and replacement planning are easier when they are tracked before a failure.

Network and CCTV context: Vector Digital Systems also handles network infrastructure, firewall, CCTV, IP PBX, and server-room work. That helps because a UPS rarely stands alone. It supports routers, switches, recorders, PCs, and the services the business depends on.

Typical BX2200MI use cases

Office internet backup: Etisalat or du router, firewall, small switch, and Wi-Fi controller. The goal is simple: keep internet and internal network up during short power cuts or electrical maintenance.

CCTV and NVR backup: Small NVR, network switch, and router for remote viewing. For PoE camera loads, we calculate the switch wattage properly because cameras add up fast.

Reception and POS counters: One PC, monitor, card machine, router, and small switch. Useful for clinics, salons, cafés, small retail shops, and service counters where a sudden shutdown interrupts customers.

Accounting and admin workstations: A workstation running billing, inventory, ERP client software, or document work. The goal is clean shutdown and enough runtime to save work.

Small branch office network: Router, firewall, switch, and one admin PC in a branch office in Abu Dhabi, Sharjah, Ajman, or Ras Al Khaimah. Right when a rackmount UPS would be too much for the actual load.

Frequently asked questions — APC BX2200MI Dubai

Is the APC BX2200MI really 2200W?

No. It is rated at 2200VA and 1200W. Use the 1200W number when calculating connected equipment. If your load is near 1200W, ask for a larger UPS quote instead of running this unit at the edge.

Can I use the BX2200MI for a Dell PowerEdge server?

For production rack servers, no. The BX2200MI uses stepped approximation to sine wave output and is built for office electronics and small network loads. For Dell PowerEdge servers, storage, VMware hosts, and rack cabinets, we normally quote APC Smart-UPS or online UPS models after load calculation.

How many devices can I connect to the BX2200MI?

It has 6 IEC C13 battery backup outlets, but outlet count is not the sizing limit. Wattage is. A router, firewall, switch, NVR, and one PC may be fine if the total load is within range. A PoE switch with many cameras or a high-power workstation may need a larger UPS.

Does it support UAE 3-pin plugs?

The BX2200MI output sockets are IEC C13, not UAE 3-pin universal sockets. Many IT devices already use IEC power cables. If your devices use UAE 3-pin plugs, tell us before ordering so we can advise the correct cabling or a different UPS model.

What warranty does the APC BX2200MI have?

The BX2200MI is listed with a 2-year repair or replace warranty. For UAE supply, warranty handling depends on authorised channel availability and invoice source. Vector Digital Systems supplies with proper invoice and support guidance.

Is the BX2200MI available in Dubai?

Yes, it is available on enquiry in Dubai, with same-day quote on WhatsApp. Ready-stock depends on current channel availability. For project quantities, send the required unit count, delivery location, and connected load type.

Comparable APC UPS models

APC BX1600MI: Smaller Back-UPS tower option for lighter office loads. Better when the requirement is one PC, router, and basic peripherals, not a full small network corner.

APC BX2200MI: Higher Back-UPS tower capacity at 2200VA / 1200W with 6 IEC C13 outlets. Good for small office network and workstation protection when the load calculation fits.

APC Smart-UPS SMT series: Better fit for servers, active PFC power supplies, small racks, NAS units, and business-critical loads that need sine wave output and stronger monitoring options.

APC Smart-UPS SMC series: Practical step up where the buyer needs a business UPS but does not need the full feature set of larger Smart-UPS models.

Online UPS systems: Required where the load is sensitive, the site has unstable power, or the equipment cannot tolerate transfer time. Common for server rooms, medical systems, storage, and larger IT cabinets.

Africa, GCC, and MEA export from Dubai

Vector Digital Systems supplies UPS hardware from Dubai for customers across Africa, GCC, and South Asia. The BX2200MI is commonly requested for small office rollouts, branch routers, retail counters, CCTV/NVR backup, and workstation protection.

For Kenya, Uganda, Tanzania, Nigeria, Oman, Qatar, Bahrain, Saudi Arabia, and Maldives projects, we can quote project quantities with FOB Dubai pricing. Export buyers should share the destination country, unit count, plug and cabling requirement, and whether the UPS is for PC, network, CCTV, or mixed load.

For larger server-room and data-centre UPS requirements, we quote the correct APC Smart-UPS or online UPS range instead of forcing a Back-UPS model into the wrong job.
