When a Dubai data centre firewall is sized only on the headline number, trouble usually shows up later. IPS gets enabled. SSL inspection goes from “phase two” to mandatory. A second du Enterprise circuit lands. Then a new business unit asks for its own security zone, its own logs, and its own change window.

That’s where the Fortinet FG-6300F / FG-6301F makes sense. It’s not a branch firewall stretched too far. It’s a 3 RU FortiGate 6000F Series platform for high-throughput enterprise edge, data centre perimeter, carrier aggregation, and MSSP environments where 100G links, multiple tenants, and HA planning are part of the design from day one.

For UAE buyers, the two numbers to check first are simple: 239 Gbps firewall throughput and 60 Gbps threat protection throughput. The first tells you raw packet forwarding. The second tells you how much inspected traffic the box can handle with security services active. Procurement teams often see only the bigger figure. Network teams know the second one is the one that protects the design.

Built for 100G firewall designs, not small edge refreshes

The FG-6300F and FG-6301F sit in a different buying conversation from office firewalls. This is the platform you shortlist when the design includes 100G QSFP28 uplinks, 25G server or aggregation connectivity, multiple protected zones, and clear separation between tenants, departments, or hosted workloads. Think data centre edge at Gulf Data Hub. A banking DR site. A managed security platform serving several enterprise customers from one rack.

The interface mix supports that role: 4 × 40/100 GE QSFP28 slots, 24 × 1/10/25 GE SFP28 slots, 3 × 10 GE SFP+ slots, 2 × GE RJ45 management ports, 1 × USB, and 1 × console. It also includes dedicated HA connectivity, which keeps failover traffic away from normal production links.

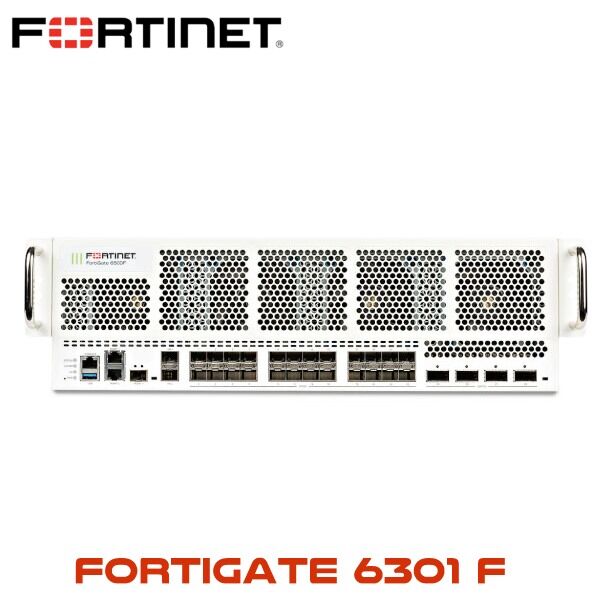

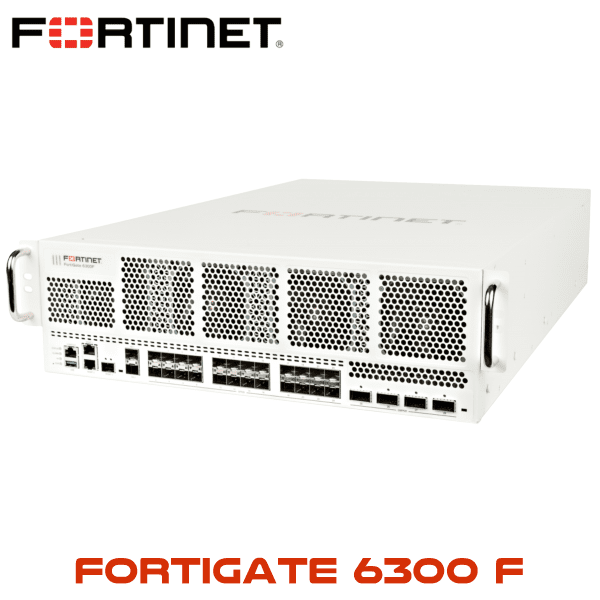

Both models deliver the same forwarding and inspection figures. The difference is storage. The FG-6301F adds 2 × 1 TB NVMe, useful when local logging is part of the requirement before forwarding logs to a central platform. The FG-6300F is the choice when the design sends logs directly to FortiAnalyzer or another approved log system.

FortiGuard licensing for the FG-6300F / FG-6301F

The hardware is only the platform. FortiGuard is what turns it into a protected security gateway. Without the right FortiGuard service bundle, the firewall can still pass traffic and apply policy, but IPS signatures, web filtering, antivirus definitions, sandbox lookups, and live threat intelligence are not doing the work most buyers expect.

For large UAE networks, the licence term matters as much as the hardware SKU. A 1-year term suits short budget cycles, project staging, or temporary capacity. A 3-year term gives cleaner renewal planning and usually fits better with enterprise procurement, especially for DIFC, DAFZA, JAFZA, and government-related environments where approval cycles are slow.

Fortinet FG-6300F / FG-6301F specifications

The table below keeps the buying numbers in one place. It’s useful for BOQ review, HA pair planning, rack allocation, power approval, and comparing the 6300F family against larger 6000F or chassis options.

HA and redundancy planning

Most FG-6300F and FG-6301F deployments should be discussed as an HA pair from the start. At this tier, downtime is rarely a “restart and check” issue. It can affect hosted customers, payment systems, branch VPN concentration, or security inspection between production and DR networks.

The platform supports high availability and includes dedicated HA ports. That keeps cluster heartbeat and sync traffic away from the data interfaces. For Dubai deployments using multiple Etisalat and du WAN circuits, the usual design is Active-Passive for clean failover, though Active-Active can be discussed where the traffic model and operational team justify it.

For multi-tenant setups, the 10 default VDOMs and 500 maximum VDOM scale make the 6300F family useful where one physical firewall must separate departments, subsidiaries, customer zones, or compliance domains. A DIFC financial services group may use separate VDOMs for internet edge, partner extranet, guest access, and regulated workload traffic. An MSSP may separate customers by VDOM while keeping centralised logging and policy control.

For the wider FortiGate range, compare this model with other enterprise firewalls on the FortiGate firewall Dubai page, especially if the project needs a smaller 2 RU model, a larger carrier platform, or a phased HA rollout.

3 RU rackmount deployment context

The Fortinet FG-6300F / FG-6301F is a 3 RU rackmount platform. Not a small edge box. It needs proper rack depth, front-to-back airflow planning, power allocation, and transceiver planning before the BOQ is signed off. In Dubai data centres, that also means checking cooling impact. One firewall drawing close to 1.2 kW at maximum load is not something to hide inside a generic rack note.

This model fits enterprise core security, data centre edge, carrier aggregation, MSSP platforms, and large multi-site VPN concentration. User count depends on policy design and traffic mix, but the FG-6300F / FG-6301F is usually considered for networks with 10,000+ users, large hosted workloads, or multi-tenant inspection where 100G and 25G interfaces are already in the switching plan.

For UAE projects, the common use cases are bank head office and DR sites, government networks, managed hosting, large education campuses, telecom edge, and enterprise data centres connected through Etisalat Business and du Enterprise WAN links. It also suits free zone groups with multiple legal entities, where separate VDOMs are needed for DMCC, JAFZA, DAFZA, or DIFC compliance boundaries.

Upgrading from older high-end FortiGate platforms?

If your current firewall estate is built around older high-end FortiGate appliances or chassis systems, the FG-6300F / FG-6301F changes the conversation in three areas: inspected throughput, interface density, and VDOM scale. The 60 Gbps threat protection figure gives architects a cleaner number for real traffic inspection than raw firewall throughput alone.

The 100G QSFP28 ports also reduce the need to burn multiple lower-speed links just to reach aggregation switches. In a Dubai data centre rack, fewer links can mean cleaner patching, fewer optics, less failure surface, and faster handover between network, security, and data centre operations teams.

Where the refresh cycle is still open, compare this platform against larger FortiGate 6000F and 7000F options if the design needs more than 60 Gbps threat protection, more interface slots, or carrier-style growth. For many enterprise and MSSP deployments, though, the FG-6300F / FG-6301F gives a strong middle point before moving into larger chassis buying cycles.

What’s in the box

The Fortinet FG-6300F / FG-6301F hardware package is built around the appliance, power supplies, rack mounting kit, and standard documentation set. The FG-6300F includes the firewall platform with 3 × AC power supplies. The FG-6301F includes the same base platform with 2 × 1 TB NVMe storage for local logging needs.

For project supply, confirm optics, DAC cables, power cable type, rack depth, FortiGuard bundle, FortiCare term, and logging platform in the same quote. Large firewalls rarely arrive alone. They arrive with QSFP28 optics, SFP28 optics, HA cabling, FortiAnalyzer sizing, implementation windows, and change control paperwork.

Related FortiGate models for Dubai projects

Not every data centre needs a 3 RU 6000F Series firewall. Some projects need a smaller 2 RU appliance. Others need a bigger chassis path. Use the related models below during early sizing, especially when the same tender includes head office, DR, branch VPN, and central logging.

UAE deployment notes

For Dubai and Abu Dhabi deployments, check WAN handoff speed before choosing optics. Many enterprise designs start with 10G and grow into 25G or 100G faster than expected, especially when cloud interconnect, DR replication, and SSL inspection are added after go-live. It’s cheaper to plan the uplink map properly than to redesign patching after the firewall is already in the rack.

Etisalat and du circuits also need failover planning. Dual ISP does not automatically mean clean failover. Route tracking, SD-WAN rules, BGP design, NAT behaviour, and application session handling all need to be tested under load. On a 6300F-class firewall, that testing should be part of the project, not a late-night surprise.

Free zone companies in JAFZA, DAFZA, DMCC, and DIFC often need traffic separation for audit, tenant, or business-unit reasons. VDOM planning helps here. So does clean naming, standard policy structure, central logging, and a FortiGuard term that doesn’t expire in the middle of a finance or compliance review.

Africa, GCC, and MEA export from Dubai

Vector Digital Systems supplies Fortinet FG-6300F and FG-6301F firewalls for enterprise and service provider projects across Saudi Arabia, Qatar, Oman, Bahrain, Kuwait, Egypt, Kenya, Nigeria, and South Africa. For larger projects, buyers usually request HA pairs with 3-year Enterprise bundles and optics listed in the same quote.

FOB Dubai pricing is available for resellers, integrators, and procurement teams shipping to Africa, GCC, and South Asia. For export jobs, share the model, FortiGuard bundle, term, power cable requirement, optics list, and destination country. Cleaner input means cleaner paperwork.

FAQ

What is the threat protection throughput on the Fortinet FG-6300F / FG-6301F?

The Fortinet FG-6300F / FG-6301F delivers 60 Gbps threat protection throughput. The firewall throughput is 239 Gbps. Use the 60 Gbps figure when sizing traffic with IPS, Application Control, Antivirus, and live security inspection enabled.

Does the FG-6300F / FG-6301F support HA?

Yes. The platform supports High Availability and includes 2 × 10 GE SFP+ HA ports. For Dubai data centre deployments, most buyers should plan this model as an HA pair with separate power, uplinks, and FortiGuard licensing for each appliance.

What is the difference between FG-6300F and FG-6301F?

The main difference is storage. FG-6301F includes 2 × 1 TB NVMe storage. FG-6300F does not list internal storage. Both models share the same 239 Gbps firewall throughput, 60 Gbps threat protection throughput, interface set, VDOM scale, and 3 RU rackmount form factor.

How many VDOMs does the Fortinet FG-6300F / FG-6301F support?

The FG-6300F / FG-6301F supports 10 VDOMs by default and up to 500 VDOMs maximum. This is useful for MSSPs, large enterprise groups, and free zone companies that need separate security domains on one firewall platform.

What FortiGuard bundles are available for FG-6300F / FG-6301F?

UTP Bundle and Enterprise Bundle are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud, and Botnet protection. Enterprise adds FortiCASB, FortiConverter, Industrial Security, and IoT Detection.

Is the Fortinet FG-6300F / FG-6301F suitable for Etisalat and du WAN links?

Yes. The platform is suitable for large Etisalat and du WAN deployments, including dual ISP, BGP, VPN concentration, SD-WAN, and 100G uplink designs. Final sizing should use inspected throughput, interface count, VPN load, SSL inspection, and HA requirements.
