A 100G data centre edge doesn’t fail loudly at first. It starts with small things. IPS latency during peak replication. SSL inspection bypassed “temporarily”. A second WAN circuit from Etisalat or du added without enough inspection headroom. Then the procurement team asks why a firewall rated in terabits can’t safely inspect the traffic it’s passing.

That’s the sizing problem the FortiGate 7121F is built for. Not a branch. Not a normal enterprise perimeter. This is a 16U chassis firewall for carrier, ISP, hyperscale, government, banking, and large multi-tenant data centre networks where 100GE and 400GE links are already part of the design.

For Dubai deployments, the buying discussion should always include two numbers together: 1.89 Tbps firewall throughput and 520 Gbps threat protection throughput. The second number is the one that matters when IPS, application control, URL filtering, malware protection, and sandboxing are active. Raw firewall throughput alone doesn’t tell the real story.

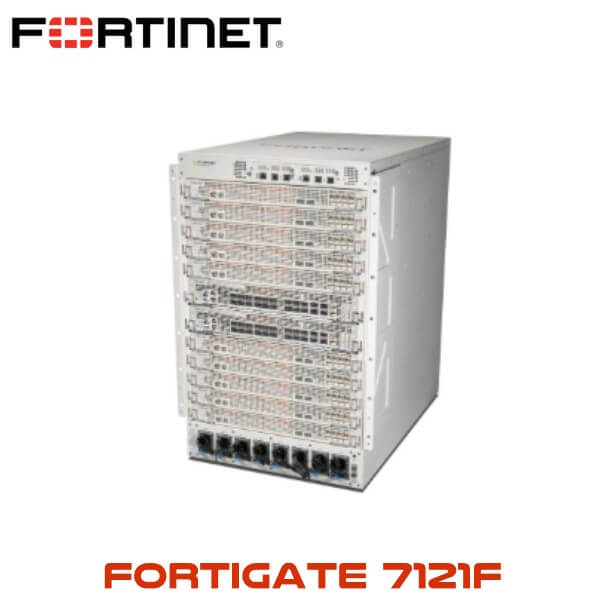

FortiGate 7121F firewall for Dubai carrier and data centre networks

The FortiGate 7121F sits in the FortiGate 7000F chassis family. It is designed for very large security edges: service provider cores, internet gateway clusters, cloud exchange environments, national infrastructure, banking networks, and multi-tenant hosting platforms. In UAE projects, that usually means racks inside Equinix DX1/DX2, Khazna, Gulf Data Hub, bank-owned data centres, government facilities, or carrier rooms connected to Etisalat and du enterprise circuits.

This is not the firewall a buyer chooses because a spec sheet looks big. It needs proper planning. Port maps, HA paths, VDOM count, FortiGuard term, management access, power feeds, heat output, and transceiver selection all affect the final design. A FortiGate 7121F HA pair also needs rack space and cooling budget reserved before the purchase order is issued.

Vector Digital Systems supplies FortiGate 7121F hardware and FortiGuard licensing in Dubai for UAE, GCC, Africa, and South Asia projects. For buyers comparing FortiGate firewall options before sizing, start with the FortiGate firewall Dubai hub page, then shortlist by inspected throughput rather than headline firewall speed.

FortiGuard licensing: UTP Bundle and Enterprise Bundle

The hardware is the platform. The licence is the protection. Without a FortiGuard subscription, the FortiGate operates as a stateful firewall only. IPS signatures, web filtering, antivirus definitions, FortiSandbox Cloud, and live threat intelligence feeds require the correct bundle.

For the FortiGate 7121F, most Dubai and GCC customers choose either a 1-year or 3-year FortiGuard term at purchase. A 3-year term usually gives a lower per-year cost and avoids renewal gaps on large chassis projects. This matters when the appliance is protecting DIFC finance systems, government tenant networks, or a colocation platform with customer-facing SLAs.

FortiGate 7121F technical specifications

The 7121F is a chassis firewall, so the interface layout depends on the selected FIM and FPM module configuration. The common FG-7121F and FG-7121F-2 builds are used in high-density 100GE, 25GE, and 400GE designs. For Dubai carrier and data centre projects, the interface plan should be locked before procurement because 100G optics, 400G optics, HA links, logging links, and management links can change the final bill.

Specification	Detail
Firewall Throughput	1.89 / 1.88 / 1.129 Tbps for 1518 / 512 / 64 byte UDP packets
Threat Protection Throughput	520 Gbps
NGFW Throughput	550 Gbps
IPS Throughput	675 Gbps
SSL Inspection Throughput	540 Gbps
Application Control Throughput	1.5 Tbps
IPsec VPN Throughput	630 Gbps
SSL-VPN Throughput	13.7 Gbps
Concurrent Sessions	1 billion
New Sessions Per Second	9 million
Form Factor	16U chassis-based rackmount
Chassis Slots	12 slots: 2 FIM slots and up to 10 FPM slots
Backplane	1 Tbps fabric backplane and 50 Gbps base backplane
VDOMs	10 default / 500 maximum
HA Support	Active-Active FGSP, Active-Passive, Clustering
Onboard Storage	4 x 4 TB SSD
Power Supply	Eight hot-swappable PSUs, AC or DC options
Power Consumption	8296W average / 9754W maximum
Heat Dissipation	33,261 BTU/h maximum

Interface density for 100G and 400G designs

The FortiGate 7121F is normally discussed with network architects, not only security teams, because the port plan is part of the architecture. The platform supports high-speed hardware accelerated interfaces for 400GE QSFP-DD, 100GE QSFP28, 40GE QSFP+, 25GE SFP28, and 10GE SFP+ designs depending on module selection.

Interface Group	Available Ports / Slots
400GE / 100GE / 40GE	4 hardware accelerated QSFP-DD / QSFP28 / QSFP+ slots
100GE / 40GE	56 hardware accelerated QSFP28 / QSFP+ slots
100GE / 40GE management and HA	4 hardware accelerated QSFP28 / QSFP+ slots
25GE / 10GE	80 hardware accelerated SFP28 / SFP+ slots
25GE / 10GE management and HA	4 hardware accelerated SFP28 / SFP+ slots
GE management	4 GE RJ45 management ports
Console and USB	14 console ports and 2 USB ports
Included optics	4 x 10GE SFP+ SR transceivers

High Availability and redundancy

On a FortiGate 7121F project, HA is not an extra line at the bottom of the quote. It is usually the design. Large UAE buyers deploy chassis firewalls as pairs because a single chassis can still be affected by upstream maintenance, data hall power work, fibre faults, or planned service windows.

The 7121F supports Active-Active FGSP, Active-Passive, and clustering. FortiGate 7000F deployments commonly use two chassis in an Active-Passive cluster, with dedicated high-speed heartbeat and management interfaces. For multi-tenant data centres, separate VDOMs can be used for tenants, departments, regulatory zones, or hosted security contexts.

Power is part of the HA discussion too. The FortiGate 7121F platform uses eight hot-swappable power supplies, with AC and DC options depending on the ordered chassis. For Dubai data centres where cooling and power allocation are controlled per rack or cage, the maximum 9754W draw and 33,261 BTU/h heat dissipation should be included in the facility approval.

For smaller FortiGate models used at branch, campus, or secondary data centre locations, compare approved product pages under the Fortinet firewall Dubai range before fixing the full bill of materials. The 7121F is the carrier-grade chassis choice. It should not be sized the same way as a 1U or 2U edge firewall.

16U chassis deployment context

The FortiGate 7121F is a 16U chassis-based firewall for networks where the firewall is part of the core security fabric, not a small edge appliance. Typical buyers are carriers, cloud providers, government platforms, banks, national infrastructure teams, and large MSSPs running multi-tenant security services.

A realistic FortiGate 7121F deployment starts at 10,000+ users, but user count alone isn’t enough. A data centre with fewer users and heavy east-west traffic, backup replication, hosted customer platforms, or 100GE internet peering can justify this chassis faster than a head-office network with more staff but lighter traffic. Look at inspected Gbps, session growth, SSL policy, and VDOM count first.

In Dubai, this model fits carrier rooms, finance platforms in DIFC, government-hosted services, cloud exchange environments, and colocation cages where Etisalat and du uplinks are already running at high capacity. It also suits JAFZA or DAFZA groups running several operating companies behind one security stack with separate tenant policies.

Upgrading from FortiGate 7060E or 7040E? Here’s what changes

Many UAE buyers looking at the FortiGate 7121F are already running older FortiGate chassis platforms at the edge. The upgrade discussion is rarely only about more ports. It is about inspected throughput, 100GE/400GE readiness, session scale, VDOM scale, and how cleanly the HA design can be rebuilt without a long outage window.

The FortiGate 7121F raises the design ceiling to 1.89 Tbps firewall throughput and 520 Gbps threat protection throughput. It also supports 1 billion concurrent sessions and 9 million new sessions per second. For a carrier or colocation network, that gives room for more customers, more SSL inspection, more segmentation, and fewer risky bypass rules.

The next refresh decision may also include newer G-Series chassis models such as the FortiGate 3800G for different data centre roles. The 7121F remains the F-Series high-capacity chassis option when the project requires very large blade-based scaling, 16U chassis redundancy, and high module density.

What’s in the FortiGate 7121F box

A FortiGate 7121F order is not a simple small-appliance carton. It is a chassis platform with selected modules, power option, management components, and interface hardware based on the bill of materials. The expected package depends on whether the ordered model is FG-7121F, FG-7121F-2, FG-7121F-DC, or a project-specific chassis bundle.

Item	Notes
FortiGate 7121F chassis	16U chassis-based platform
FIM interface modules	FG-7121F uses 2 x FIM-7921F; FG-7121F-2 uses 2 x FIM-7941F
FPM processor modules	Up to 10 x FPM-7620F depending on ordered build
Storage	4 x 4 TB SSD onboard storage
Power supplies	Eight hot-swappable PSUs, AC or DC depending on SKU
Included optics	4 x 10GE SFP+ SR transceivers
Management modules	Redundant chassis management modules

Stock and availability in Dubai

Chassis firewalls are usually handled as project orders, not walk-in counter stock. That said, Dubai is a good procurement point for this class of Fortinet hardware because it supports UAE delivery, GCC export, Africa forwarding, and South Asia project shipping from one logistics base.

For urgent replacement, include the exact installed chassis generation, FIM model, FPM count, AC or DC power requirement, current FortiGuard term, and required optics in the request. That avoids the common delay where the firewall is available but the selected 100G or 400G transceivers are not aligned with the final port map.

Related FortiGate models for UAE projects

The FortiGate 7121F is not always the right answer. Sometimes the main site needs a chassis pair and the secondary site needs a smaller 2U firewall. Sometimes the data centre core needs a 7121F and the branch network needs smaller appliances. Use the links below to build a cleaner Fortinet bill of materials.

UAE deployment context

A FortiGate 7121F in the UAE is normally part of a wider security design. It may sit between internet transit and customer VRFs, between a bank’s external services and internal zones, or between hosting tenants and shared infrastructure. The chassis gives the capacity, but the final result depends on routing, segmentation, FortiGuard services, and logging design.

For DIFC and DMCC environments, the important questions are usually audit separation, traffic inspection, user access logging, and policy ownership. For JAFZA and DAFZA groups, the issue may be multi-tenant separation between operating companies, warehouses, remote offices, and hosted applications. For government and telecom environments, HA behaviour and change-window planning are often the first discussion.

Dubai cooling is not a small footnote here. A 16U chassis with high-speed modules needs proper airflow, power feeds, heat planning, and rack layout. In a 45°C summer logistics path, staging and delivery also matter. Hardware should move from supplier to data centre with clear handling, not sit around a loading bay while the installation window slips.

Africa, GCC, and MEA export from Dubai

Vector Digital Systems supports FortiGate 7121F project supply for carrier, government, and enterprise deployments outside the UAE. Common export projects include Iraq, Jordan, Kazakhstan, Uzbekistan, Saudi Arabia, Qatar, Oman, Kenya, and Nigeria. Large chassis orders can be quoted with FortiGuard UTP or Enterprise bundles, optics, and support terms included in the same proposal.

FOB Dubai pricing is available for resellers, telecom contractors, MSSPs, and system integrators. For export requests, share the final destination country, AC or DC power preference, required FIM/FPM configuration, licence term, and whether the order is for one chassis or an HA pair. That makes the quote usable for customs, freight planning, and project approval.

FortiGate 7121F FAQ

What is the threat protection throughput on the FortiGate 7121F?

The FortiGate 7121F delivers 520 Gbps threat protection throughput with firewall, IPS, application control, URL filtering, and malware protection with sandboxing enabled. The firewall throughput is up to 1.89 Tbps, so quote both numbers when comparing capacity.

Does the FortiGate 7121F support HA?

Yes. The FortiGate 7121F supports Active-Active FGSP, Active-Passive, and clustering. Most carrier and data centre projects in Dubai size it as an HA pair with separate heartbeat, management, logging, and production traffic paths.

What FortiGuard bundles are available for the FortiGate 7121F?

UTP Bundle and Enterprise Bundle are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud, and Botnet protection. Enterprise adds FortiCASB, FortiConverter, Industrial Security, and IoT Detection.

What is the form factor of the FortiGate 7121F?

The FortiGate 7121F is a 16U chassis-based rackmount firewall. It has 12 chassis slots, including 2 FIM slots and up to 10 FPM slots. It is built for carrier, ISP, hyperscale, government, and large multi-tenant data centre environments.

How many VDOMs does the FortiGate 7121F support?

The FortiGate 7121F supports 10 VDOMs by default and up to 500 maximum VDOMs. That gives service providers and large enterprises room for tenant, department, compliance, and routing separation inside the same chassis platform.

Can the FortiGate 7121F be used with Etisalat and du WAN links?

Yes. The FortiGate 7121F is suited to large Etisalat and du enterprise WAN, internet transit, and data centre interconnect designs. Port selection, optics, routing, and HA cabling should be planned before ordering because the chassis can support 25GE, 100GE, and 400GE designs depending on the module build.
