FortiGate 3000F overview for UAE enterprise networks

The FortiGate 3000F sits in the 2U enterprise class of the FortiGate range. It’s normally sized for 500 to 5,000+ users, depending on how much SSL inspection, IPS, application control, VPN, segmentation, and logging the design needs. For a bank in DIFC, a ministry network, a JAFZA logistics campus, a large hotel group, or a Dubai data-centre edge, the sizing discussion should always start with inspected throughput.

Raw firewall throughput is 397 Gbps. Threat protection throughput is 33 Gbps. NGFW throughput is 34 Gbps. IPS throughput is 36 Gbps. New sessions are rated at 870,000 per second, with 70 million concurrent sessions. Those numbers matter when the firewall is placed between high-volume user networks, server VLANs, DMZs, cloud interconnects, and Etisalat or du WAN links.

The port layout is serious: 6 QSFP28 / QSFP+ slots for 100GE or 40GE, 16 SFP28 / SFP+ / SFP slots for 25GE, 10GE, or 1GE fibre, and 16 RJ45 ports supporting 10GE, 5GE, 2.5GE, or GE copper. Two 10GE/GE RJ45 management ports are separate from the main data ports. Two SFP28 ports are commonly used for HA. This gives network teams room to build clean separation between WAN, LAN, DMZ, sync, and management paths.

For buyers comparing the FortiGate 3000F with smaller rack models, the question is usually not “Can it pass traffic?” It can. The better question is whether it can inspect enough traffic during peak hours without flattening the security policy. If your Dubai network is already carrying 10G WAN, high east-west traffic, backup replication, remote access VPN, and cloud traffic, this model gives you the inspection headroom that smaller 1U models don’t.

For the full FortiGate range available from Vector Digital Systems, see the FortiGate firewall Dubai hub page.

FortiGuard licensing: the hardware is only the platform

A FortiGate 3000F without FortiGuard still works as a firewall. It can route, NAT, create policies, terminate VPNs, and segment networks. But for enterprise protection, the licence is where the live security services sit. IPS signatures, web filtering categories, antivirus, botnet intelligence, FortiSandbox Cloud, industrial signatures, and IoT detection all depend on the selected FortiGuard bundle.

For a large campus or data-centre edge, the Enterprise Bundle is often the better fit because it covers wider asset visibility and industrial security use cases. That matters in mixed networks: office users, OT segments, hotel systems, warehouse scanners, CCTV VLANs, IoT devices, cloud connectors, and guest networks all hit the same firewall estate sooner or later.

UTP still makes sense where the requirement is mainly IPS, application control, web filtering, antivirus, FortiSandbox Cloud, and botnet protection. Enterprise adds extra control for environments where compliance teams need more asset visibility. In DMCC, DIFC, DAFZA, or government projects, that extra layer can be the difference between a simple firewall order and a proper security design.

FortiGate 3000F technical specifications

Specification	Detail
Model	FortiGate 3000F / FG-3000F
Firewall Throughput	397 Gbps
Threat Protection Throughput	33 Gbps
NGFW Throughput	34 Gbps
IPS Throughput	36 Gbps
Concurrent Sessions	70 million
New Sessions Per Second	870,000
Hyperscale Firewall Sessions	230 million with Hyperscale Firewall License
Hyperscale New Sessions Per Second	3 million with Hyperscale Firewall License
100GE / 40GE Ports	6 QSFP28 / QSFP+ slots
25GE / 10GE / GE Fibre Ports	16 SFP28 / SFP+ / SFP slots including 2 HA slots
RJ45 Data Ports	16 10GE / 5GE / 2.5GE / GE RJ45 ports
Management Ports	2 10GE / GE RJ45 management ports
Included Transceivers	2 SFP+ SR 10GE transceivers
VDOMs	10 default, maximum 500
Form Factor	2U rackmount
Dimensions	3.5 × 17.44 × 21.89 inches
Weight	16.9 kg
Power Consumption	425W average, 680W maximum
Heat Dissipation	2321 BTU/h
HA Support	Active-Active, Active-Passive, clustering

High availability and redundancy

The FortiGate 3000F supports Active-Passive HA, Active-Active HA, and clustering. In most UAE enterprise deployments, Active-Passive is the cleaner choice for internet edge, data-centre edge, and regulated environments because failover behaviour is easier to document and test. Active-Active can make sense where traffic distribution has been designed properly and the network team understands session handling.

The two dedicated SFP28 HA ports help keep heartbeat and synchronisation traffic away from user and WAN interfaces. For a pair sitting between Etisalat and du uplinks, internal core switches, and DMZ switches, that separation matters. HA cabling should not be treated as an afterthought. Keep it short, direct, labelled, and tested during change windows.

Large networks also need logging capacity. A FortiGate 3000F pushing inspected traffic at enterprise scale should be paired with centralised logging, especially where IT, audit, or compliance teams need session history. For many sites, that means adding FortiAnalyzer sizing to the same Bill of Materials instead of bolting it on after go-live.

Vector Digital Systems supplies FortiGate hardware, FortiGuard licensing, and FortiAnalyzer options for enterprise projects across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For model comparison, start with the FortiGate firewall range in Dubai before finalising your 3000F HA pair.

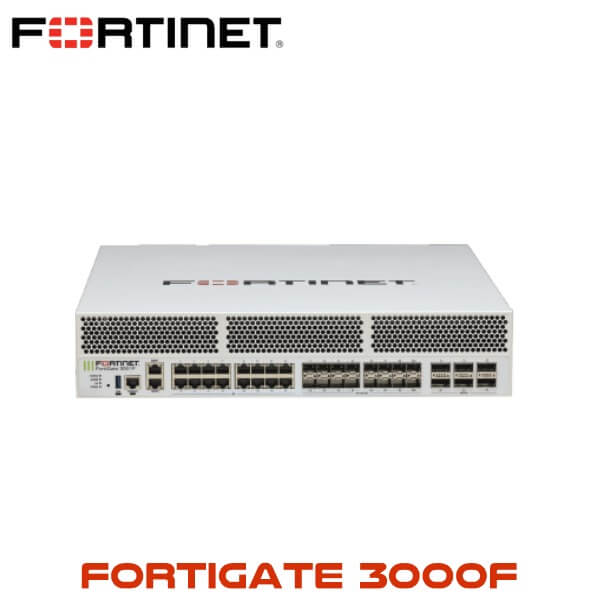

2U rackmount fit for data-centre and enterprise edge

The FortiGate 3000F is a 2U rackmount firewall. That matters before the purchase order goes out. It needs proper rack space, front-to-back airflow planning, power allocation, fibre patching, and a clean HA design. In a Dubai data centre, especially where racks already carry core switching, storage, backup, and private cloud equipment, cooling and cable routing can become the real deployment work.

Average power consumption is 425W and maximum power consumption is 680W, with 2321 BTU/h heat dissipation. Not scary for a properly planned enterprise rack, but it shouldn’t be treated like a 1U branch firewall. For Equinix DX1/DX2, Khazna, Gulf Data Hub, bank HQ server rooms, or a government data centre, include rack elevation, power feeds, airflow direction, and transceiver count in the project notes.

This model makes sense where the firewall is part of the core path: internet edge, inter-VLAN segmentation, private cloud edge, data-centre DMZ, MSSP customer-edge stack, or large campus aggregation. The port mix gives room for 100G, 40G, 25G, 10G, and multi-gig copper handoff. That helps when the network isn’t all one speed. And most UAE networks aren’t.

Upgrading from FortiGate 3000D? Here’s what changes.

Many older UAE enterprise networks still have FortiGate 3000D units in service or sitting in renewal discussions. The 3000D was a serious firewall in its time, but the traffic profile has changed: more SaaS, more VPN, more encrypted sessions, more cloud backup, more user devices, and more inspection pressure.

The FortiGate 3000F moves the sizing point forward. Firewall throughput rises from 80 Gbps on the 3000D class to 397 Gbps on the 3000F. Threat protection throughput rises from 13 Gbps to 33 Gbps. That second figure is the one Dubai IT teams should watch because it reflects security services running together, not just packet forwarding.

Port density also changes the design conversation. The 3000F gives 6 QSFP28/QSFP+ slots for 100GE/40GE, 16 SFP28/SFP+/SFP ports for 25GE/10GE/1GE, and 16 multi-gig RJ45 ports. If your core is moving from 10G to 25G or planning 100G uplinks, the 3000F is easier to place without strange breakout workarounds.

For future refresh cycles, the FortiGate 3000G is the next step when inspection capacity and power-per-gigabit become the main sizing drivers. But for many enterprise buyers who want a field-proven F-Series platform with 33 Gbps threat protection, the 3000F still sits in the right bracket.

What’s in the box, and what isn’t

A FortiGate 3000F order normally covers the firewall appliance, power components as per ordered variant, rackmount hardware, and the included transceivers listed for the model. The datasheet lists 2 SFP+ SR 10GE transceivers. For most Dubai deployments, the project still needs additional optics, DAC cables, fibre patch leads, PDUs, FortiGuard licensing, FortiCare support term, and sometimes FortiAnalyzer.

Also check power type before procurement. The FortiGate 3000F family includes AC and DC variants. Data-centre, telecom, and government projects sometimes specify DC power in the rack standard, while normal enterprise server rooms usually order AC. Wrong power type delays installation. Simple mistake, expensive week.

Related FortiGate models for comparison

A FortiGate 3000F is usually chosen after comparing inspected throughput, uplink speed, rack space, HA design, and FortiGuard term. These related models help narrow the sizing.

UAE deployment context

In Dubai, the 3000F is rarely bought for one small office. It normally lands in a larger design: active-passive HA at the data-centre edge, a DMZ for public services, site-to-site VPN to branches, remote access VPN for staff, WAN failover between Etisalat and du, and segmented VLANs for users, servers, CCTV, VoIP, guest WiFi, and operations systems.

For DIFC and DMCC companies, the driver is often audit readiness and clean segmentation. For JAFZA and DAFZA warehouses, it’s usually WAN resilience, barcode systems, ERP access, and branch connectivity. For hotel groups, the design has to separate guest networks, PMS traffic, CCTV, payment systems, staff devices, and back-office systems without turning the firewall policy into a mess.

The 3000F also fits MSSP deployments where one firewall pair supports multiple managed customer zones using VDOMs. Default VDOM count is 10, with a maximum of 500. That’s useful for service providers and large groups that want separation between business units, tenants, or security zones without buying a separate appliance for every boundary.

Africa, GCC, and MEA export from Dubai

Vector Digital Systems supplies FortiGate 3000F for enterprise deployments across Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Egypt, Kenya, Nigeria, and South Africa. Most orders in this class are HA pairs with 3-year UTP or Enterprise FortiGuard bundles. FOB Dubai pricing is available for resellers, system integrators, and project buyers shipping from UAE.

For export projects, share the exact SKU, power type, FortiGuard term, FortiCare term, transceiver count, destination country, and whether the order is for single unit or HA pair. It avoids rework on the quote and keeps the commercial comparison fair.

FAQ

What is the threat protection throughput on the FortiGate 3000F?

The FortiGate 3000F delivers 33 Gbps threat protection throughput with security services running together. Firewall throughput is 397 Gbps, but the 33 Gbps figure is the better number for inspected traffic sizing.

Does the FortiGate 3000F support HA?

Yes. It supports Active-Active HA, Active-Passive HA, and clustering. For Dubai enterprise edge and data-centre deployments, Active-Passive HA pairs are common with Etisalat and du WAN links.

What FortiGuard bundles are available for FortiGate 3000F?

UTP Bundle and Enterprise Bundle are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud, and Botnet protection. Enterprise adds FortiCASB, FortiConverter, Industrial Security, and IoT Detection.

What is the FortiGate 3000F form factor?

The FortiGate 3000F is a 2U rackmount firewall. It is designed for enterprise rack deployments, data-centre edge, large campus core, MSSP environments, and HA pair installations.

How many VDOMs does the FortiGate 3000F support?

It supports 10 VDOMs by default, with a maximum of 500 VDOMs. This is useful for MSSPs, large groups, and segmented enterprise networks that need separation between tenants, departments, or security zones.

Is FortiGate 3000F suitable for Etisalat and du WAN links?

Yes. It is commonly sized for enterprise networks using multiple Etisalat and du WAN links, BGP edge designs, VPN, DMZ, and high-speed internal segmentation. Port selection and HA design should be finalised before ordering optics and cables.
