A Dubai office with FortiGate firewalls at head office, branches, warehouse sites, cloud VPN edges, and remote users can generate a serious amount of security data every day. Firewall logs. VPN events. Web filtering records. IPS alerts. Admin changes. SD-WAN link movement across Etisalat and du circuits. If those logs stay scattered across individual firewalls, your team can lose the story when something goes wrong.

FortiAnalyzer 810G is built for that problem. It gives Fortinet-heavy networks a dedicated 1U rackmount appliance for central log collection, analytics, audit reporting, and incident investigation. For IT teams in DIFC, DMCC, JAFZA, DAFZA, healthcare, education, hospitality, and multi-branch retail, it brings the logging layer into one place without pushing daily analysis onto the firewall itself.

FortiAnalyzer 810G Dubai — for Fortinet estates that need searchable logs

The FortiAnalyzer 810G sits in the middle tier of Fortinet log analytics appliances. It is bigger than a branch or small-office logging box, but it still fits neatly into a 1U rack space. That matters in Dubai server rooms where every rack unit, power draw, and cooling load is watched, especially in shared data centre environments and free zone offices with limited rack depth.

This model supports up to 200 GB of logs per day, 4,000 analytic logs per second, 6,000 collector logs per second, and up to 800 devices or VDOMs. That puts it in the right range for enterprise HQ logging, MSSP customer estates, regional branch rollouts, hospitality groups, logistics networks, school groups, and security teams that need longer retention than individual firewalls can comfortably hold.

The key point is simple: FortiAnalyzer is not a firewall. It doesn’t replace your FortiGate. It gives your FortiGate estate memory. Use it with FortiGate firewall deployments in Dubai when you need reporting, investigation, event correlation, change tracking, and clean audit evidence from one place.

Why FortiAnalyzer matters after the firewall is installed

A FortiGate blocks, inspects, routes, filters, and builds VPN tunnels. FortiAnalyzer answers the next set of questions. Which user triggered that event? Which policy changed yesterday? Which branch is generating the most IPS hits? Which WAN circuit dropped during business hours? Which administrator logged in before a rule change?

Those questions come up often in UAE networks. A retail group may need to check web filtering activity across 30 stores. A hotel IT team may need VPN and admin audit logs before a compliance review. A DIFC company may need clean reports for internal risk teams. A JAFZA warehouse may need to trace blocked traffic between an ERP server and a remote site over du Enterprise connectivity. Without central logging, the engineer wastes time collecting fragments.

FortiAnalyzer 810G reduces that back-and-forth. Logs from FortiGate and supported Fortinet devices are collected into a single analytics platform. Reports can be built around traffic, threats, policy usage, VPN activity, web usage, admin events, and incident timelines. For MSSPs, it also helps separate customer environments using administrative domains, so each customer estate can be handled with cleaner boundaries.

FortiAnalyzer 810G service bundle options

The FortiAnalyzer appliance is the logging platform. The service bundle is what adds the support and security services around it. For most Dubai projects, procurement will compare hardware-only pricing against the FortiAnalyzer bundle with FortiCare and added security services. Both 1-year and 3-year terms are normally quoted, with 3-year terms preferred when the project is tied to a firewall refresh cycle.

The FortiAnalyzer 810G hardware bundle can include FortiCare Premium, IOC service, FortiGuard Outbreak Detection, Security Automation Service, and FortiTIP SaaS Extension. These services are useful when the appliance is part of a SOC workflow, not just a passive log bucket. IOC and outbreak detection help security teams work from known indicators and active threat intelligence. FortiTIP is more relevant when threat investigation and enrichment are part of the daily process.

For smaller teams, the buying decision is often practical. Do you only need central logs and reports, or do you need investigation tools that help during a security event? For MSSPs, managed service providers, and regulated UAE environments, the bundle usually makes more sense because support, detection services, and automation features matter once multiple sites depend on the same logging platform.

FortiAnalyzer 810G specifications

The FAZ-810G is a 1U rackmount appliance with 16 TB raw storage using four 4 TB SAS drives. After RAID, usable storage is 8 TB. Default RAID is 10, and the unit supports hardware RAID with hot-swappable drives. That is an important detail for procurement teams because raw disk size and usable disk size are not the same thing.

High Availability and redundancy planning

FortiAnalyzer 810G can be deployed in a High Availability design when the logging layer must stay available during maintenance or appliance failure. HA planning matters for MSSPs, SOC teams, finance offices, and any regional HQ where FortiGate logs are part of audit evidence. If the log collector is down, the firewall may still pass traffic, but your investigation window becomes weaker.

A FortiAnalyzer HA design uses matching FortiAnalyzer appliances. The units should be from the same platform family, run the same mode, and be sized for the same daily log capacity. For the 810G, that means planning a pair of FAZ-810G appliances when the requirement is HA at this capacity tier.

For Dubai deployments, HA is usually requested when FortiAnalyzer supports more than one site or business unit. A single office may accept one appliance with RAID 10. A group with branches across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain may prefer HA, especially when logs feed SOC response, compliance reporting, or monthly management reports.

Vector Digital Systems can quote FortiAnalyzer 810G as a single appliance or HA pair, with FortiAnalyzer service bundle options and related FortiGate sizing through the FortiGate firewall Dubai range.

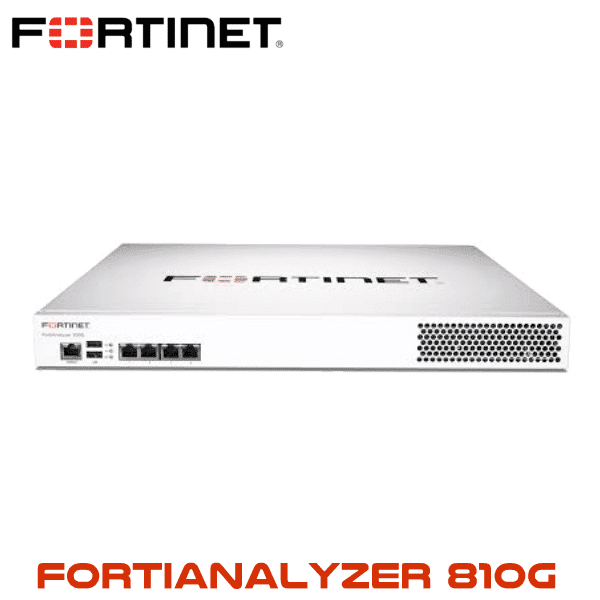

1U rackmount design for Dubai server rooms

FortiAnalyzer 810G is a 1U rackmount appliance, which makes it easier to place in an existing network rack beside FortiGate firewalls, core switches, patch panels, and out-of-band management gear. It is not a desktop logging device. This is a proper rack appliance for enterprise logging, SOC use, and MSSP environments where the logging layer is expected to run every day.

The appliance uses front-to-back airflow, which suits most UAE server room and data centre rack layouts. In Dubai, that detail matters. Hot aisles, cooling load, rack density, and maintenance access are not small points when the site is in a free zone office, hotel back office, logistics warehouse, or shared colocation rack. The 810G keeps the footprint to 1U while still giving 16 TB raw storage and 200 GB/day log ingestion.

For user count, don’t size FortiAnalyzer the same way you size a firewall. A 500-user company with heavy web filtering and VPN usage may generate more logs than a 1,500-user network with light logging. The better sizing method is daily log volume, number of FortiGate units, VDOM count, retention target, and whether logs must remain searchable for audits.

Choosing 810G instead of 300G, 800F, 1000G, or VM

The FortiAnalyzer 810G sits in a useful middle position. It gives more daily log capacity than smaller FortiAnalyzer appliances while staying in a 1U rackmount chassis. That makes it attractive for Dubai buyers who have outgrown entry logging but don’t want to jump straight to a larger 2U platform.

Compared with older FortiAnalyzer 800F projects, the 810G is the cleaner choice for new procurement when the buyer wants current G-series hardware, 200 GB/day log capacity, 4,000 analytic logs per second, and support planning around new FortiAnalyzer services. Compared with FortiAnalyzer VM, the hardware appliance avoids hypervisor storage arguments, SAN sizing debates, and shared compute dependency. Some IT teams prefer VM. Fair. But for many UAE sites, an appliance is easier to quote, rack, protect, and hand over.

For very large SOC or multi-country logging designs, FortiAnalyzer 1000G or 3000F may be a better fit. For branch-heavy estates with lighter retention needs, FortiAnalyzer 300F or 300G may be enough. The 810G is for the middle ground: serious log volume, still 1U, still practical for a regional IT team.

What’s in the box

A standard FortiAnalyzer 810G hardware order includes the FAZ-810G appliance with 1U rackmount form factor, 4 x GE RJ45 ports, 2 x GE SFP ports, 4 x 4 TB 3.5-inch SAS hard drives, hardware RAID support, and the platform required for FortiAnalyzer deployment. The unit is built for rack installation, not shelf placement in a small cabinet.

The appliance supports removable hot-swappable drives and optional redundant hot-swap power supply. For data centre, finance, healthcare, and MSSP projects, check whether the redundant PSU option is required by the site standard before purchase. It is better to include it in the first quote than reopen procurement later.

Stock and availability in Dubai

Vector Digital Systems supplies FortiAnalyzer 810G in Dubai for enterprise, government, education, hospitality, logistics, healthcare, and reseller projects. Quotes can be prepared for hardware-only supply or with FortiAnalyzer service bundles. For budget approval, ask for both 1-year and 3-year options so procurement can compare year-one spend against total project cost.

For UAE rollouts, we can quote single appliances, HA pairs, and FortiAnalyzer projects attached to FortiGate firewall estates. Typical project locations include Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For export, FOB Dubai pricing is available for GCC, Africa, and South Asia.

Related Fortinet logging and firewall models

Log platform sizing should match the firewall estate. A small FortiGate deployment doesn’t need the same FortiAnalyzer appliance as an MSSP running many customer VDOMs. These related pages help compare appliance sizes and firewall projects before finalising the quote.

UAE deployment context

In Dubai, FortiAnalyzer 810G is usually bought after the firewall estate has already grown. One FortiGate at head office becomes five. Then branches open in Abu Dhabi and Sharjah. Then VPN users, SD-WAN, web filtering, IPS, and admin change logs become part of daily operations. At that stage, checking logs from each firewall is no longer practical.

For DIFC and DMCC companies, FortiAnalyzer helps with internal security reporting and audit evidence. For JAFZA and DAFZA operations, it helps IT teams follow events across warehouse, office, and remote access networks. For hotel groups, schools, clinics, and logistics sites, it gives a central view of activity across locations connected through Etisalat Business and du Enterprise WAN services.

The 810G also works well for MSSPs supporting customers across the UAE. Administrative domains help separate customer views, while the appliance gives a fixed hardware base for log collection and reporting. Cleaner than building every customer’s logging on separate ad-hoc systems.

Africa, GCC, and MEA export from Dubai

FortiAnalyzer 810G can be quoted for export projects from Dubai on FOB Dubai terms. Common requests come from Saudi Arabia, Qatar, Oman, Bahrain, Kuwait, Kenya, Tanzania, Nigeria, Egypt, and South Africa where Fortinet firewall estates need central logging and audit reporting. For multi-country rollouts, quote the logging appliance with the FortiGate project so log volume, retention, and support terms are aligned from day one.

For resellers and MSSPs, project quantity pricing is available. Share the number of FortiGate devices, expected daily log volume, retention target, and whether the appliance will be deployed as a single unit or HA pair. That gives procurement a cleaner quote and reduces changes after approval.

FortiAnalyzer 810G FAQ

How much log volume does FortiAnalyzer 810G support?

FortiAnalyzer 810G supports up to 200 GB/day of logs. It is rated for 4,000 analytic logs per second and 6,000 collector logs per second.

How many Fortinet devices or VDOMs can the 810G manage?

FortiAnalyzer 810G supports up to 800 devices or VDOMs. For MSSP and multi-site deployments, sizing should also include ADOM planning, daily log volume, and retention target.

What is the usable storage on FortiAnalyzer 810G?

The appliance has 16 TB raw storage using 4 x 4 TB SAS hard drives. Usable storage after RAID is 8 TB, with RAID 10 as the default configuration.

Does FortiAnalyzer 810G support HA?

Yes. FortiAnalyzer can be deployed in a High Availability design using matching appliances. For this capacity tier, plan a pair of FAZ-810G appliances with matching licensing and network reachability.

What FortiAnalyzer bundle options are available?

FortiAnalyzer 810G can be quoted as hardware-only or with FortiAnalyzer service bundle options. Typical bundle services include FortiCare Premium, IOC service, FortiGuard Outbreak Detection, Security Automation Service, and FortiTIP SaaS Extension. Ask for 1-year and 3-year pricing.

Is FortiAnalyzer 810G in stock in Dubai?

Availability changes by project quantity and bundle choice. Vector Digital Systems can quote FortiAnalyzer 810G for Dubai, UAE, GCC, Africa, and South Asia projects, including FOB Dubai export pricing.
