The Fanvil PN8-2Wire is built for that exact project problem. It is an 8-port 2-Wire PoE switch for Fanvil 2-Wire deployments using compatible devices such as the Fanvil X303-2 Wire and Fanvil H1-2 Wire. It gives installers a way to reuse existing PSTN or RVV-style 2-wire cabling while carrying network and power to Fanvil 2-Wire endpoints. For Dubai refurbishment jobs, that is the difference between a clean IP telephony upgrade and a building-wide recabling argument.

Vector Digital Systems supplies the PN8-2Wire from Dubai for office, hotel, community, and old-building renovation projects. We quote it as part of the full Fanvil 2-Wire design: switches, compatible phones, provisioning, site installation, spare power planning, and export packing where the job is outside the UAE. Supply from Dubai since 2009.

What the PN8-2Wire does in a real project

The PN8-2Wire sits in the telecom cabinet or low-current room and connects upstream to the IP network through one RJ45 uplink port. On the field side, it provides 8 RJ11 2-wire interfaces. Each 2-wire port carries network and power to a compatible Fanvil 2-Wire endpoint over the existing cable run. The result is IP telephony over old phone cabling, without treating every desk or guest room as a new structured cabling job.

Think of a 72-room hotel refresh. The rooms already have analogue telephone pairs going back to risers. The hotel wants IP phones, central provisioning, and new calling features, but does not want ceilings opened across three floors while rooms are being sold. A PN8-2Wire design lets the installer group rooms in batches of 8 ports, reuse the existing 2-wire runs where they test clean, and move the phone estate toward IP without rebuilding the cabling path from zero.

The same logic applies to older offices replacing an analogue PABX, villa communities upgrading guard-room and service extensions, or staff accommodation blocks where the wiring was never designed for modern IP phones. PN8-2Wire is not a desk phone and it is not a PABX. It is the project device that makes the cabling plan possible.

Why 2-wire matters in Dubai retrofit work

New offices in Business Bay or Dubai Hills normally get Cat6 during fit-out. Retrofit sites are different. In Deira hotels, Bur Dubai buildings, older Sharjah offices, and mixed-use properties across Ajman and Ras Al Khaimah, the existing telephone cable is often the only practical route to the desk or room without opening walls. That is where 2-wire IP telephony earns its place.

The PN8-2Wire helps project teams keep the upgrade inside the low-current scope. Existing 2-wire cable can be tested, labelled, patched into the PN8, and connected to compatible Fanvil 2-Wire endpoints. The PABX side becomes IP. The device side becomes manageable. The physical cable route stays mostly untouched.

This is especially useful where downtime is expensive. Hotels do not want guest floors closed for cabling. Clinics do not want reception and treatment-room phones offline all day. Community facilities do not want guards moving between temporary handsets. With staging from Vector Digital Systems, the Fanvil 2-Wire phones are provisioned before dispatch, and the PN8 units are planned by port count before the site visit.

The 8-port layout — small enough for floors, useful enough for batches

Eight ports is the practical size for many retrofit zones. One PN8-2Wire can serve a small office, one hotel wing section, a clinic suite, a guardhouse group, or a floor segment where the old cable pairs return to the same cabinet. It avoids overbuying a large switch for a small zone, while still giving enough ports to build in project batches.

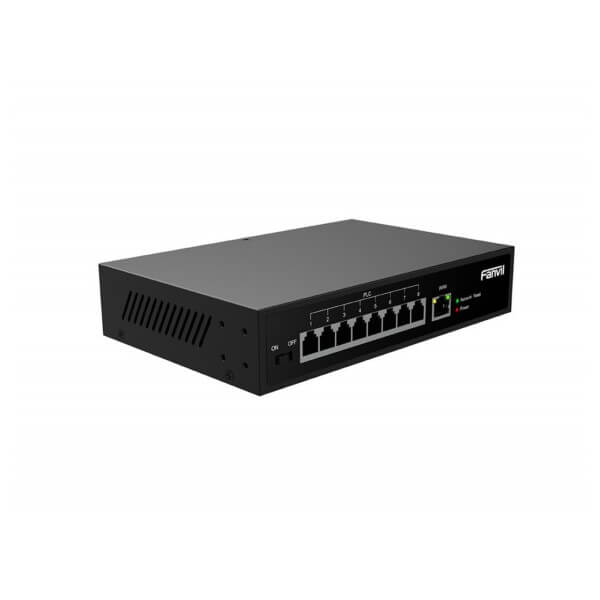

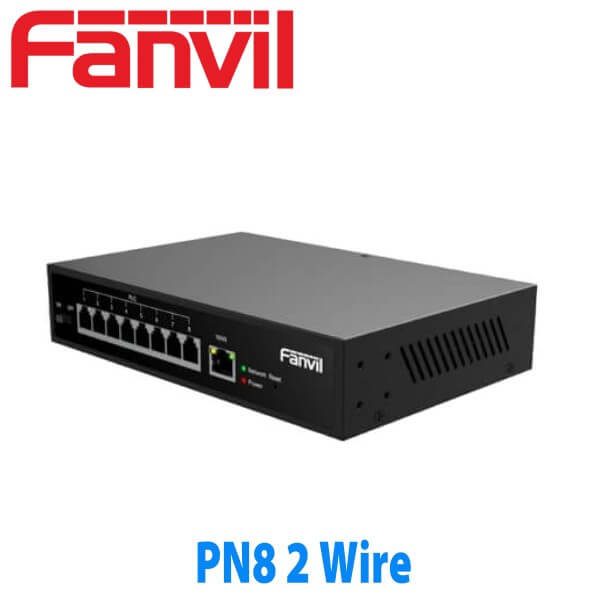

The PN8-2Wire has one RJ45 network interface for uplink and 8 RJ11 interfaces for 2-wire endpoints. Fanvil states support for network and power supply to 2-wire devices, with transmission distance up to 300 metres. Power is built into the switch with 100–240V wide-voltage input and 54V 1.5A output, so the 2-wire endpoints do not need local desk adapters when the system is designed correctly.

Where we use the PN8-2Wire

Hotels and serviced apartments: Guest-room phones are the obvious use case. A property with existing analogue room phones can move toward Fanvil 2-Wire room devices while reusing much of the installed cabling. This helps when the project is a soft refurbishment, not a full strip-out.

Older offices: Many offices still have analogue pairs to desks, reception, stores, and meeting rooms. PN8-2Wire can be part of a PABX replacement plan where the client wants IP features but the ceiling and floor trunking cannot be disturbed.

Communities and staff blocks: Guard rooms, maintenance desks, supervisor rooms, and common-area phones often sit far from the main IT rack. Where existing 2-wire paths are usable, PN8-2Wire gives the project team a cleaner route to IP calling.

Renovation of old buildings: Fanvil positions the 2-Wire family for office, community, hotel, and old-building renovation scenarios. That matches the Dubai and Northern Emirates retrofit market: upgrade the communication system first, disturb the building as little as possible.

Not a normal PoE switch — do not size it like one

A normal PoE switch expects Ethernet cable to each endpoint. The PN8-2Wire is different. Its job is to bridge the gap between an IP network and Fanvil 2-Wire devices over 2-wire cabling. That is why the model belongs in the design stage, not at the last-minute purchasing stage.

Before we quote PN8-2Wire units, we check the endpoint type, the number of rooms or extensions, where the cable pairs land, whether the rack has stable power, and how many spare ports the contractor wants. On a hotel floor, spare ports matter because room numbering rarely matches the old cable labelling perfectly. On an office floor, spare ports help when the client adds a pantry phone, reception side desk, or store extension after handover.

For full Fanvil phone selection, use the Fanvil IP phone range guide. For project design, Vector Digital Systems maps the PN8-2Wire with compatible Fanvil 2-Wire phones, the PABX, the Etisalat or du SIP service, and the site cabling plan under one quote.

Power, network, and cabinet planning

The PN8-2Wire is powered from mains input, not from a normal PoE switch upstream. It supports 100–240V wide-voltage input and provides 54V 1.5A output for the 2-Wire side of the system. In a Dubai retrofit job, that means the low-current cabinet needs stable AC power, proper labelling, and enough space for the PN8 units before the room or desk phones are connected.

Network access comes through one RJ45 port at 10/100Mbps. The field side uses 8 RJ11 2-Wire interfaces. Those 8 ports are for compatible Fanvil 2-Wire endpoints, not standard Ethernet desk phones. Do not connect a normal IP phone to the 2-Wire side and expect it to work. The endpoint must be from Fanvil’s 2-Wire family, such as X303-2 Wire for office desks or H1-2 Wire for hotel rooms.

For floor-level deployment, the usual design is simple: uplink the PN8-2Wire to the site network, patch tested 2-wire cable pairs into the 8 RJ11 ports, then connect the matching Fanvil 2-Wire phones at the room or desk end. Where several PN8 units sit in the same riser cabinet, we label each switch by floor, wing, or room range before dispatch.

Current 2-Wire capability that matters on site

Fanvil’s 2-Wire system was built for projects where the building already has old telephone cable. PN8-2Wire supports network and power delivery over 2-wire cabling, with stated transmission distance up to 300 metres. That distance is the reason the model works for many hotel corridors, clinic blocks, villa compound service rooms, and older office floors where the cabling path is longer than a normal desk run.

The useful point is not only the distance. It is the type of cable that can be reused. Fanvil states PSTN and RVV cable reuse for the 2-Wire solution. For a PABX replacement in Bur Dubai or a hotel room refresh in Deira, that can protect the project from a second contractor visit for new cabling, false ceiling access, and repainting after cable pull.

The PN8-2Wire also has a built-in mode switch. In project language, that gives the installer control over whether power and network are supplied on the 2-Wire side. We set and test the mode according to the endpoint design during staging. For UAE projects, we prefer to test one full sample path before the full batch is installed: switch, old cable, endpoint, registration, call test.

Compatibility with PABX platforms in Dubai

The PN8-2Wire itself does not register to a PABX. The connected Fanvil 2-Wire phones register as SIP endpoints through the IP network. In a normal Dubai job, that means the X303-2 Wire or H1-2 Wire is registered to 3CX, Grandstream UCM, Yeastar, Asterisk, or the client’s existing SIP platform, while the PN8-2Wire handles the 2-wire transport path.

For Etisalat and du business SIP services, we normally place the PABX or SIP gateway at the network side and register the phones through the platform. The PN8-2Wire is treated as infrastructure, the same way a cabinet switch is treated as infrastructure. The difference is that the last leg to the endpoint is 2-wire instead of Cat6.

PN1, PN8, or PN24 — choosing the right Fanvil 2-Wire switch

For many UAE refurbishments, the PN8 is the clean middle choice. It is large enough to handle a useful zone and small enough to place near the cable landing point. That avoids dragging every old pair back to one large cabinet when the building layout does not suit it.

Pricing, supply, and project handling from Dubai

Fanvil PN8-2Wire pricing is quoted in AED on request. We do not publish fixed prices because most orders are not one switch in a box. A real quote usually includes PN8 units, compatible Fanvil 2-Wire phones, power planning, labelling, staging, delivery, and installation across the UAE.

For 10+, 50+, or hotel-room quantities, Vector Digital Systems prices the full bill of materials as one project. VAT breakdown and UAE delivery can be included. For export buyers, we quote FOB Dubai with packing by carton count and destination paperwork.

Frequently asked questions

Which Fanvil phones work with the PN8-2Wire?

The PN8-2Wire is for Fanvil 2-Wire endpoints, including models such as X303-2 Wire for office desks and H1-2 Wire for hotel room or simple extension use. It is not for normal Ethernet-only IP phones. We confirm the phone model and cable plan before quoting.

Will the PN8-2Wire work with our 3CX / Grandstream UCM / Yeastar system?

Yes, when paired with compatible Fanvil 2-Wire phones. The phones register to 3CX, Grandstream UCM, Yeastar, Asterisk, or another SIP platform through the IP network. The PN8-2Wire provides the 2-wire transport and power path between the cabinet and endpoint.

Does the PN8-2Wire come with a power adapter, or do I need PoE?

The PN8-2Wire is not powered by PoE from an uplink switch. It has built-in power supply for the 2-Wire side and supports 100–240V input with 54V 1.5A output. We quote the correct power lead and cabinet arrangement for UAE use or export.

What does 8 ports mean — can I connect 8 phones?

In most designs, yes: the PN8-2Wire provides 8 RJ11 2-Wire interfaces for compatible Fanvil 2-Wire endpoints. Final count depends on cable condition, endpoint model, cabinet layout, and whether the installer wants spare ports for future rooms or extensions.

Fanvil PN8-2Wire vs PN24-2Wire — what is the difference?

PN8-2Wire gives 8 RJ11 2-Wire ports and suits smaller zones, floor sections, clinics, villas, and hotel wing batches. PN24-2Wire gives 24 RJ11 ports for denser room counts where many cable pairs land in the same cabinet. We choose by cable landing point, not only by total phone count.

Does Vector Digital Systems configure the phones before delivery?

Yes. For PN8-2Wire projects, we stage the connected Fanvil 2-Wire phones: extension registration, provisioning template, room or desk labels, and test calls before dispatch. The PN8 port plan is prepared with the site cabling map.

Is VoIP legal in the UAE and will this work with Etisalat or du?

Business VoIP over licensed services is used in the UAE under TRA regulation. The PN8-2Wire is cabling infrastructure; the connected Fanvil 2-Wire phones register to your PABX or SIP platform, which can then connect to Etisalat or du business SIP services.

Is the PN8-2Wire covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies the PN8-2Wire with Fanvil manufacturer warranty support from Dubai. For project quantities, warranty handling is tied to the full supplied system: PN8 units, phones, and accessories.

Who is the supplier of Fanvil PN8-2Wire in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the PN8-2Wire with project design, staging, provisioning of compatible Fanvil 2-Wire phones, installation across all seven emirates, warranty handling, and official quotations for procurement teams.

What is the best Fanvil 2-Wire switch for a hotel retrofit in Dubai?

For small hotel zones or 8-room batches, the PN8-2Wire is usually the right starting point because it matches 8 existing cable runs and keeps the cabinet compact. For larger room groups where many pairs land together, step up to PN24-2Wire. We size it after reviewing room count and riser layout.

Does Vector Digital Systems export Fanvil PN8-2Wire from Dubai?

Yes. We export Fanvil PN8-2Wire switches and compatible 2-Wire phones from Dubai to PABX installers, telecom resellers, hotel contractors, and system integrators in Saudi Arabia, Oman, Qatar, Bahrain, Kenya, Tanzania, Uganda, Nigeria, Ghana, and Pakistan. FOB Dubai pricing with commercial invoice, packing list, and certificate of origin.

UAE coverage and MEA export

Vector Digital Systems supplies and installs Fanvil PN8-2Wire projects across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We cover office towers, hotel refurbishments, clinics, staff accommodation, villa communities, and free zone projects in DMCC, JLT, Business Bay, Dubai Internet City, JAFZA, DIP, and SAIF Zone.

For export, PN8-2Wire orders can ship from Dubai with matching Fanvil 2-Wire endpoints and accessories. Gulf buyers in Saudi Arabia, Oman, Qatar, and Bahrain, East Africa buyers in Kenya, Tanzania, and Uganda, and West Africa buyers in Nigeria and Ghana can request FOB Dubai pricing with export documents: commercial invoice, packing list, and certificate of origin.
