The Fanvil i505/i505W is built for that job. It is a 7-inch Android indoor station for SIP video intercom projects, with touch control, hands-free audio, video viewing, remote unlocking, alarm inputs, and optional dual-band Wi-Fi on the i505W. For ELV contractors, PABX installers, villa automation teams, and building-system integrators in the UAE, it gives one indoor point for the entrance call, door release, and linked camera view.

Vector Digital Systems supplies the Fanvil i505 from Dubai for project quantities, not single-monitor guessing. We stage it before dispatch: SIP account entered, door station tested, unlocking function checked, network settings applied, and test calls made against the project configuration. For multi-apartment, villa compound, hotel, and office-building deployments, that saves site time when the walls are already painted and the handover date is close.

What the Fanvil i505 is

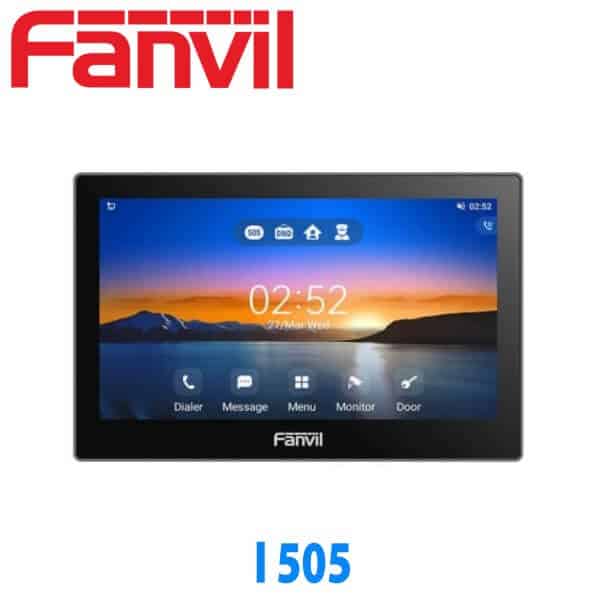

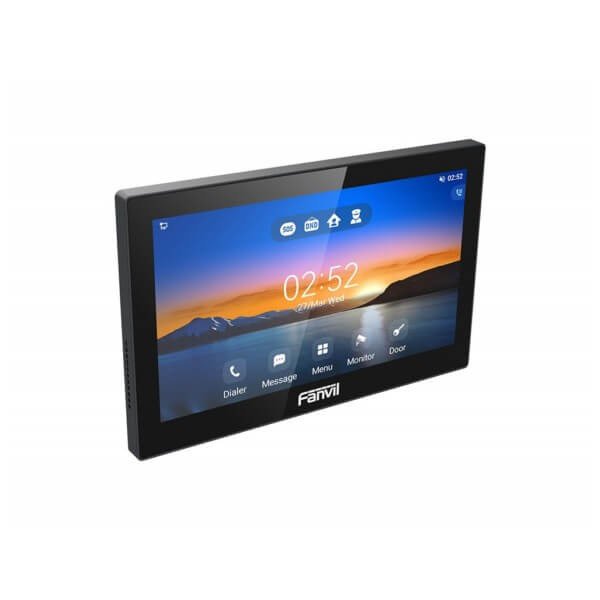

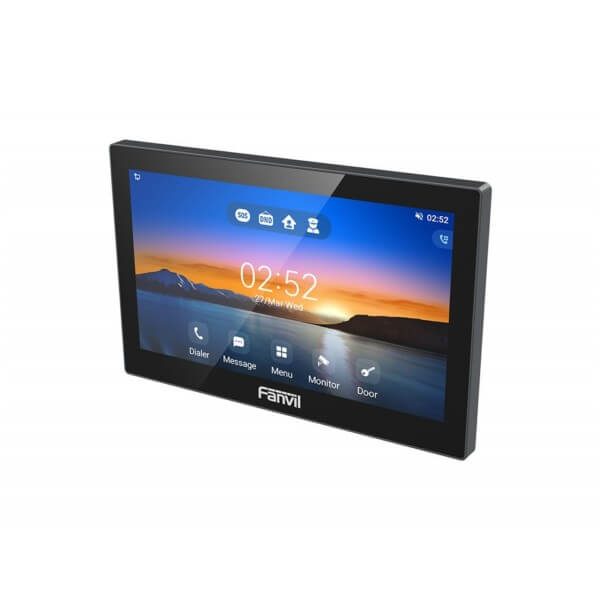

The Fanvil i505 is a 7-inch Android indoor station for SIP door-entry and video intercom systems. The front is a 7-inch IPS capacitive colour touch screen with 1024 × 600 resolution. It is designed for wall mounting in residential communities, villas, hotels, apartment corridors, office entrances, and staffed reception areas where the person inside needs to see the visitor and release the door from the screen.

The model family is simple: i505 is the wired Ethernet version, and i505W is the Wi-Fi version with dual-band 2.4 GHz and 5 GHz wireless support. Same 7-inch indoor-station class. Same project role. The choice is mainly cabling. If the apartment, villa, or guard room has a Cat6 point, we specify the wired i505. If the wall location was fixed after civil work, or the retrofit cannot take a new cable cleanly, the i505W is the cleaner option — provided Wi-Fi coverage is tested at that exact wall position.

It runs Android 9.0, supports SIP 2.0 over UDP, TCP, and TLS, and handles full-duplex hands-free calling with echo cancellation. Audio codecs include G.711a/u, G.729AB, iLBC, G.722, and Opus. Video decoding supports H.264, with optional H.265, and video-call resolution up to 1080p. In plain site language: the resident can answer the entrance call, speak hands-free, view the visitor, and unlock the door without adding a separate desk phone or a separate monitor.

The i505 also supports live viewing from linked IP cameras. This is useful in Dubai villas where the gate camera and side entrance camera are separate, in office buildings where security wants a service-door view, and in hotels where back-of-house doors need an indoor answer point. Paired with a Fanvil door phone, it becomes the indoor screen that answers, views, and unlocks from one wall-mounted device.

The project buyer’s question: wired i505 or Wi-Fi i505W?

Most indoor-station mistakes happen at the wiring stage. The buyer asks for “Wi-Fi” because it sounds easier. The installer asks for “wired” because it behaves better. Both can be right, depending on the wall, the site, and the handover pressure.

For new buildings, villa fit-outs, serviced apartments, and hotel refurbishments where the ELV contractor still controls the cable routes, the wired i505 is the first choice. One RJ45 network point gives the indoor station a stable path to the door station, PABX, and network. It also allows PoE powering from the comms room when the switch supports 802.3af, which means no small power adapter hidden behind the screen and no socket needed at the wall.

For retrofit jobs, the i505W earns its place. A villa in Jumeirah, a small office in Business Bay, or a completed apartment where marble, joinery, or wallpaper is already finished may not have a clean route for a new cable. The i505W adds dual-band Wi-Fi, so the indoor station can be placed where the user needs it. The honest limit: Wi-Fi coverage becomes call coverage. We do not approve a Wi-Fi indoor station for a project until the wall position is checked for signal quality.

SIP calling on an indoor station — what the “line” really means here

A desk phone page talks about SIP lines as registered accounts and call appearances. The i505 is different because it is an indoor station, not a receptionist phone. Its job is not to juggle many outside calls. Its job is to register as a SIP endpoint, answer entrance calls, call a guard desk or extension where required, and trigger the right door action.

So the practical sizing question is not “how many trunk calls can it make?” It is: which SIP account should this indoor station register to, which door phone or entrance panel should call it, and what should happen when the user taps unlock? In a villa, one indoor station may answer the gate. In an apartment project, each unit has its own indoor station tied to that tenant or room. In a hotel service corridor, the indoor station may call security, reception, or engineering depending on the button plan.

SIP 2.0 support means the i505 can sit on the same IP telephony design as the rest of the site. For example, a Dubai office can have desk phones on the PABX, a SIP door station at the entrance, and the i505 at reception or security. The visitor presses the door station. The i505 rings. The user sees video, talks hands-free, then sends the door-release command. The PABX call handling and the door-entry wiring work as one project, not two separate systems fighting each other.

This matters for multi-site work. A contractor rolling out offices in Dubai, Abu Dhabi, and Sharjah does not want each branch built differently. We can stage the i505 units with the same naming format, SIP registration pattern, door-station mapping, and test-call checklist before dispatch. One method across all sites.

Why the 8 alarm inputs are not a footnote

The specification line that gets missed is the one ELV contractors should notice first: 8 alarm inputs. On a real site, the indoor station is not only a screen. It can sit near door contacts, sensors, call points, or other low-voltage signals that need to be brought into the access-control story. The i505 also provides 1 short-circuit output, 1 doorbell input, and 1 RS-485 interface marked reserved.

That gives the installer a better wall device for projects where the indoor station needs to react to more than one visitor call. In a villa, that may mean gate call, pedestrian door, and doorbell input. In a small building, it may mean reception, service entrance, and security desk coordination. In a hotel or serviced apartment, it gives the integrator options when room-side calling, back-of-house doors, or staff-only entrances need a neat indoor screen.

The value is not the number alone. It is the way those inputs reduce extra wall boxes. Fewer separate devices. Fewer labels. Less confusion for the user. For a Dubai fit-out where the consultant, contractor, landlord, and client all inspect the same wall, that matters.

Where we place the i505 in UAE projects

In villas, the i505 sits inside the main entrance, majlis corridor, kitchen access, or security room. It answers the gate, shows the visitor, and opens the lock when the wiring is designed for it. For compounds, the same model can be repeated across units, giving the contractor one indoor-station standard instead of mixing screens room by room.

In offices, it fits reception desks, unmanned entrances, internal secure doors, warehouse admin areas, and JAFZA or DIP facilities where the entrance is not always staffed. When paired with Fanvil SIP door phones and the site PABX, the call can ring the indoor station, a desk extension, or a guard phone based on the routing plan.

In hotels and serviced apartments, the i505/i505W is useful where a normal desk phone is not enough: staff entrances, service doors, apartment-style suites, security posts, and back-of-house areas. The Android platform and third-party app support give the project team more room than a locked single-purpose monitor, while the 7-inch size stays compact for wall mounting.

For buyers still comparing the full Fanvil range, use the Fanvil IP phone and intercom range guide to separate desk phones, door phones, indoor stations, paging devices, and wireless models by role. The i505 belongs in the indoor-station part of that design: the screen inside the building, not the panel outside the door.

Power and network truth for the i505

The Fanvil i505 uses 1 RJ45 10/100 Mbps Ethernet port. This is not a Gigabit device, and it does not need to be. An indoor station is not passing a workstation through the phone like a desk IP phone. It needs stable SIP signalling, clear audio, video from the door station or linked IP camera, and a clean path to the access-control side of the project.

Power can be done two ways: 12 VDC / 1 A adapter power, or PoE through 802.3af. For new UAE projects, PoE is usually the cleaner design. The indoor station is powered from the ELV cabinet or comms room, the wall stays neat, and the contractor avoids a visible power adapter next to the screen. For retrofit villas or small offices where PoE is not available, we quote the correct power adapter in the same supply.

For i505W projects, the Wi-Fi design must be treated like part of the intercom system, not as an afterthought. A speed test near the router is not enough. The wall position matters. The i505W supports dual-band 2.4 GHz and 5 GHz Wi-Fi, but if the signal is weak at the indoor-station wall, the visitor call becomes unreliable. For hotels, villas, and serviced apartments, we prefer wired i505 when the cable route exists, and i505W only where the signal has been checked.

Recent platform capabilities worth using on real projects

The i505 is not a plain monitor with a door button. Its Android 9.0 base gives project teams room for third-party application integration where the building design needs more than a simple SIP call screen. That matters in serviced apartments, residential communities, and mixed-use buildings where the indoor station may sit beside facility, security, or resident-service workflows.

It supports live viewing from linked IP cameras. In a Dubai villa, that can mean gate camera plus side entrance camera. In a warehouse office, it can mean main door plus loading entrance. In a hotel back-of-house area, it can mean service door visibility before staff open access. This detail is often missed when buyers compare indoor stations only by screen size.

The 8 alarm inputs are another reason the i505 suits ELV-led work. A normal desk phone cannot replace those input points. On the i505, the screen, SIP endpoint, video monitor, door-call device, and low-voltage input point sit in one indoor station. That gives integrators fewer wall devices to label and fewer user instructions to explain after handover.

Audio is also better than the price-list description suggests. G.722 and Opus support help speech sound clearer where the network and system allow it, and full-duplex hands-free audio with echo cancellation makes the conversation feel natural at the wall. For a guard room, reception counter, or apartment entrance, that means the user does not have to press a handset to their ear while watching the visitor video.

Platform compatibility and staging in Dubai

The Fanvil i505 registers as a SIP endpoint, so it fits into projects using 3CX, Grandstream UCM, Yeastar, Asterisk, and Fanvil SIP door stations. Where the project also uses Etisalat or du SIP services through a PABX, the i505 stays on the building-side SIP design as the indoor answer point. It is not a retail video doorbell. It is part of the IP telephony and access-control plan.

Before dispatch from Dubai, Vector Digital Systems can stage the indoor station against the project plan: SIP account entered, device name applied, network mode checked, door station mapped, video call tested, door-opening command checked, and call audio verified. For a villa, that may be one gate station and one indoor screen. For a building, it may be a batch of indoor stations with unit names, floor references, and common entrance mapping.

This staging step is why project buyers use us instead of ordering loose boxes. When 20 units are going to a building in Sharjah, 8 units to a serviced apartment floor in Dubai, or a villa package to Abu Dhabi, we want the installer spending time on mounting and verification, not typing SIP accounts on finished walls.

Fanvil indoor station comparison

For full range selection, keep the i505 near the centre of the design. It is not the smallest indoor station option, and it is not the biggest wall screen. It is the practical 7-inch Android choice for UAE projects where the buyer needs video intercom, door control, linked camera viewing, and a clean wall-mounted user point.

Pricing, supply, and project staging

Fanvil i505/i505W pricing depends on quantity, wired or Wi-Fi selection, accessories, staging scope, and delivery location. We do not publish fixed AED prices because most buyers are not buying one indoor station; they are buying a villa package, an apartment batch, a hotel service-door setup, or a building entrance system with door phones and indoor screens.

Frequently asked questions

Will the Fanvil i505 work with our 3CX / Grandstream UCM / Yeastar system?

Yes. The i505 registers as a SIP 2.0 endpoint and can be used with 3CX, Grandstream UCM, Yeastar, Asterisk, and Fanvil SIP door stations. We configure the SIP account, door station mapping, and test calls during staging before delivery.

Does the Fanvil i505 come with a power adapter, or do I need PoE?

The i505 supports PoE 802.3af and 12 VDC / 1 A power. For PoE sites, the indoor station can be powered from the network switch. For non-PoE sites, we quote the correct power adapter with the same order.

What does SIP mean on the i505 — can it make normal phone calls?

SIP means the i505 can register as an IP endpoint for door-entry and intercom calling. Its main job is to answer entrance calls, show video, call assigned extensions where required, and send the door-opening command. It is not sized like a multi-line receptionist desk phone.

Fanvil i505 vs i505W — what is the difference?

The project role is the same. The i505 is the wired Ethernet model. The i505W adds dual-band 2.4 GHz and 5 GHz Wi-Fi for retrofit walls where cabling is not practical. Use wired i505 wherever a network point is available.

Can the i505 open the door or gate?

Yes, when the door station, relay, lock, and access-control wiring are designed for it. We test the door-opening function during staging or installation so the screen, SIP call, and door release work together.

Can the i505 show IP camera video?

Yes. The i505 supports live viewing from linked IP cameras, subject to the camera format and project setup. This is useful for villa gates, service doors, reception entrances, warehouse access points, and hotel back-of-house doors.

Does Vector Digital Systems configure the i505 before delivery?

Yes. We stage the i505 before dispatch: SIP account, network settings, device name, door-station mapping, test calls, audio check, video check, and door-opening test where the project details are available.

Is VoIP legal in the UAE and will this work with Etisalat or du?

Business VoIP and SIP systems are used in the UAE under TRA regulation through licensed services and approved business networks. The i505 works on the building-side SIP system and can sit behind PABX deployments using Etisalat or du trunks.

Is the Fanvil i505 covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies Fanvil products with manufacturer warranty handling from Dubai. Warranty support depends on correct installation, approved power, and normal operating conditions.

Who is the supplier of Fanvil i505 in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply Fanvil i505/i505W indoor stations with staging, provisioning, installation, warranty handling, and supplier documentation for procurement teams, ELV contractors, PABX installers, and system integrators.

What is the best Fanvil indoor station for villa intercom projects in Dubai?

For a 7-inch wall screen with Android, SIP calling, door control, IP camera viewing, and wired or Wi-Fi selection, the Fanvil i505/i505W is a strong choice for Dubai villa intercom projects. If the client wants a larger screen, compare it with the Fanvil i507W.

Does Vector Digital Systems export Fanvil i505 from Dubai?

Yes. We export Fanvil indoor stations from Dubai to PABX installers, ELV contractors, and telecom resellers in Saudi Arabia, Oman, Qatar, Kuwait, Kenya, Tanzania, Uganda, Nigeria, Ghana, and Pakistan. FOB Dubai pricing is available with commercial invoice, packing list, and certificate of origin.

UAE coverage and installation

Vector Digital Systems supplies and installs Fanvil i505/i505W indoor stations across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support villa projects, apartment buildings, offices, hotels, warehouses, and free zone sites including JLT, DMCC, Business Bay, JAFZA, Dubai Internet City, DIP, and SAIF Zone. Multi-site rollouts can be staged under one engagement from Dubai.

MEA export from Dubai

For export buyers, Vector Digital Systems supplies Fanvil i505/i505W indoor stations from Dubai on FOB terms. We work with telecom resellers, ELV contractors, PABX installers, hospitality project contractors, and IT distributors across the Gulf, East Africa, West Africa, and South Asia. Export documentation can include commercial invoice, packing list, and certificate of origin, with Fanvil manufacturer warranty handled through the proper channel.
